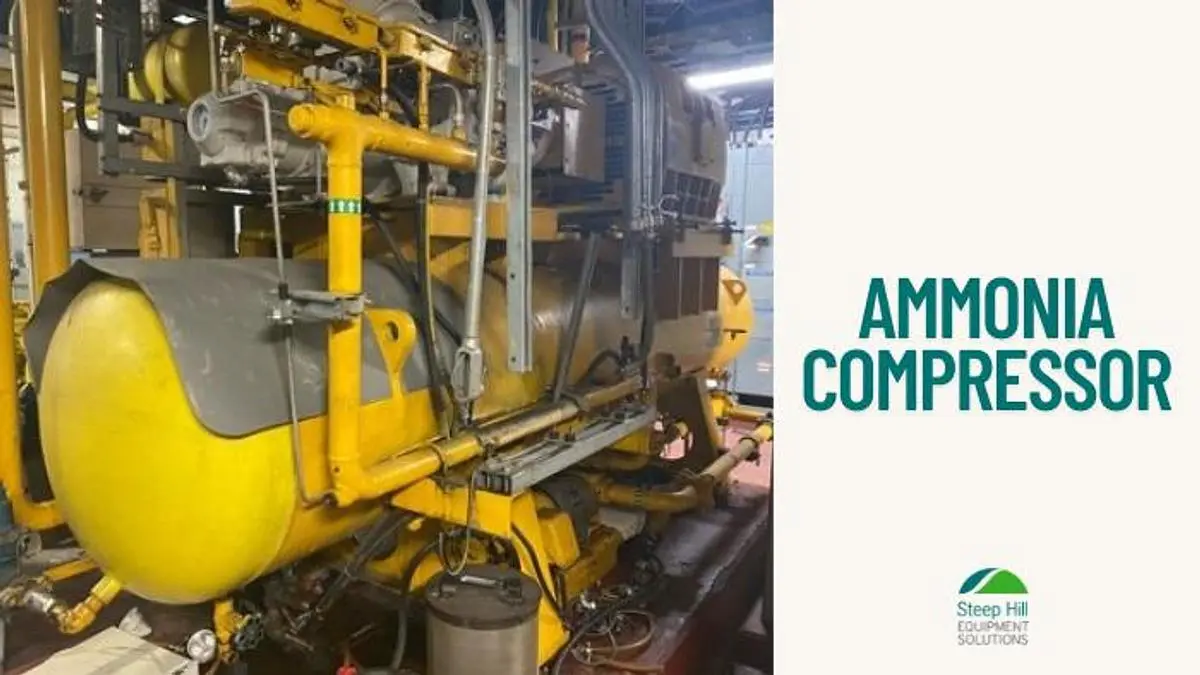

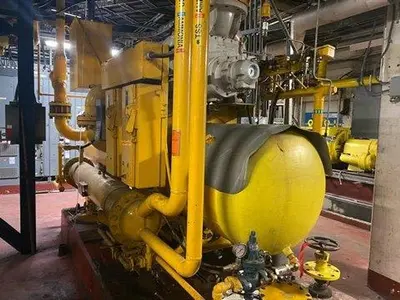

Frick 450 Hp Ammonia Compressor

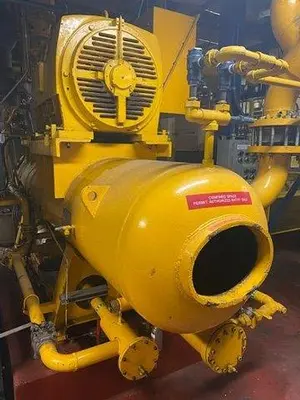

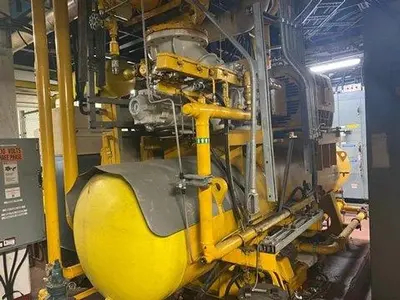

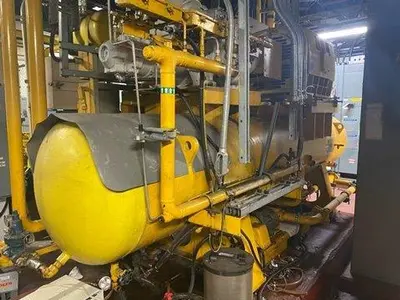

Shell Chamber System with Mycom 250 VMOS Compressor – 450 HP

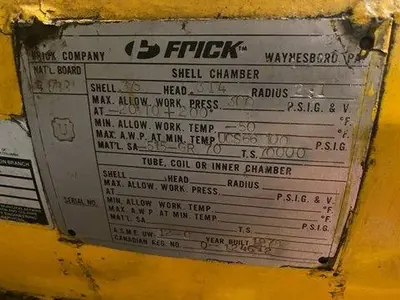

This high-capacity shell chamber system is engineered for demanding industrial refrigeration and cooling applications. Constructed with a shell thickness of 0.375" and a head thickness of 0.314", it features a 2:1 elliptical head design for strength and efficiency.

MAWP: 300 psig from -20°F to +200°F
Minimum Allowable Working Temperature: -50°F
MAWP at Minimum Temperature: 100 psig
Components Included:

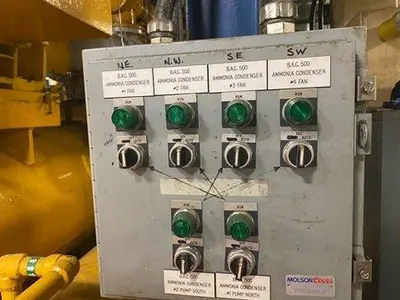

4 ammonia condensers
2 pumps

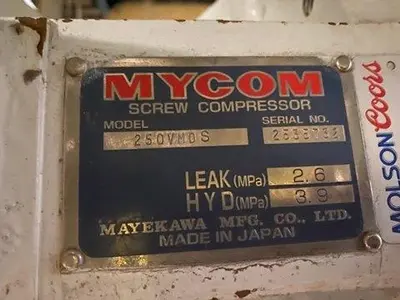

Mycom 250 VMOS rotary screw compressor

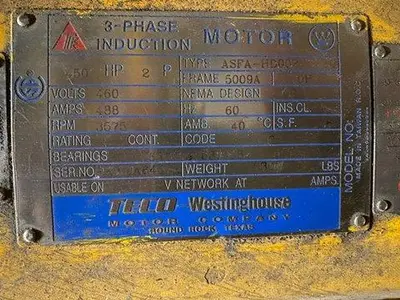

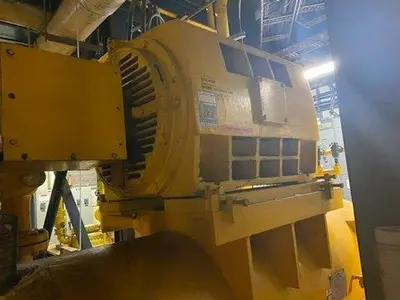

Motor: 450 HP TECO Westinghouse induction motor

Power: 460 V | 488 A | 450 Hp | 3 Ph
