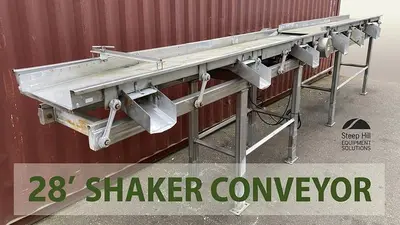

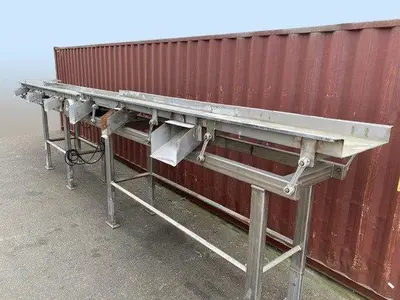

Stainless steel shaker conveyor, with two overlapping pans, stands 5 feet off the ground on solid steel posts.

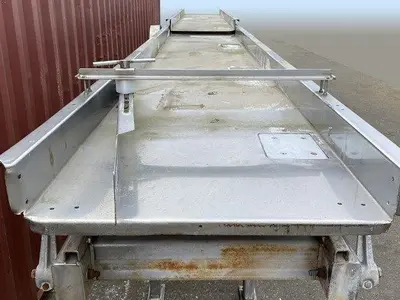

Pan 1: 174″L x 29.5″W, bottom at right is 75″ from ground.
Pan 2: 166″L x 29.5″W, bottom at left is 69.25″ from ground.
Sides: 4″- 4.5″H
Six discharge chutes, from right to left:
24.5″L x 16″W
24″L x 7″W
22″L x 9″W
20″L x 9″W
19″L x 9″W
One chute on the opposite side: 16″L x 10.5″W

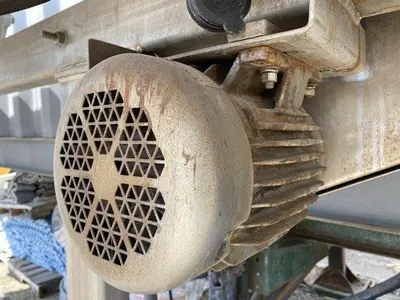

Powered by a Baldor Industrial 3 hp motor.
condition: Good
Dimensions (l x w x h): 340" x 50" x 80"

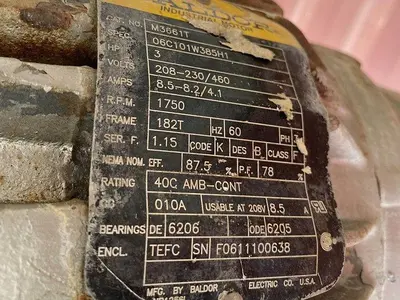

Power: 230/460 V | 8.2/4.1 A | 3 Hp | 60 Hz
Location code: DD2
Length (in): 340
Width (in): 50
Height (in): 80
