Conveyor belt: 97″L x 10″W
Cleats: 9″W x 1″H, spaced 7.5″ apart
Top chute: 9″L x 10.5″W, with 3.5″ sides, discharge height: 84″

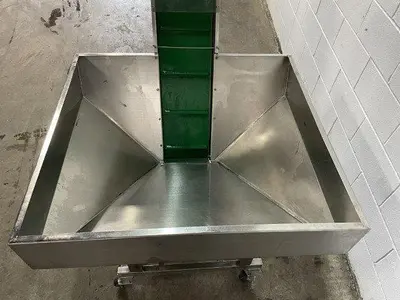

Hopper: 39″L x 35″W x 27″D, slope: 32″, straight side: 7″, infeed height: 34.25″
Hopper volume approx 60 gallons

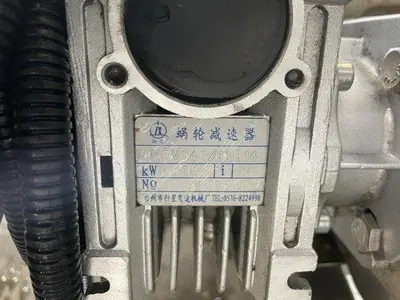

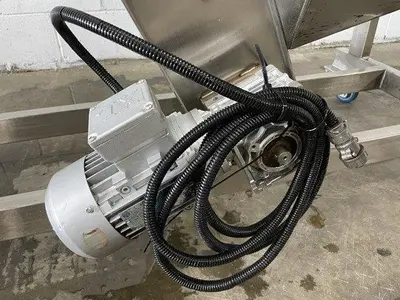

Conveyor powered by a Xinling 0.18 kW motor and gear reducer.

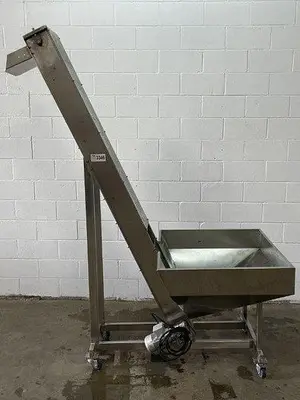

Dimensions (l x w x h): 82" x 40" x 96"
Location Code: KT

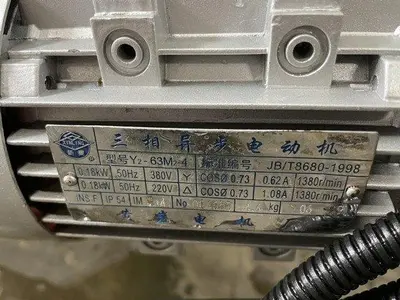

Power: 220 V | 1.08 A | 0.18 kW
Location code: CC5
Length (in): 82
Width (in): 40
Height (in): 96
