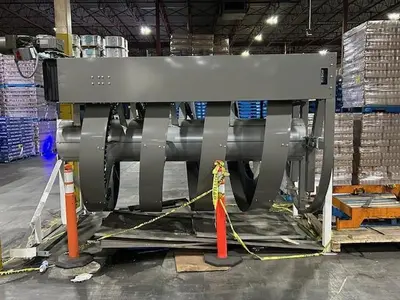

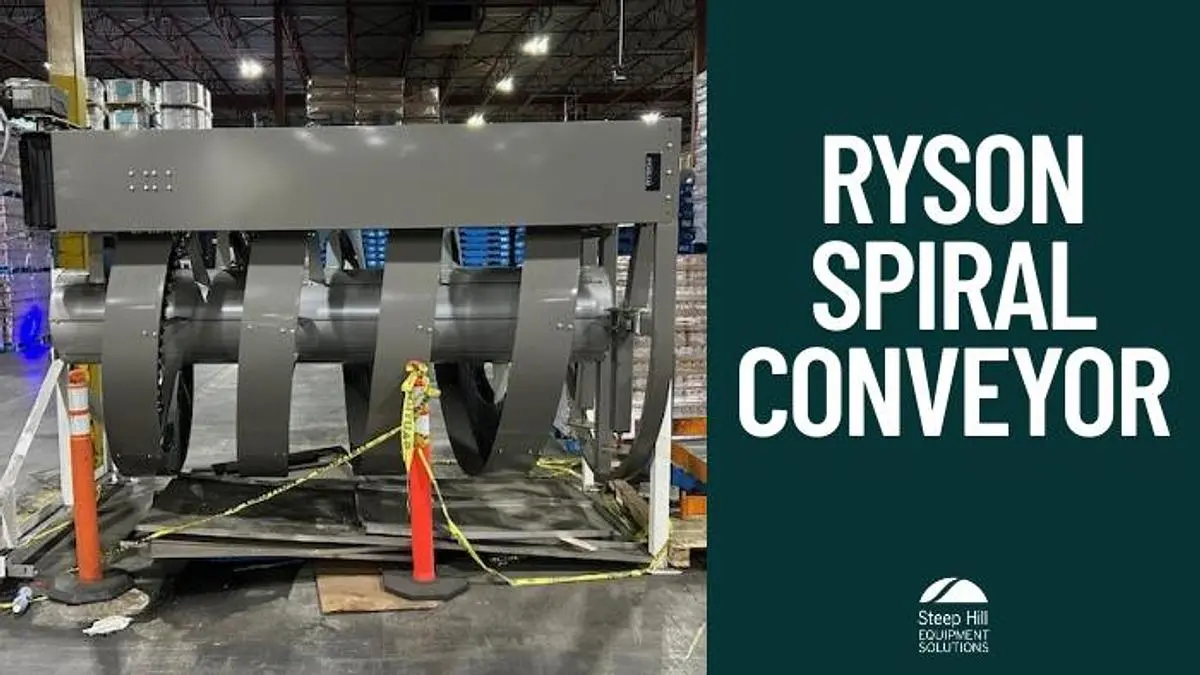

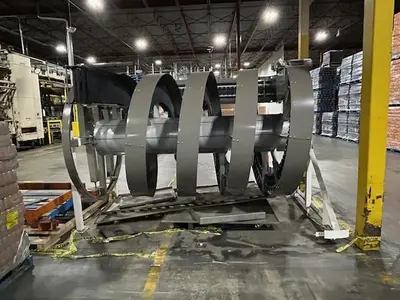

Ryson Spiral Conveyor
Specs:
1500: Indicates a centerline diameter of 1500 mm (approximately 4'-11")
400: Refers to a slat width of 400 mm (approximately 16")
A1-4: Designates a specific infeed/outfeed configuration and the number of turns (4 turns in this case)
Load Capacity: Up to 50 pounds per linear foot for the standard capacity models
Speed: Can operate at speeds in excess of 200 feet per minute (FPM)
Conveying Surface: Features overlapping nylon composite slats that provide an efficient and safe surface for various packaged products
Drive System: Requires only one drive motor, which saves energy and simplifies controls integration
Design: Known for a small footprint, which saves valuable floor space compared to conventional vertical conveyors
Operation: Intended for continuous operation, either inclining or declining, and can be optionally reversible. A Variable Frequency Drive (VFD) is required for proper operation
