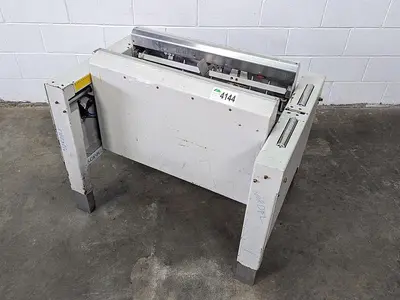

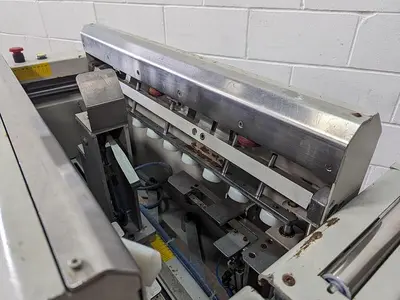

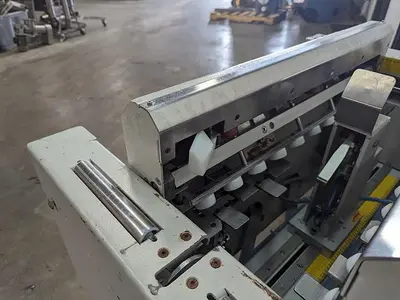

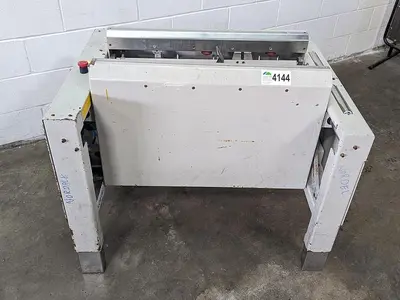

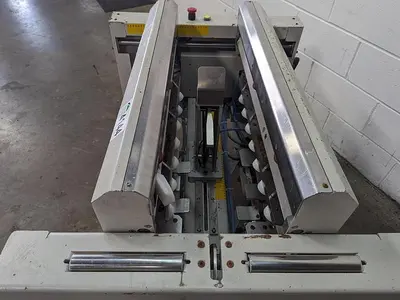

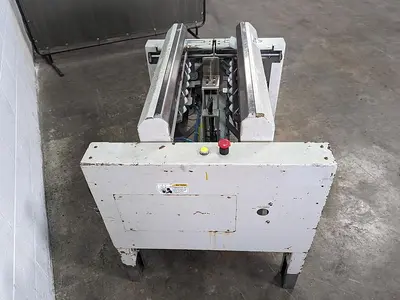

The Interpack™ Carton Folder, is also called a Case Erector or Uniform Pneumatic Flap Folder. It is designed to convert a basic uniform top and bottom case sealer into a uniform semi-automatic case packing system. In one process, the operator can form, fold, pack and seal a corrugated carton (case). After the machine folds the bottom 4 flaps, the carton is retained for packing and is passed through a fully automatic uniform case sealer.
Carton packing capacity: 40 lbs.
Manually adjusts length and width of uniform cartons.
Max carton size: 24"L x 20"W
Min carton size: 6"L x 6.5"W x 3.5"H
Location Code: D7
Dimensions (l x w x h): 41" x 30" x 35"
Carton packing capacity: 40 lbs.
