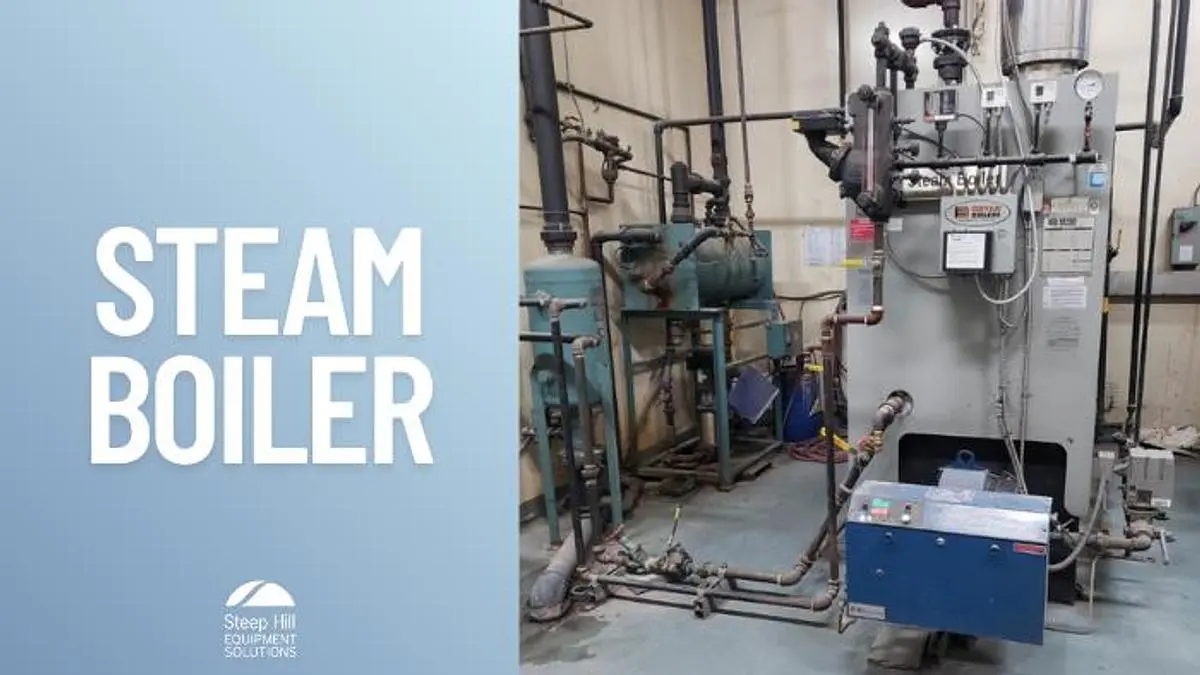

USED 2013 BRYAN STEAM, LLC CLM210-S-150-FDG

Natural Gas Steam Boiler with Feed Water and Blowdown Tanks
This natural gas steam boiler features a large full-size steam drum that ensures dry steam and a stable water level. Complete with a feed water tank, pump, and blowdown tank, it provides dependable performance for industrial steam applications.

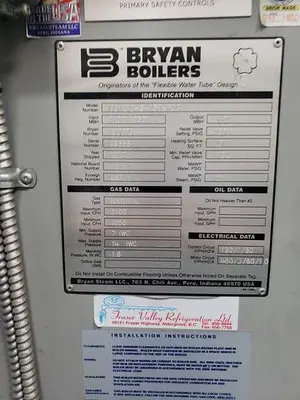

Specifications:

MAWP (Steam): 150 PSIG
Input: 2,100 MBH (2,100,000 BTUH) / 615 kW
Fuel: Natural Gas
Gas Data:
Max Input: 2,100 CFH
Min Input: 1,050 CFH
Supply Pressure: 7–14 in. WC
Manifold Pressure: 1.6 in. WC
Heating Surface: 251 sq. ft (23.3 m²)
Steam Output: 1,732 lbs/h (786 kg/h)

Keywords: Natural Gas Steam Boiler, Industrial Boiler, High-Pressure Steam System, Process Heating Equipment, Boiler with Feed Water Tank, Boiler with Blowdown Tank.

Power: 460 V | 1.0 A | 50 Hp | 3 Ph
* MAWP (Steam): 150 PSIG
* Fuel: Natural Gas
* Max Input: 2,100 CFH
* Min Input: 1,050 CFH
* Supply Pressure: 7–14 in. WC
* Manifold Pressure: 1.6 in. WC
* Steam Output: 1,732 lbs/h (786 kg/h)
