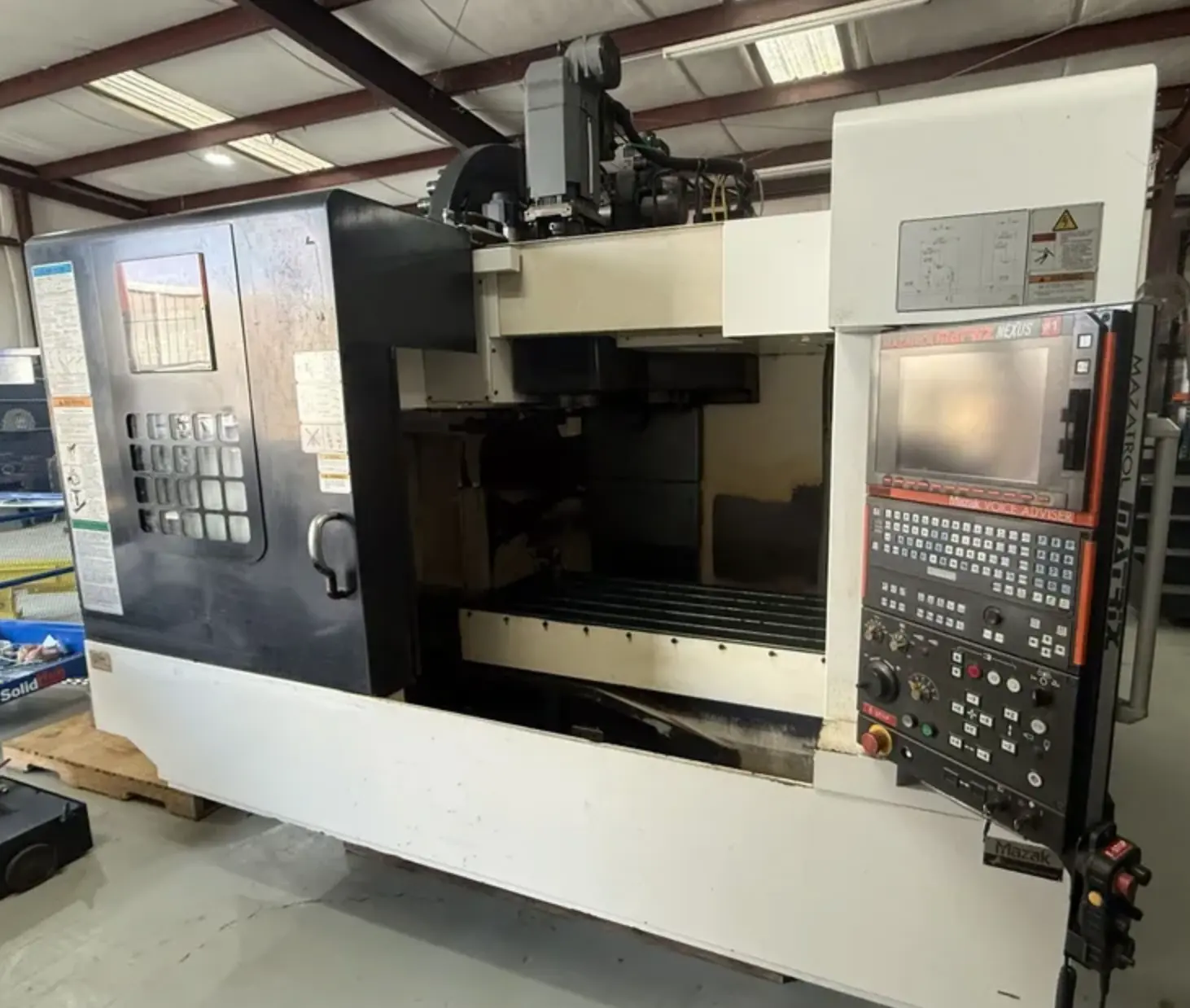

Used Vertical Machining Center, featuring Mazatrol Matrix Nexus control, USB port, Renishaw probing, and Jorgensen chip conveyor. Specs: 12,000 RPM, 25 hp, CAT 40 taper, 4-axis, rapid traverse 1417 IPM, 30-tool changer.
| X | 41.3" | 1,049 mm |
| Y | 20" | 508 mm |
| Z | 20" | 508 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 30 | 30 |
| Taper | CAT 40 | CAT 40 |
| Table-W | 21.6" | 548.64 mm |
| Table-L | 51.1" | 1,297.9 mm |
| # Axis | 4 | 4 |
| Control | CNC (Mazatrol Matrix Nexus) | CNC (Mazatrol Matrix Nexus) |
| Dimensions | 120″ x 112″ x 114″ High | 120″ x 112″ x 114″ High |
| Weight | 15200 lbs | 15200 lbs |
Table Size: 51.1" x 21.6"
Table Capacity: 2640 LBS
Rapid Traverse Rate (X/Y/Z): 1417 IPM
Tool Changer Style: Side-Mount Twin-Arm
Tool Changer Capacity: 30
Tool Change Time: 1.3 Seconds
Max Tool Length: 13.8"
Max Tool weight: 17 LBS
Machine Control: Mazatrol Matrix Nexus
USB Port
Renishaw Wireless Tool and Parts Probing System
Jorgensen Chip Conveyor System
