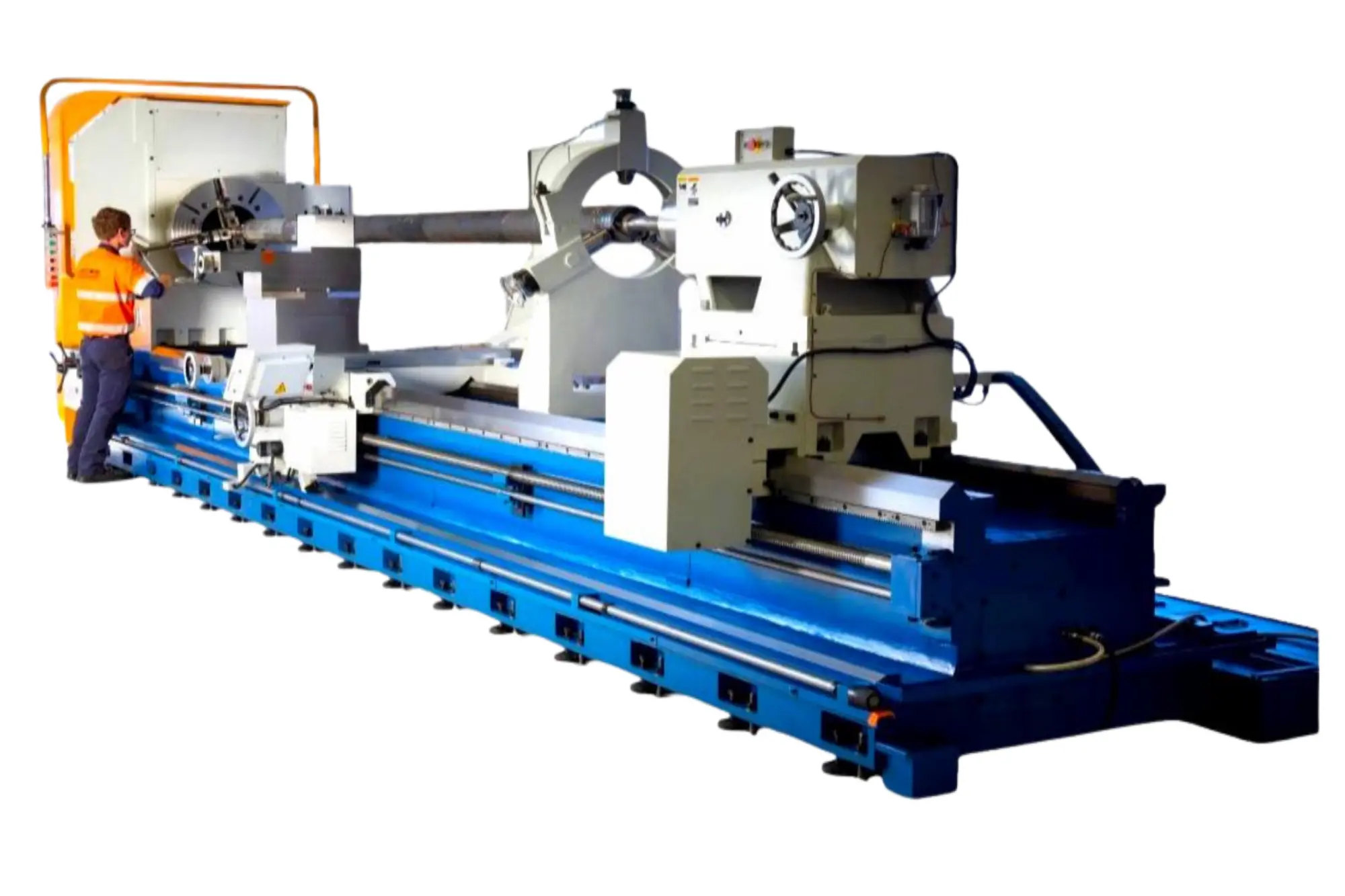

The BEMATO MOH2000.120.9 Heavy Duty Oil Country Lathe is engineered for large-diameter, long-length turning applications commonly found in oil & gas, energy, and heavy industrial manufacturing. Built with a 1,000 mm center height and an impressive 1,975 mm swing over bed, this machine is designed to handle oversized workpieces with exceptional stability and rigidity. Its 800 mm wide hardened and ground bed, combined with a no-gap structure for extended bed lengths, ensures consistent accuracy and structural integrity even over long machining distances.
Designed for large pipe and shaft machining, the MOH2000 features a Ø230 mm spindle bore with an A2-15 spindle nose, allowing it to accommodate large-diameter workpieces and oil country tubular goods with ease. The 30 HP main spindle motor delivers strong torque across a 6–400 rpm speed range, making it suitable for heavy roughing and controlled finishing operations. Precision threading capabilities are supported with a wide selection of metric and inch threading ranges, while hardened guideways and precision lead screws ensure smooth and reliable longitudinal and cross feeds.
The machine is equipped with a heavy-duty MT#7 tailstock, featuring a Ø200 mm quill diameter and 300 mm quill travel, providing robust support for long workpieces during machining. With generous cross and compound travels, large tool capacity, and rapid traverse on the X and Z axes, the BEMATO MOH2000.120.9 delivers both power and control for demanding heavy-turning applications. Its massive construction and industrial-grade components make it an ideal solution for manufacturers requiring a reliable, high-capacity lathe for large-scale production and repair work.
| CENTER HEIGHT | 1,000 mm | 39.37" |
| SWING OVER BED | 1,975 mm | 77.756" |
| SWING OVER CROS SLIDE | 1,630 mm | 64.173" |
| BED WIDTH | 800 mm | 31.496" |
| DISTANCE BETWEEN CENTERS | 12,000 mm | 472.44" |
| SPINDLE BORE | 230 mm | 9.0551" |
| SPINDLE NOSE | A2-15 | A2-15 |
| SPINDLE SPEED | 400 RPM | 400 RPM |
| QUILL DIAMETER | 200 mm | 7.874" |
| QUILL TAPER | MT7 | MT7 |
| TAILSTOCK QUILL TRAVEL | 300 mm | 11.811" |
| CROSS TRAVEL | 780 mm | 30.709" |
| COMPOUND REST TRAVEL | 350 mm | 13.78" |
| TOOL SIZE | 50 X 50 MM | 50 X 50 MM |
| LEAD SCREW DIAMETER | 50 mm | 1.9685" |
| MAIN SPINDLE MOTOR | 30 hp | 22.4 kW |
| OIL PUMP | 12 W | 12 W |
| Weight | 2700 kg | 2700 kg |
MAIN MOTOR
SPINDLE MAGNETIC BRAKE
AUTO LUBRICATION SYSTEM
COOLANT SYSTEM
4-WAY TOOL POST
X, Z AXES RAPID TRAVERSE
WORK LIGHT
METER / INCH COMMUNITY GEAR BOX
GUIDEWAYS HARDENED, GROUND WITH WIPERS
LIVE CENTER MT7 (7 TONS CAPACITY BETWEEN CENTERS)
TOOL BOX WITH TOOLS
LEVELING BOLTS & PADS
OPERATION & SERVICE MANUAL
