USED 2013 UMPACKT SV-20MR

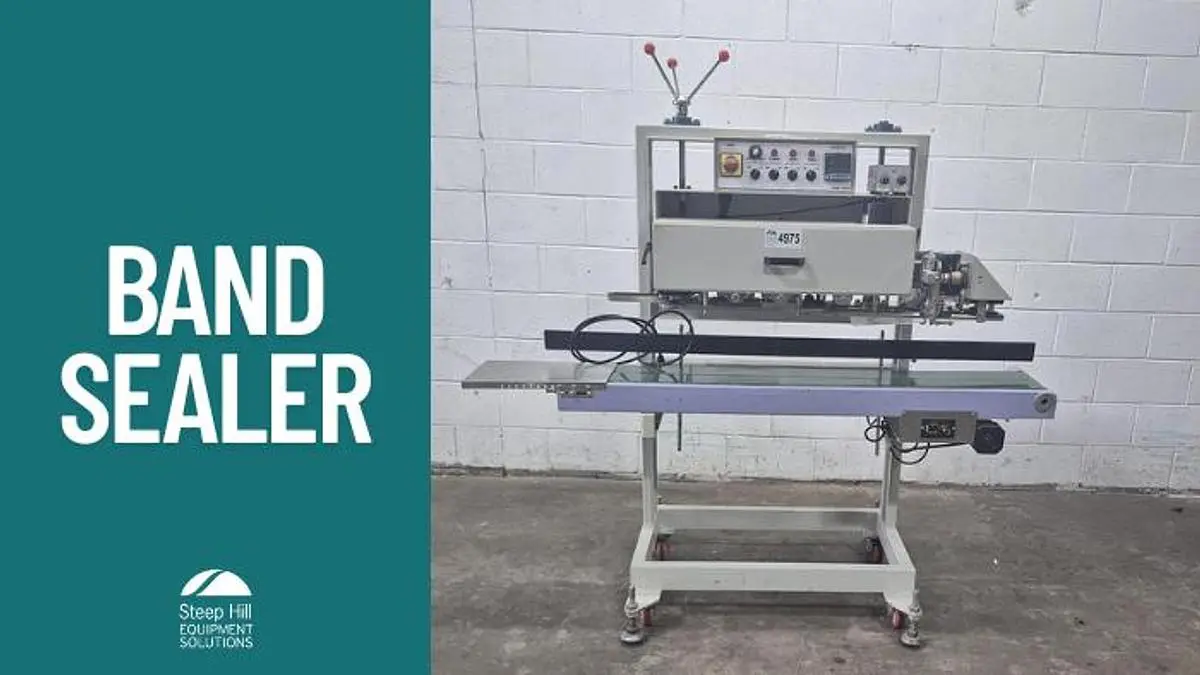

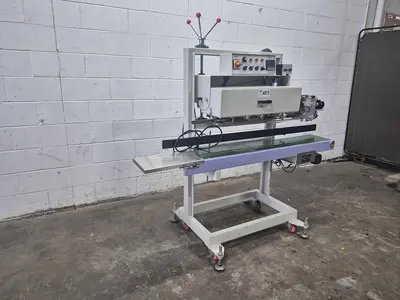

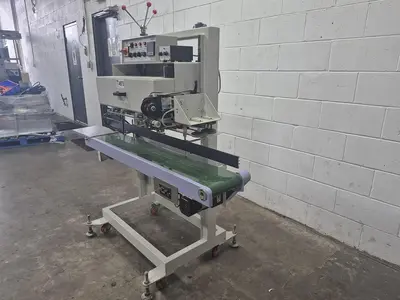

Horizontal Continuous Band Sealer – Steep Hill Equipment
The SV-20M Horizontal Continuous Band Sealer is designed for efficient, high-quality sealing of bags in continuous production environments. Its adjustable sealing head (0–45°) provides excellent visibility and ease of operation, while the stable, reinforced conveyor system supports heavy packages and prevents belt deviation.
Specifications:

Power Supply: AC 1 Phase 110V or 220V, 50/60 Hz
Sealing Width: 10 mm (optional: 5 / 15 / 20 mm)
Conveyor Width: 200 mm (customizable)
Sealing Speed: 5–12 m/min (variable)
Temperature Range: 0–399°C
Conveyor Speed: 0–12 m/min (variable)
Maximum Load Capacity: 15 kg
Bag Thickness: Up to 0.7 mm
Bag Length Range: 60–800 mm
Operation Direction: Left to Right (standard)

Features:

Adjustable sealing head (0–45°) for better visibility and convenience
Durable construction for continuous operation

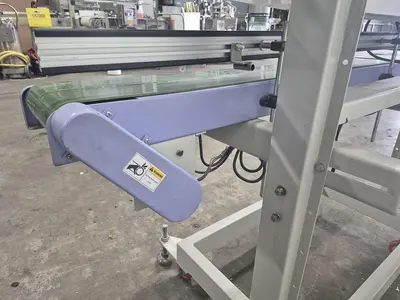

Conveyor guide strip prevents belt deviation
Suitable for integration with production lines

Keywords: Horizontal Band Sealer, Continuous Sealing Machine, Bag Sealer, Packaging Equipment, Heat Sealer, SV-20M, Industrial Sealer

Location Code: Showroom
Power: 110 V | 1 Phase | 60 Hz
Dimensions (l x w x h): 66.5" x 30.5" x 66"
