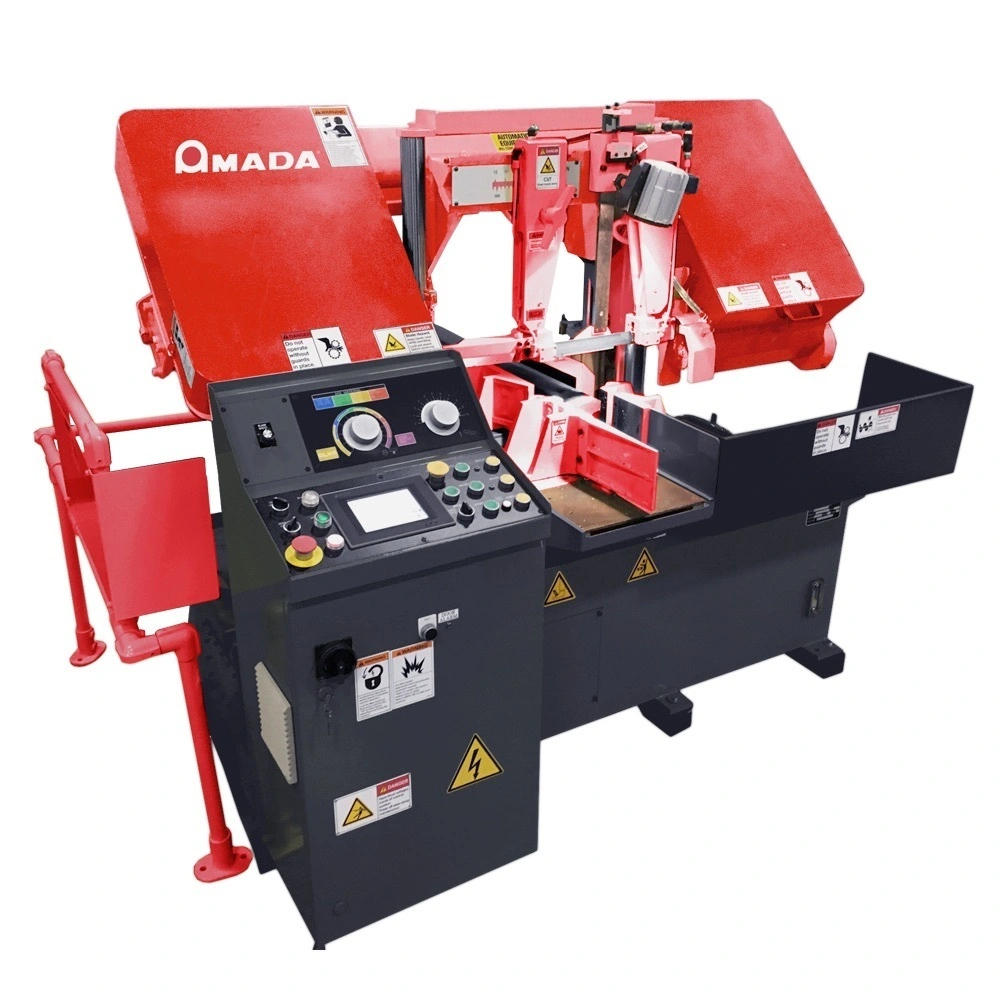

NEW AMADA HFA-260P
Overview
The Vision of Precision
• Heavy-Duty
• Double Column
• High Speed
• Hydraulic
• 5 H.P.
• 1-1/4” Blade
• Programmable Control
FEATURES
• Split Front Vise
• HMI Touch Screen Control
• Automatic Chip Removal
• Bi-Directional Shuttle Vise
• Full Stroking Hydraulic Vises
• Robust Rigid Dual Column Design
• Fully Adjustable Hydraulic Down Feed
• Automatic Height Selection with Fast Approach
Specs
Cutting Capacity:
Round (Diameter) 10″ 250 mm
Rectangle (W x H) 10″ x 10.25″ 250 x 260 mm
Saw Blade:
Blade Size (L x T x W) 12′-11″ x 1.34″ x 0.043 3920 x 34 x 1.1 mm
Blade Speed 65 – 330 SFPM 20-100 m/min by Inverter
Tension Control Hydraulically Controlled
Power Requirements:
Power Supply Voltage AC230V +- 10%
3PH, 60Hz, Required at factory voltage setting
Cutting Fluid Pump @@ kVA
Motors:
Saw Blade 5 HP 3.7 kW
Cutting Fluid Pump 0.25 HP 0.75kW
Hydraulic Pump 1.0 HP 0.75 kW
Blade Control:
Top Limit Setting Automatic Setting with Fast Approach Feeler
Cutting Control Hydraulic Pressure & Flow Control Valve
Fluid Capacities:
Coolant 22.5 gal 85 liters
Hydraulic Fluid 23.8 gal 90 liters
Hydraulic Pressure Setting 427 psi 3.0 MPa (30 kgf/cm
Pressure Settings:
Hydraulic 427 PSI 30kg/cm
Blade Tension 30,000 – 32,000 –
Gauge Pressure 171 – 213 PSI 12 – 15 kg/cm2
Material Index
Index Mechanism Shuttle Vise
Stroke 19.7″ 500 mm
Length 0.39″ – 999″ 10 – 25000 mm
# of Input Block 1-100
# of Input Station 1-20
# of Cut-Off Pieces 1-999
Remnant Length 2.75″ plus length of parts 70 mm plus length of parts
Fluid Capacities:
Coolant 22.5 gal 85 liters
Hydraulic Fluid 23.8 gal 90 liters
Hydraulic Pressure Setting 427 psi 3.0 MPa (30 kgf/cm
Machine Dimensions (W x L x H):
Head Up Position 86.9″ x 81.3″ x 57.7″ 2207 x 2065 x 1465 mm
Head Down Position 86.9″ x 81.3″ x 57.7″ 2207 x 2065 x 1465 mm
Chip Disposal Chip Conveyor
Table Height 26″ 663 mm
Machine Weight 3860 lbs 1750 kg
