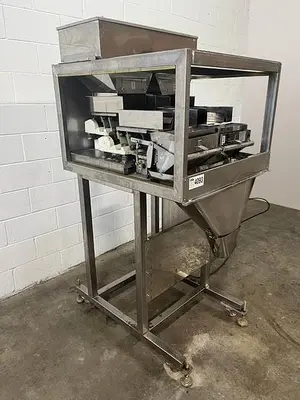

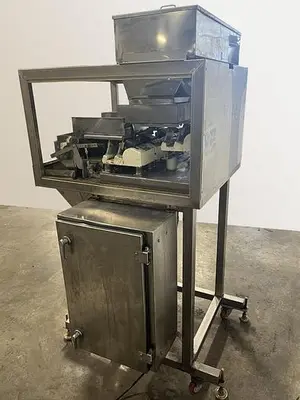

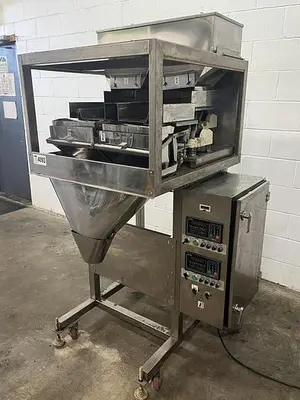

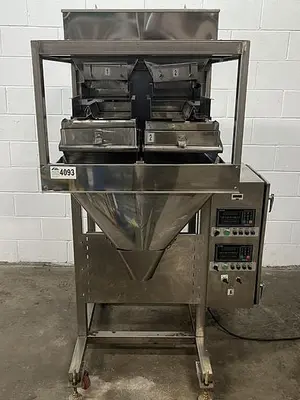

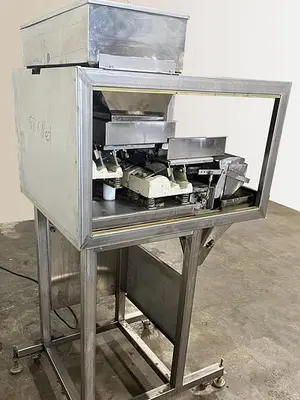

A dual lane vibratory net weight filler designed for bulk filling buckets, one at a time.

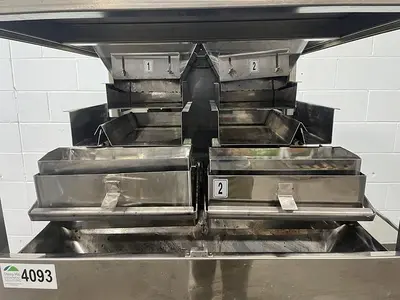

Each lane is fed by a divided hopper on to a single-pan vibratory feeder which feeds a two-pan vibratory feeder, and into a small net weigh hopper. From there it goes into the bucket filling hopper.

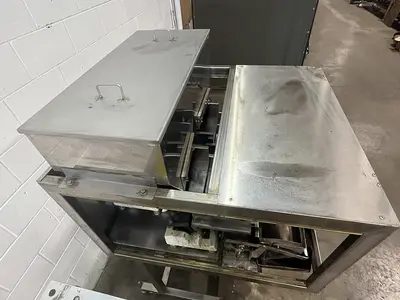

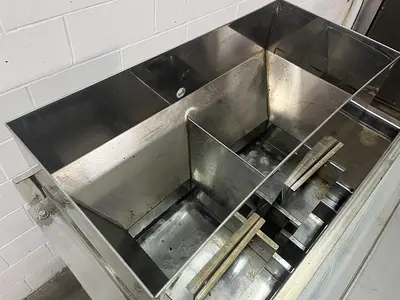

Divided hopper, each side: 14"L x 10"W x 13"D, OA dimensions: 30"L x 13"W x 17.5"D
Single-pan vibratory feeders: 12"L x 9.5"W

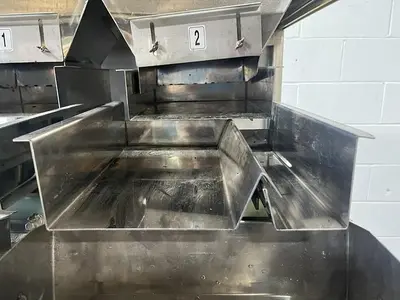

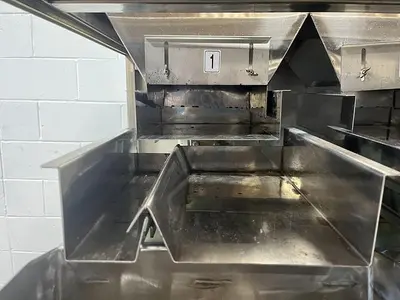

Two-pan vibratory feeders: 12"L x 6.5"W | 12"L x 2.5"W
Net weigh hoppers: 12"L x 5.5"W x 8"D

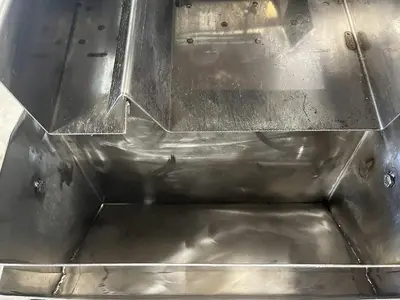

Filling hopper: 29"L x 9.5"W x 21"D

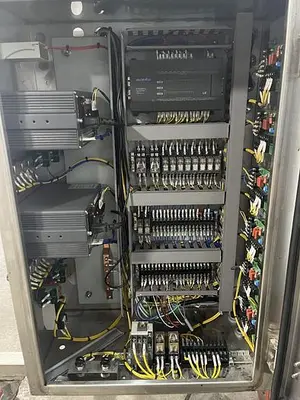

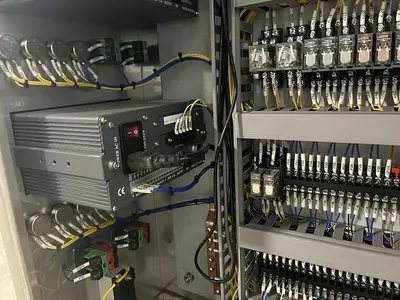

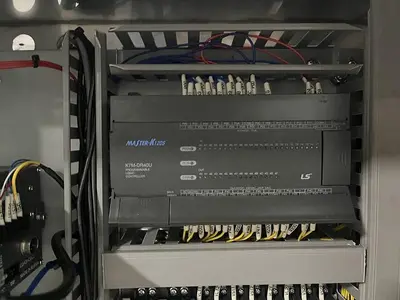

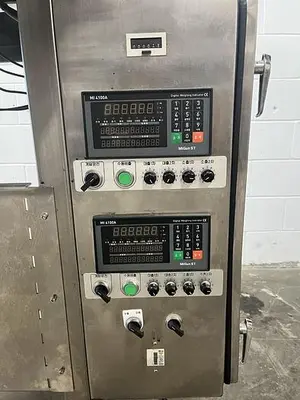

Comes with two MiGun MI 4100A digital weighing indicators, and one Master-K120S K7M-DR40U programmable controller.
Tested and working condition.
Location Code: 1C2
Voltage: 220
Hz: 60
