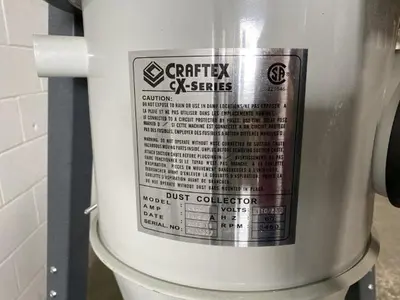

USED 2012 CRAFTEX CX401

A two-stage cyclone dust collector designed to collect wood sawdust. Previously used for clay dust.
Cyclone funnel – top diameter: 13″, straight side: 9.5″, slope: 15.25″, bottom diameter: 7″

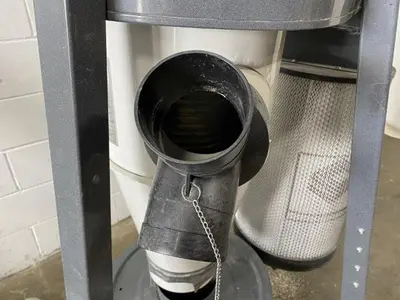

Y-inlet: 4″ diameter

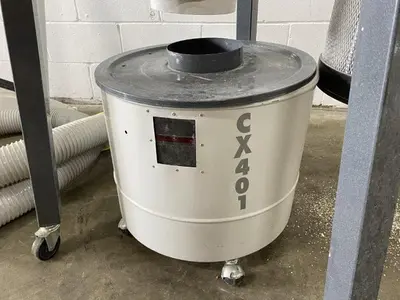

Collection drum: 19.5″ diameter x 15″ deep, inlet: 7″ diameter, volume: 20 gallons
Canister filter: 15″ diameter x 25.5″H, filtration: 1 micron, surface area: 3.8 m²
Suction capacity: 763 CFM

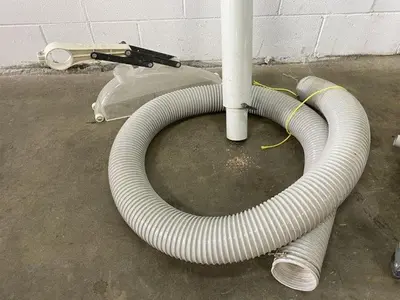

Extra hose, and pipe available.
Digital manual available upon request.

Dimensions (l x w x h): 72" x 42" x 63.5"
Includes manual: Yes
Power: 110/220 V | 13/6.5 A | 60 Hz
Location code: USA
Length (in): 72
Width (in): 42
Height (in): 63.5
