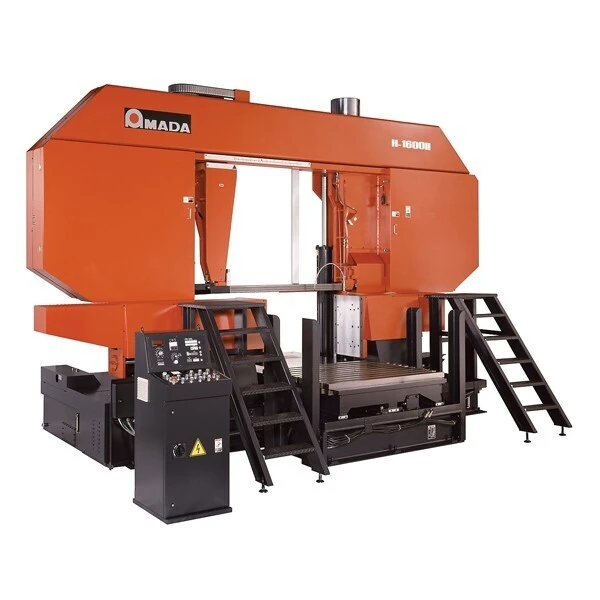

NEW AMADA H-1600II

Semi-Automatic Metal Cutting Band Saw

• 20 HP
• 3″ Blade
• Chip Conveyor
• CNC Lite Cutting Control
• Light Beam Marking
• Variable Blade Running Speed Drive
• Vibration Prevent Roller

FEATURES
• Hydraulic Vise
- Prevents material movement while sawing
- Easy set-up
- Positive clamping on the full range of capacity
• Dual Cut Control System
- Combines with fine feed roller for accurate material indexing
- Quick and easy set-up
- Blade feed controlled by both pressure and flow
- Maximum blade life in all cutting applications
- Easy set-up with reference cutting rate system
• Semi-Automatic Indexing
- Quick and easy indexing with fine feed roller

Cutting Capacity:
Round (Diameter) 23.62″ – 63″ 600 – 1600 mm
Rectangle (W x H) 63″ x 63″ 1600 x 1600 mm

Work Load Capacity 88,200 lbs 40,000 kg

Saw Blade:
Blade Size (L x T x W) 50’10” x 0.063″ x 3″ 15500 x 1.6 x 80 mm
Blade Speed 39.4 – 196.8 ft/min by Inverter 12-60 m/min by Inverter
Tension Control Hydraulic

Blade Control:
Top Limit Setting Automatic Setting with Quick Approach Feeler
Cutting Control CNC-Light, Hydraulic Flow Control Valve with Stepping Motor

Vise Operation:
Type Single Vise
Control Hydraulic Full-Stroke Cylinder

Motors:
Saw Blade 20 HP 15 kW
Hydraulic Pump 7.5 HP 5.5 kW
Cutting Fluid Pump 1/2 HP 0.4 kW

Power Requirement:
Power Supply Voltage AC220V±10%, 3 PH, 60 Hz All Other Voltages Require Transformer
Power Requirement 35 kVA

Cutting Fluid:
Tank Capacity 92.5 gal 350 liters
Pump Type Electric

Hydraulic:
Tank Capacity 66.1 gal 250 liters
Pressure Setting 1045 psi 7.5 MPa (73.5 kgf/cm2)

Chip Disposal Chip Conveyor

Material Index:
Index Mechanism Table Feed, Manual Operation
Stroke 70.9″ by Hydraulic 1800 mm by Hydraulic
Length N/A
Number of Input Station N/A
Number of Cut-Off Pieces N/A
Remnant Length N/A

Machine Dimensions (W x L x H)
Head-Up Position 291.6″ x 192.7″ x 208.9″ 7407 x 4895 x 5307 mm
Head Down Position 291.6″ x 192.7″ x 169.8″ 7407 x 4895 x 4314 mm

Table Height 31.9″ 810 mm

Machine Weight 66,200 lbs 30,000 kg
