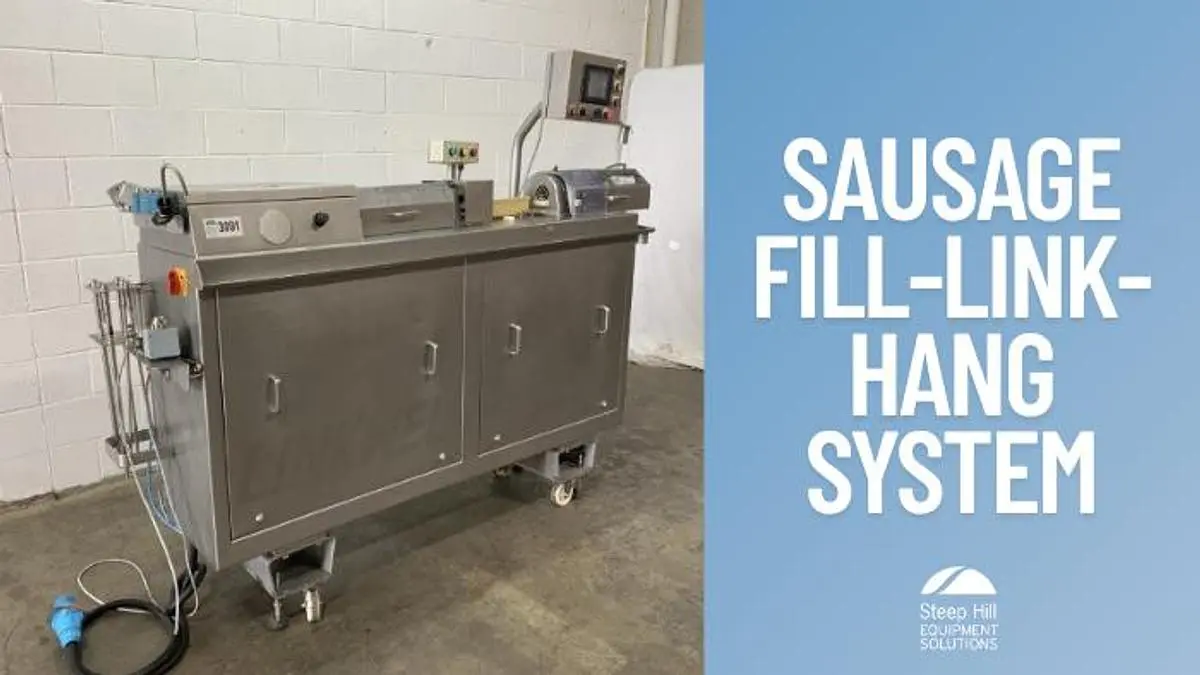

Equal Length, Weight & Diameter Sausage Fill-Link-Hang System – 3091 Filler & Linker + 3090 Hanging Conveyor
This automated sausage system delivers consistent link size and weight, optimizing production efficiency for a variety of casing types including sheep, hog, collagen, and cellulose.

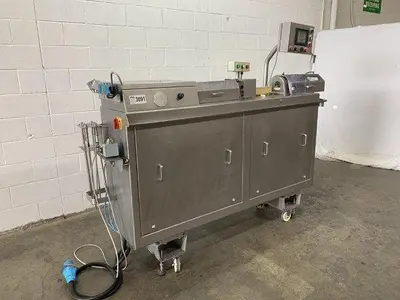

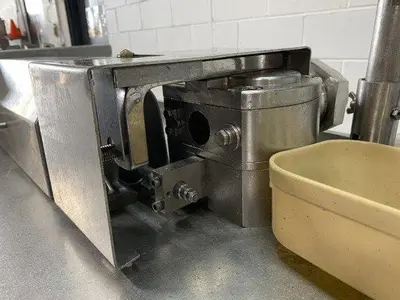

3091 Filler & Linker
High-speed performance:
• Natural casing – up to 800 pcs/min
• Artificial casing – up to 7,000 lbs/hr
Compatible with multiple casing types for flexible production.

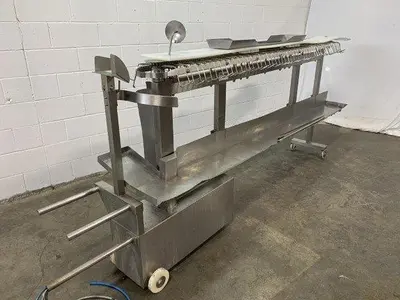

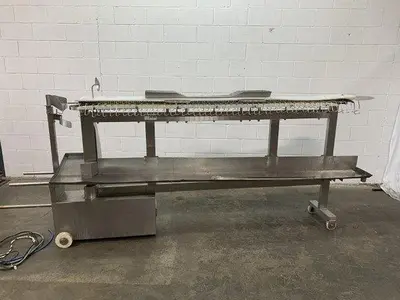

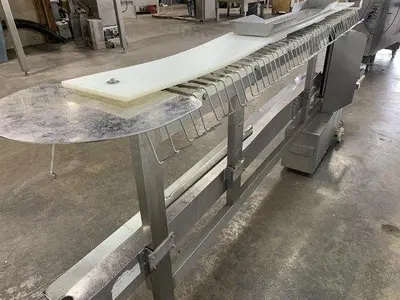

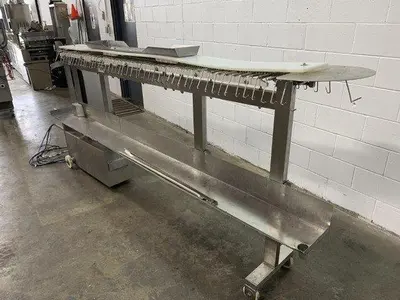

3090 Hanging Conveyor
Linking chain belt: 99″L

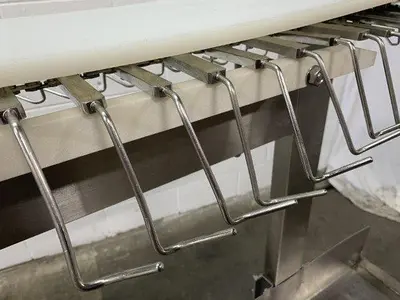

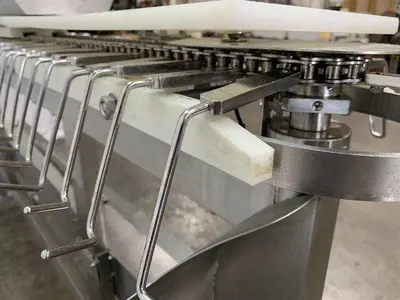

Round bar hooks with 4″ shafts and 2″ hooks accommodate various casing types
Directly connects to the control panel side of the Filler & Linker for seamless integration.

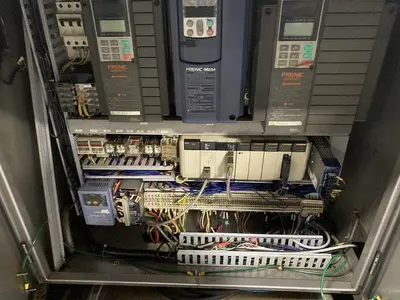

Power & Control

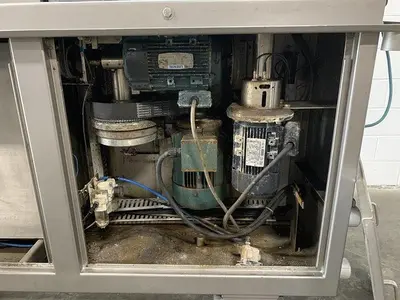

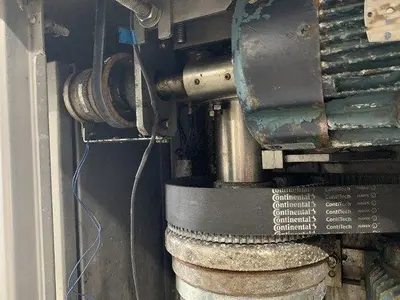

Powered by (3) Leeson 1 HP motors
Equipped with (2) Frenic 5000G11 inverters, a Frenic-Mega AC drive, and a Hitachi L100 controller
Managed via an Omron CQM1H controller

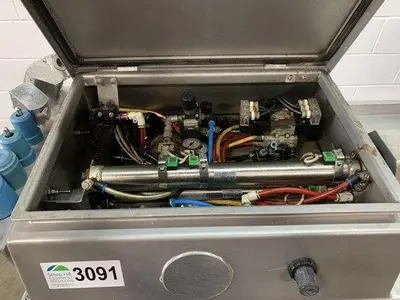

Includes (2) CKD small bore cylinders for precise pneumatic control
Ideal for high-volume sausage production with accuracy and consistency across all link parameters.
Dimensions (l x w x h): 225" x 30" x 72"
Weight: 700kg
Power: 230/460 V | 3.0/1.5 A
Location code: D8
Weight (kg): 700
Length (in): 225
Width (in): 30
Height (in): 72
