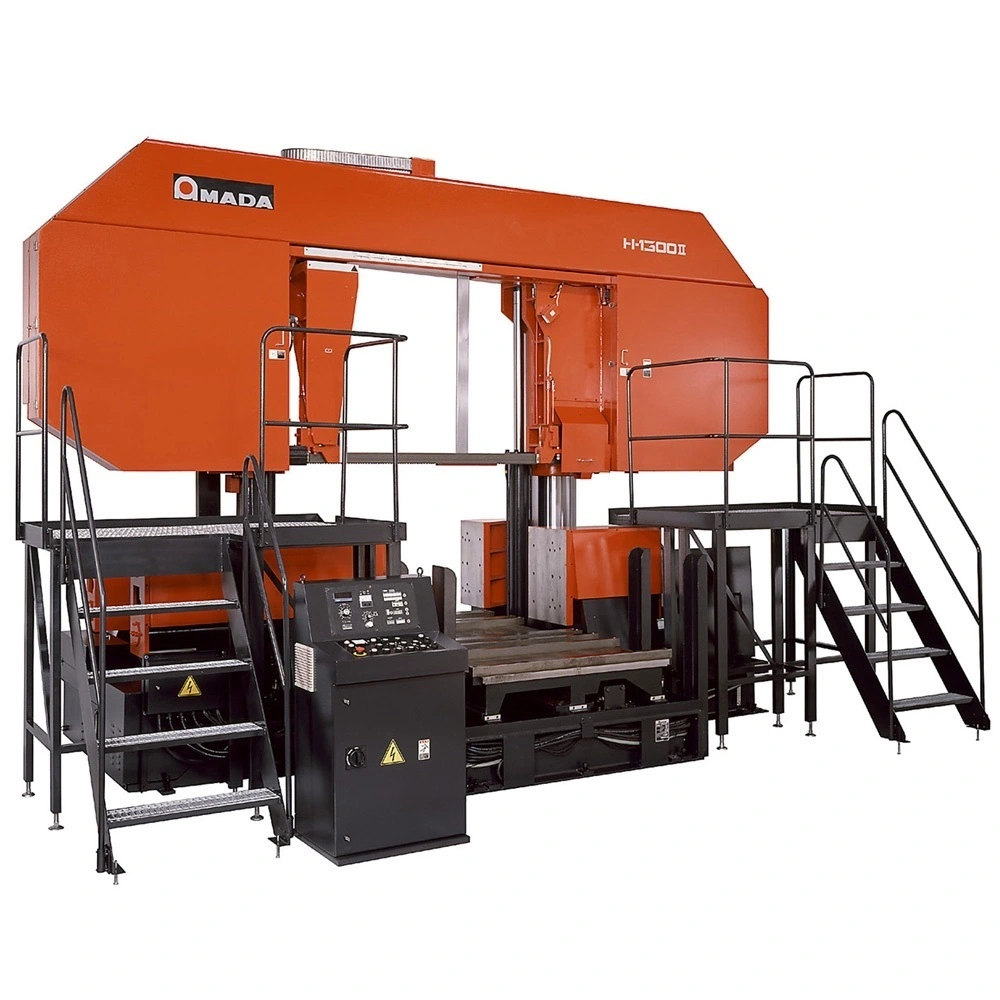

NEW AMADA H-1300II

Semi-Automatic Metal Cutting Band Saw

• 20 H.P.
• 3″ Blade
• Light Beam Marking
• Motion Detector
• Variable Speed Drive

FEATURES
• Hydraulic Vise
- Prevents material movement while sawing
- Easy set-up
- Positive clamping on the full range of capacity
• Dual Cut Control System
- Combines with fine feed roller for accurate material indexing
- Quick and easy set-up
- Blade feed controlled by both pressure and flow
- Maximum blade life in all cutting applications
- Easy set-up with reference cutting rate system
• Semi Automatic Indexing
- Quick and easy indexing with the fine feed roller

Cutting Capacity:
Round (Diameter) 22.4″ – 52″ 570 – 1300 mm
Rectangle (W x H) 23.6″ x 23.6″ – 52″ x 52″ 600 x 600mm – 1300 x 1300 mm

Work Load Capacity 37,478 lbs 17,000 kg

Saw Blade:
Blade Size (L x T x W) 40’4″ x 0.063″ x 3″ 12300 x 1.6 x 80 mm
Blade Speed 50-230 ft/min by Inverter 15-70 m/min by Inverter
Tension Control Hydraulic

Blade Control:
Top Limit Setting Automatic Setting with Quick Approach Feeler
Cutting Control CNC-Lite, , Hydraulic Flow Control Valve with Stepping Motor

Vise Operation:
Type Main Vise
Control Hydraulic Full-Stroke Cylinder

Motors:
Saw Blade 20 HP 15 kW
Hydraulic Pump 5 HP 3.7 kW
Cutting Fluid Pump 1/2 HP 0.4 kW

Power Requirement:
Power Supply Voltage AC220V±10%, 3 PH, 60 Hz All Other Voltages Require Transformer
Power Requirement 28 kVA

Cutting Fluid:
Tank Capacity 73.9 gal 280 liters
Pump Type Electric

Hydraulic:
Tank Capacity 52.8 gal 200 liters
Pressure Setting 1080 psi 7.6 MPa (76 kgf/cm2)

Chip Disposal Chip Conveyor

Material Index:
Index Mechanism Table Feed, Manual operation
Stroke 70.8″, by Hydraulic 1800 mm, by Hydraulic
Length NA
Number of Input Station NA
Number of Cut-Off Pieces NA
Remnant Length NA

Machine Dimensions (W x L x H)
Head-Up Position 220.4″ x 171.6″ x 160.8″ 5597 x 4360 x 4084 mm
Head Down Position 220.4″ x 171.6″ x 136.9″ 5597 x 4360 x 3479 mm

Table Height 27.5″ 700 mm
Machine Weight 40,790 lbs 18,500 kg
