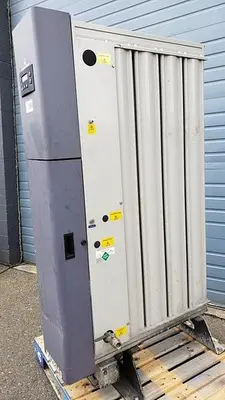

The MaxiGas generator provides an on-demand source of nitrogen gas, used primarily to remove oxygen from products and/or processes.
It offers a cost-effective, reliable and safe solution for medium to large nitrogen requirements.
Can operate from a standard factory compressed air supply
Delivers 5% down to 10 ppm oxygen content, without the need for additional purification
Built-in oxygen analyzer for continuous purity monitoring
Digital and analogue outputs for remote monitoring
Alarm capabilities

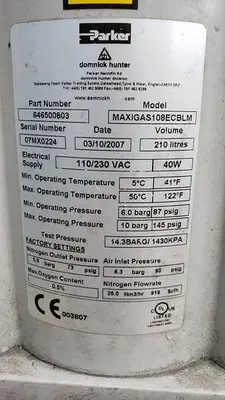

Volume: 210 litres
Min. operating temperature: 5°C / 41°F
Max. operating temperature: 50°C / 122°F
Min. operating pressure: 6 barg / 87 psig
Max. operating pressure: 10 barg / 145 psig
Nitrogen flow rate: 26.0 Nm3/hr – 919 Scfh
1894 CC6
condition: Good
Dimensions (l x w x h): 42" x 23" x 75"
Power: 110/230 VAC, 40W
Location code: CC6
Length (in): 42
Width (in): 23
Height (in): 75
