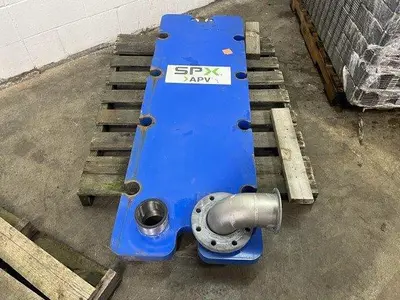

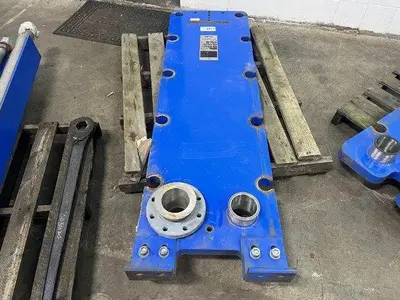

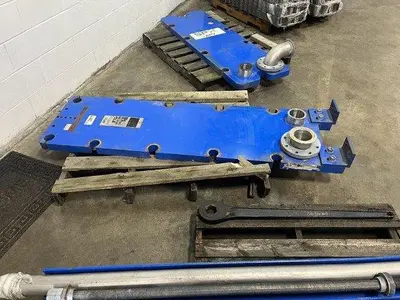

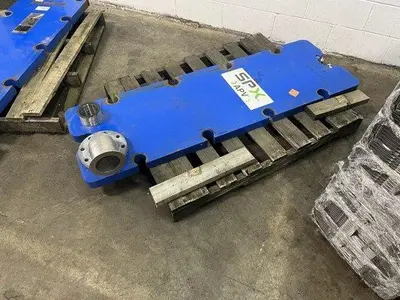

USED 2013 SPX FLOW | APV R5 M-16

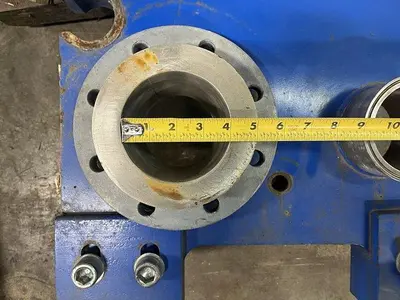

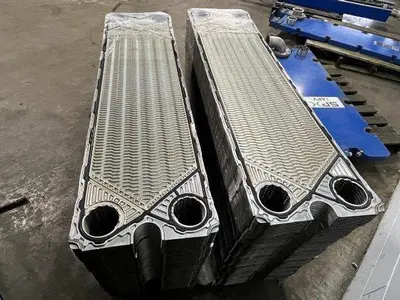

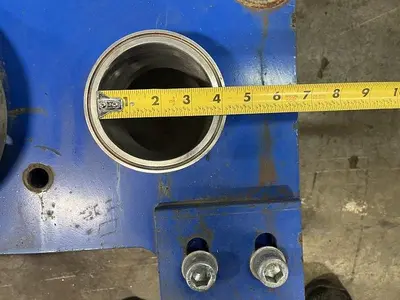

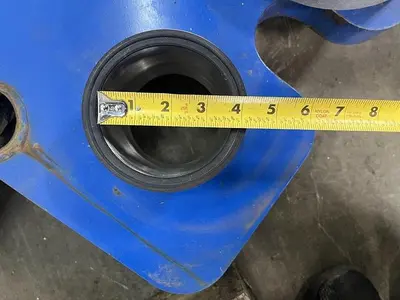

The R5 is a 4″ ported, 0.5 mm thick plate that is standard design for sanitary applications such as food, diary, beverage and more. It features a diagonal flow orientation and washboard corrugation pattern, great for more viscous liquids.

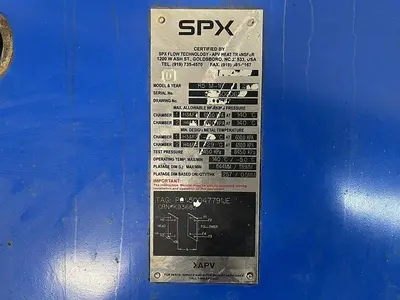

MAWP: 650.0 KPa at 140°C
MDMT: -29°C at 650.0 KPA
Test pressure: 845.0 KPa
Operating temperature: max 140°C, min -5°C

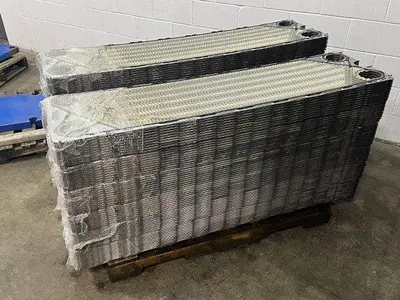

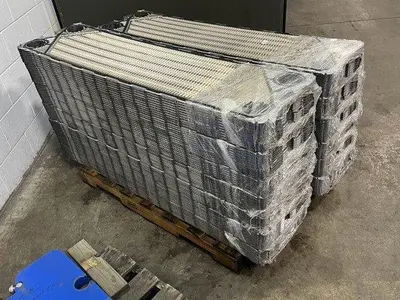

Plate quantity: 257

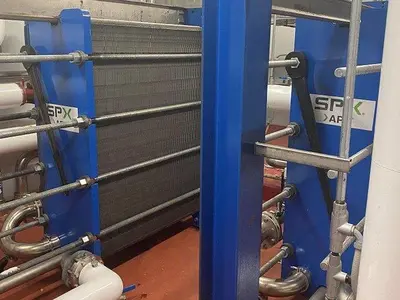

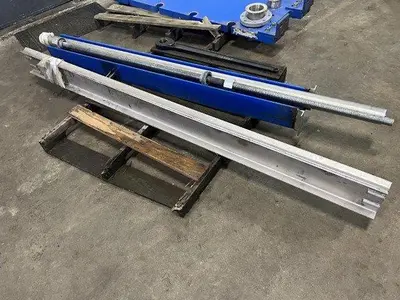

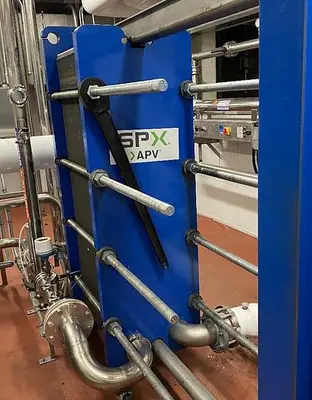

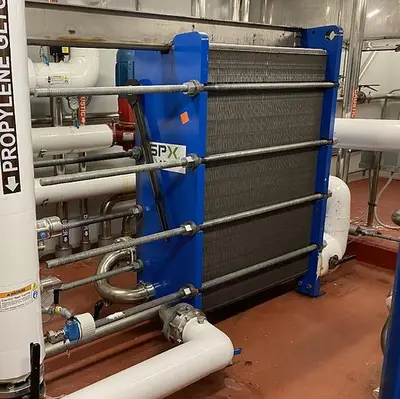

Needs 3 rods to be fully functional. See photo of heat exchanger set up.

Dimensions (l x w x h): 99" x 22" x 66"
Length (in): 99
Width (in): 22
Height (in): 66
