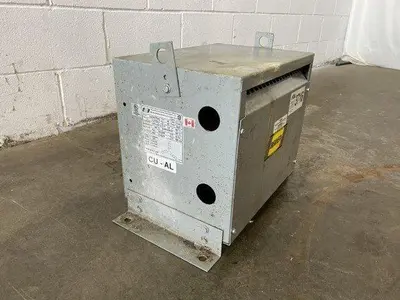

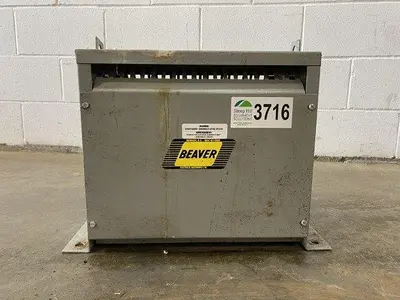

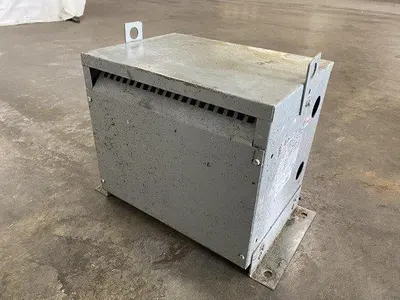

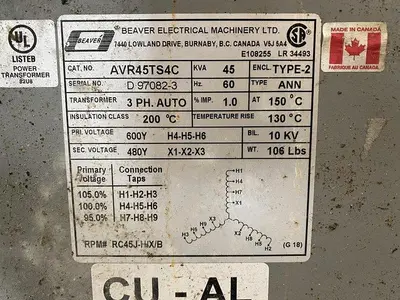

Dry type, three phase 45 kVA autotransformer.
Enclosure type-2
Insulation class: 200°C
Temperature rise: 130°C

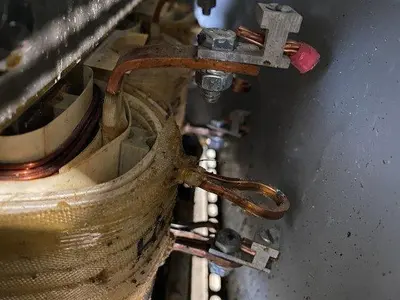

Winding material: copper
Dimensions (l x w x h): 19.5" x 11" x 16"
Weight: 48kg
Power: 600 V | 3 Phase | 60 Hz
Location code: AA7-4
Weight (kg): 48
Length (in): 19.5
Width (in): 11
Height (in): 16
