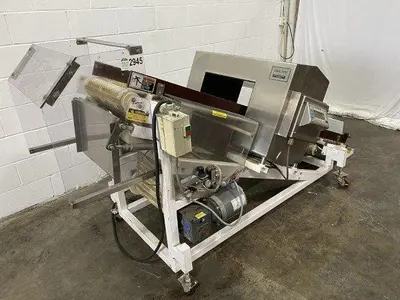

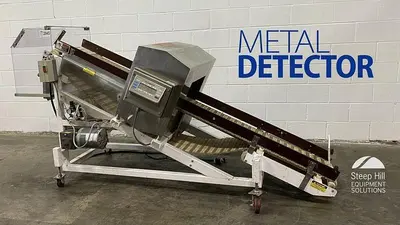

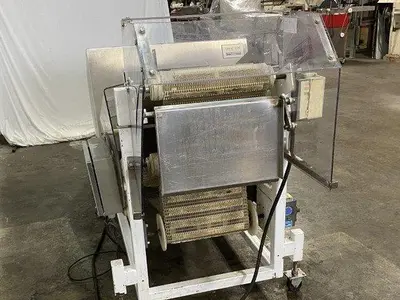

USED GRASEBY GORING KERR DSP2

Operates on the balance coil full loop detection system. Three equally spaced coils surround the aperture: one is the oscillator coil, the other two are the receiving coils. The oscillator produces an electromagnetic field. The receiving coils oppose each other, creating a zero net signal. A piece of metal entering the field changes the balance, causing an error signal.
Aperture: 16″L x 18″W x 8.75″H

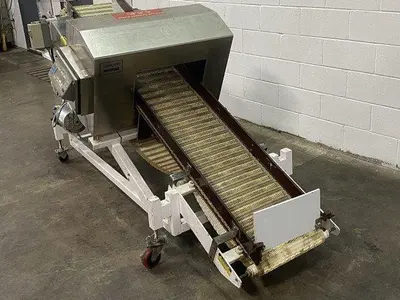

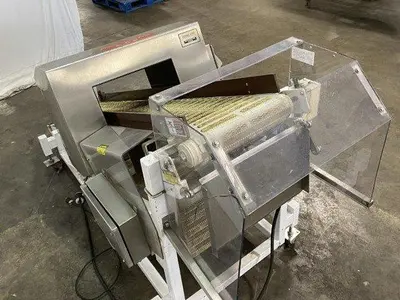

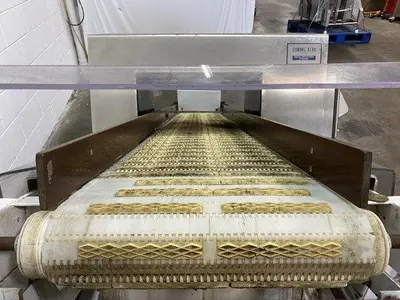

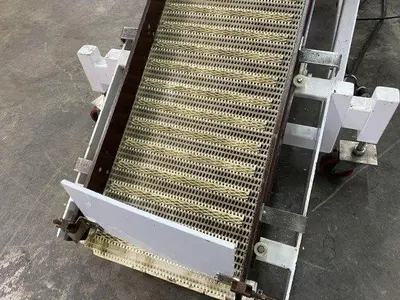

Inclined conveyor: 94″L x 15″W, top end: 45″ from ground, bottom end: 5.5″ from ground.

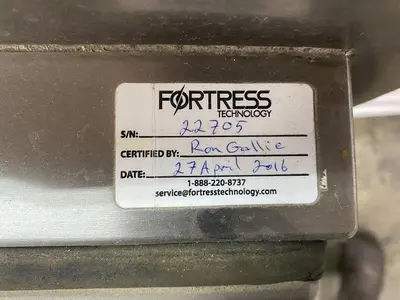

Last certified: 2016

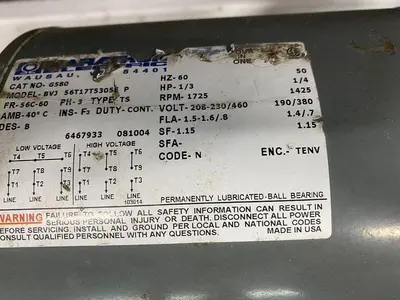

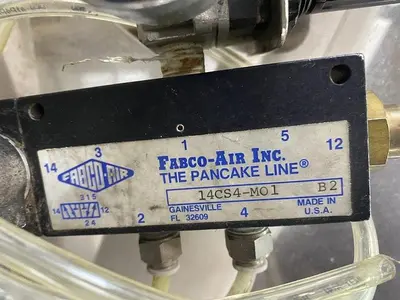

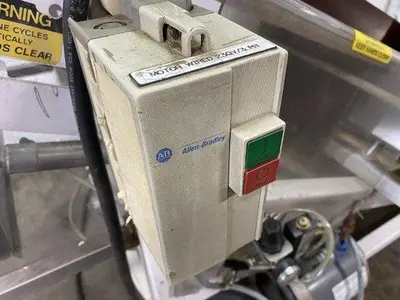

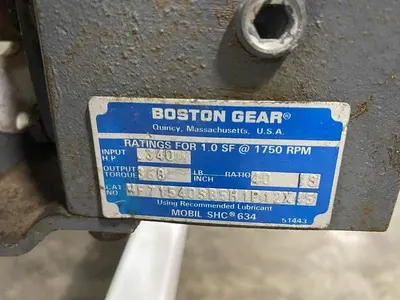

Includes a Marathon 1/3 hp electric motor, a Boston gear motor, a Fabco-Air ‘The Pancake Line’ direct interchange air cylinder, and an Allen-Bradley on-off switch.

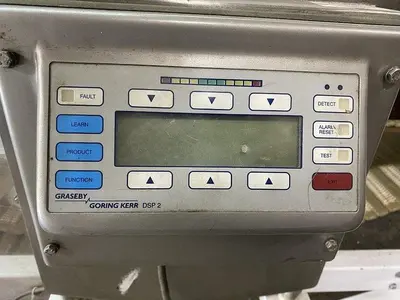

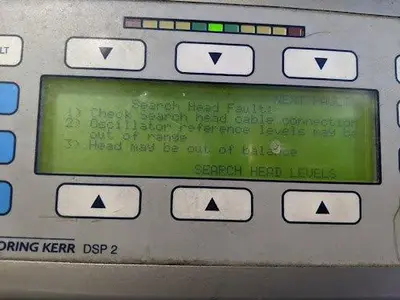

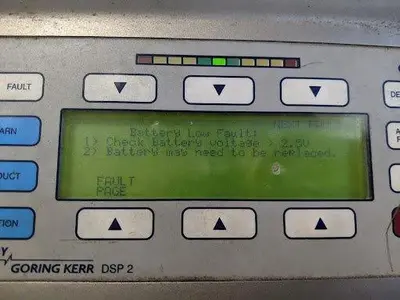

Tested and working, but it presents the following fault codes: 1) battery low voltage, 2) oscillator out of balance. See photos.
Digital manual available upon request.

Dimensions (l x w x h): 110" x 46" x 53"
Location Code: Showroom
Includes manual: Yes
Power: 230/460 V | 1.6/0.8 A | 60 Hz
Length (in): 110
Width (in): 46
Height (in): 53
