USED 2006 PRAXAIR JE-U4-940-HC

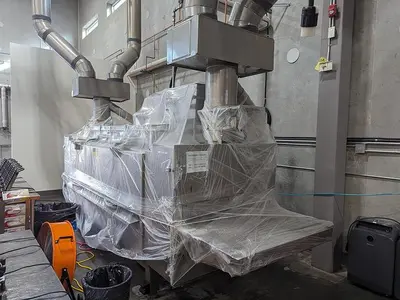

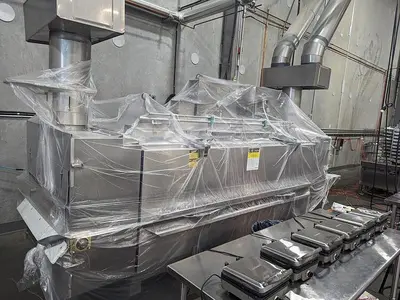

The Praxair straight tunnel freezer was not running at full capacity but was freezing over 600 kg of product per hour to a temperature of -80°C. Previously used to freeze baked goods.

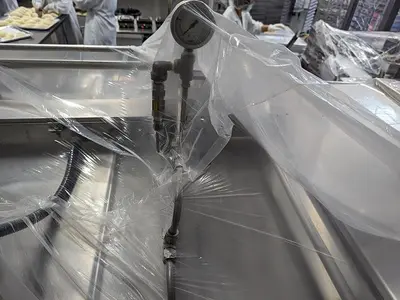

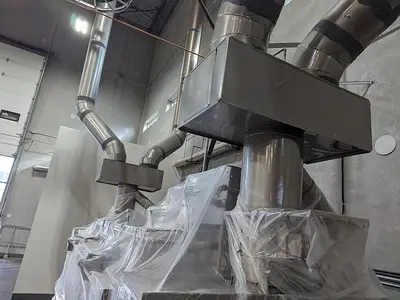

Automatic temperature and pressure control systems adjust cryogen injection to compensate for incoming product load and temperature variations. A vapor balance system at conveyor entrance and exit prevents warm room air from entering freezer.
Refrigerant: CO2

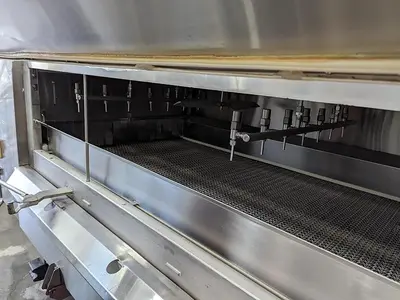

Tunnel chamber: 9’L x 40″W
Aperture: 38″W x 7″H

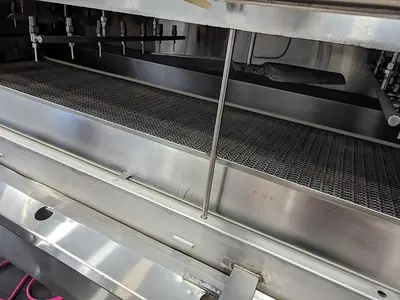

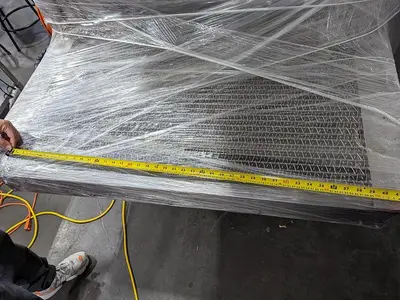

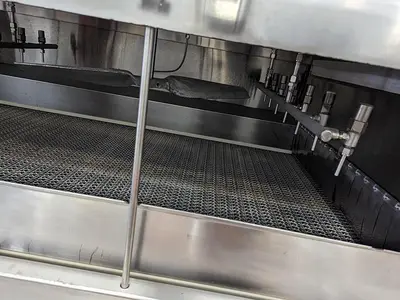

SS omni grid belt: 14’5″L x 39"W, usable width: 38″

Dimensions (l x w): 178" x 65"

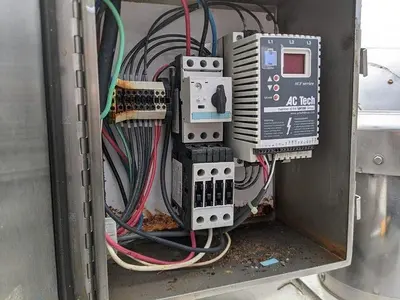

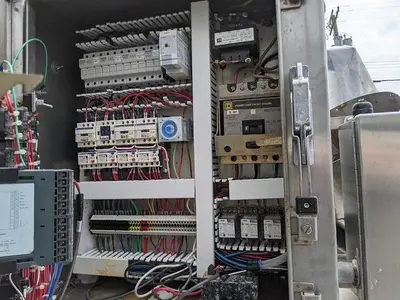

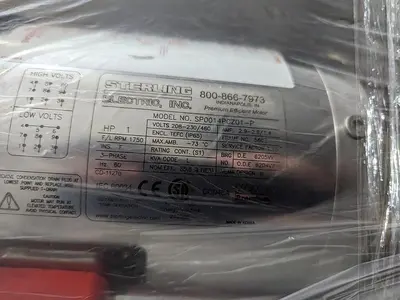

Voltage: 230
Amperage: 16
HP: 4
Phase: 3
