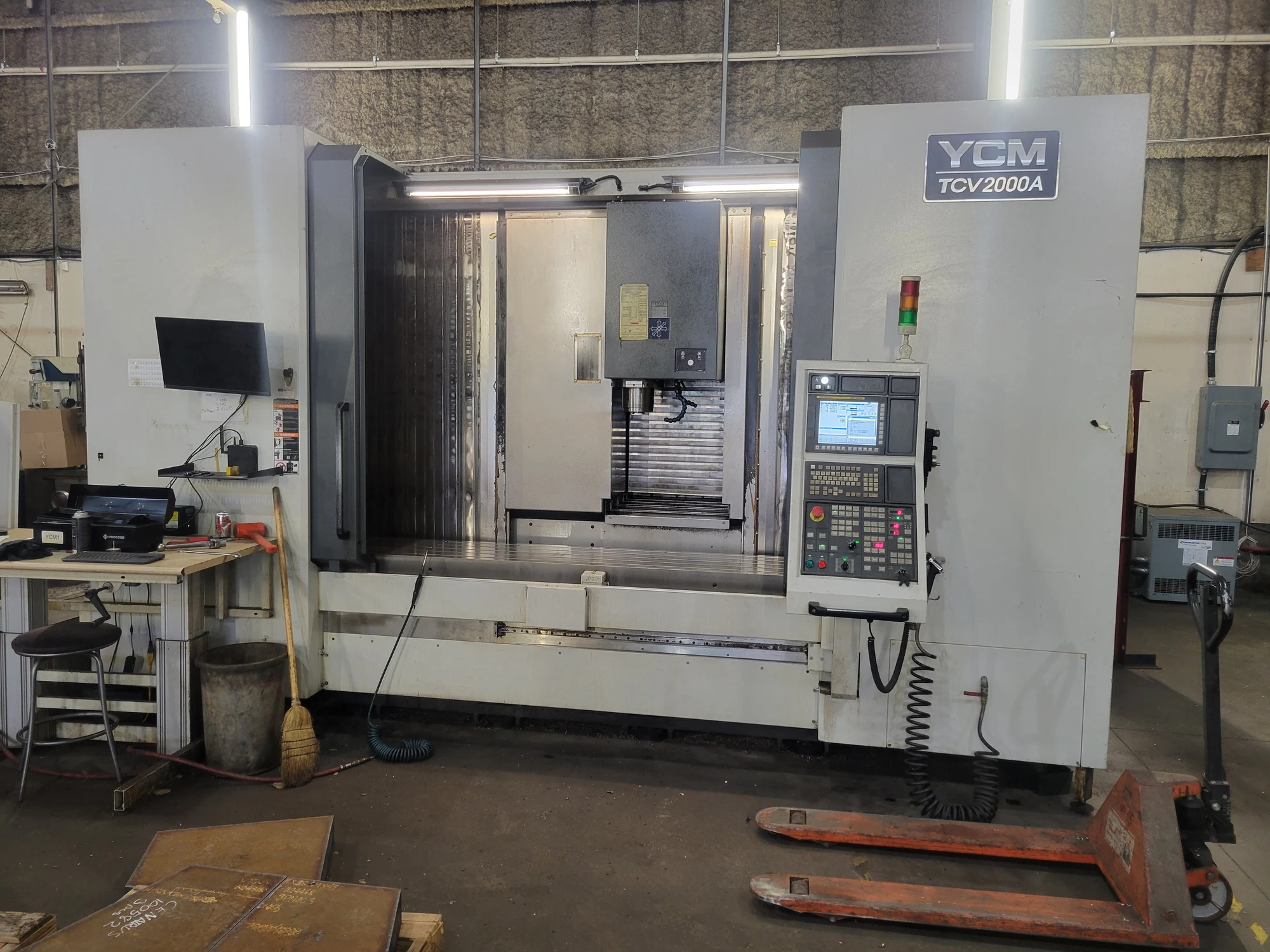

For sale: 2013 YCM TCV 2000A CNC Vertical Machining Center with 78.7" X-axis travel. Features include a 12,000 RPM spindle, 30 ATC, synchronized tapping, and a spindle chiller. Equipped with FANUC MXP-200FB control and manual guide programming.
| Number Of Tables / Pallets | 1 | 1 |
| Table-L | 98.4" | 2,499.4 mm |
| Table-W | 20.5" | 520.7 mm |
| Weight on Table | 4,409 lb | 1,999.9 kg |
| X - Axis Travel | 78.7" | 1,999 mm |
| Y - Axis Travel | 20.5" | 520.7 mm |
| Z - Axis Travel | 21.3" | 541.02 mm |
| C - Axis Travel Table Indexing | 0 | 0 |
| Cutting Feed Rate | 394 in/min. | 10 m/min. |
| Spindle Speed | 12,000 RPM | 12,000 RPM |
| Spindle Taper | 40 | 40 |
| Number of Gear Ranges | 0 | 0 |
| Main Motor | 30 hp | 22.4 kW |
| Tool Length | 11.8" | 299.72 mm |
| Tool Weight | 13.2 lb | 6 kg |
| Machine Weight | 29,321 lb | 13,299.8 kg |
| Automatic Tool Changer | 30 | 30 |
| Control | CNC (FANUC MXP200i) | CNC (FANUC MXP200i) |
ADDITIONAL MEMORY
SYNCHRONIZED TAPPING
CHIP CONVEYER
HELICAL INTERPOLATION
WIRED FOR RENISHAW PROBE
FANUC MXP-200FB CNC CONTROL
CUSTOM MACRO
MANUAL GUIDE I CONVERSATIONAL PROGRAMMING
USB / MEMORY CARD SLOT
HAND HELD MPG
SPINDLE CHILLER
1000 PSI MHP COOLANT THRU SPINDLE SYSTEM
WIRED FOR 4TH AXIS
REMOVABLE CENTER PARTICIAN
TOOL LENGTH MEASUREMENT TOUCH PROBE
