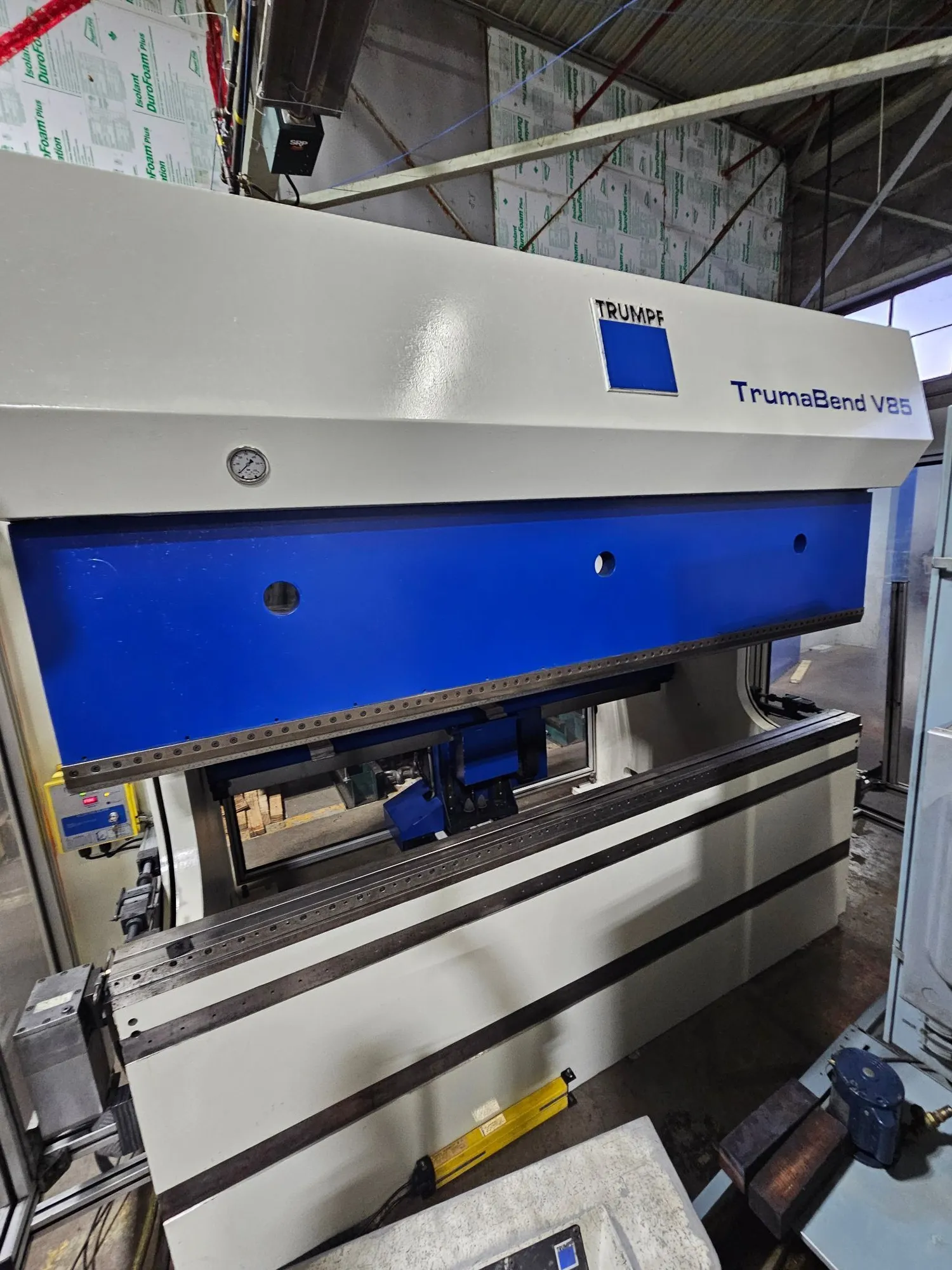

1998 Trumpf TrumaBend V85S Hydraulic CNC Press Brake, 85 Ton, 4-Axis Backgauge, CNC Crowning, Upper/Lower Hydraulic Tool Clamping, Pneumatic I-Axis, Light Curtains
| Tonnage | 85 T | 77.111 t |
| Type | HYD | HYD |
| OA Length | 100" | 2.5 m |
| Between Frames | 89" | 2,260.6 mm |
| Throat Depth | 16" | 406.4 mm |
| Stroke | 14.37" | 365 mm |
| # Axis | 6 | 6 |
| Motor Power | 15 hp | 11.2 kW |
| Open Height | 21" | 533.4 mm |
| Bed Width | 4.72" | 119.89 mm |
| Fast Approach | 472 in/min. | 12 m/min. |
| Slow Bend | 24 in/min. | 0.6 m/min. |
| Fast Return | 320 in/min. | 8.1 m/min. |
| Control | CNC (Delem DA65) | CNC (Delem DA65) |
| Dimensions | 126" X 83" X 114" | 126" X 83" X 114" |
| Weight | 19,293 lb | 19,293 lb |
4-axis CNC backgauge
CNC crowning
Hydraulic tool clamping (upper & lower)
Pneumatic I-axis (die shift)
Light curtains

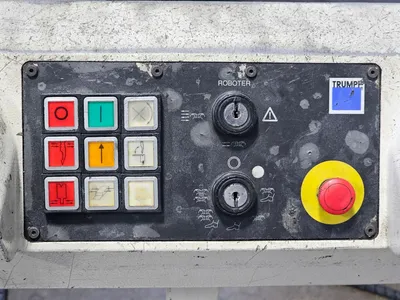

Pedestal control
