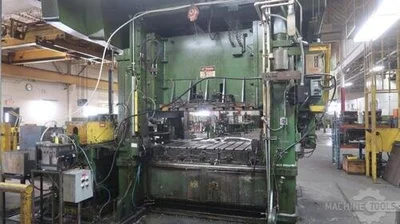

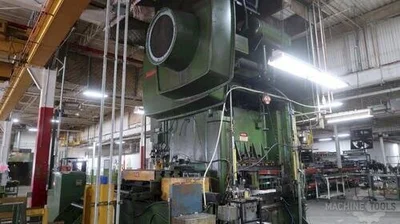

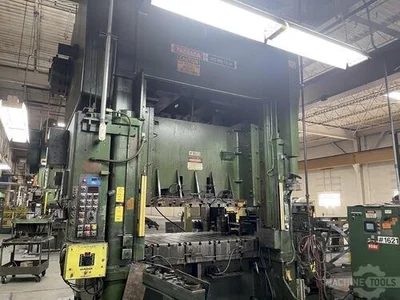

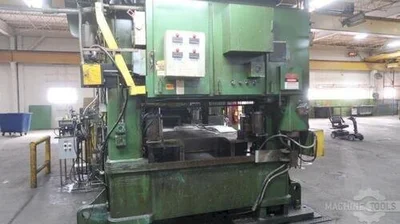

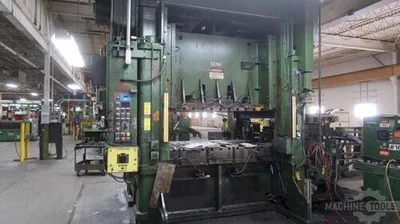

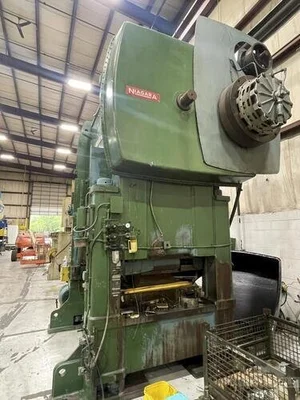

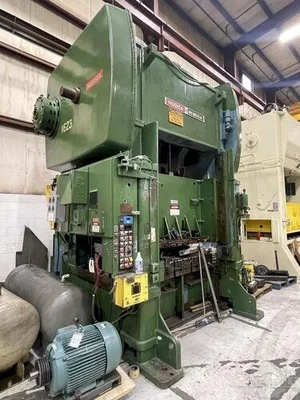

USED 1988 NIAGARA BP2-400-72-42

Tonnage: 400
Stroke: 5 inches
Shut Height: 29 inches
Adjustment: 14 inches
Bed Size: 72" LR x 54" FB
Ram Area: 72" LR x 54" FB
SPM: 50-100

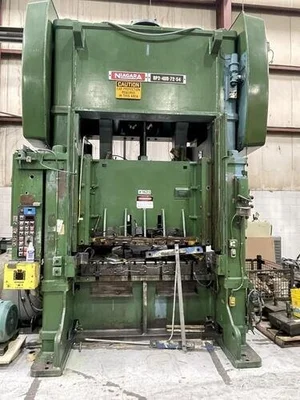

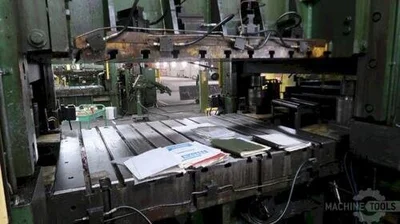

Standard SpecificationsUsed Niagara Press Model# BP2-400-72-54Straight Side Mechanical Press400 ton Capacity5" Stroke29" Shut Height Over Bed14" Motorized Adjustment72" LR x 54" FB Bed Area72" LR x 54" FB Slide Area50-100 VSPMEquipment and FeaturesAir Clutch and Brake Air  CounterbalancesRecirculating Lube System8 Point GibbingT-Slotted Ram and Bolster Motorized Ram AdjustmentVariable Speed MotorDual Ross ValveFree Standing Console ControlsMotor and Controls60" Wide WindowsFloor StandingThis 400 ton Niagara Mechanical Metal Stamping Press can be seen under power in the S & G Press Livonia Michigan Warehouse! Used 400-ton Niagara Straight Side Press For SaleBoost your pressroom productivity with this used Niagara BP2-400-72-54 Straight Side Mechanical Press. Engineered for precision metal stamping, this floor-standing press delivers 400 tons of capacity with a 5" stroke, 29" shut height over bed, and variable production speeds of 50–100 SPM. It features a spacious 72" LR x 54" FB bed and slide area with T-slotted ram and bolster plates for fast tooling changes. Built for high performance and durability, this straight side press includes 8-point gibbing, a 14" motorized ram adjustment, air clutch and brake, air counterbalances, recirculating lube system, 60" wide side windows, and free-standing console controls.
