USED 1980 NIAGARA BP2-400-84-48

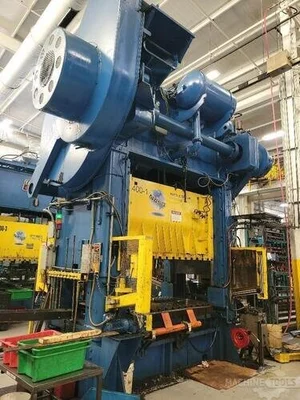

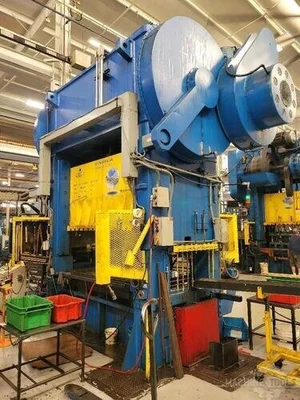

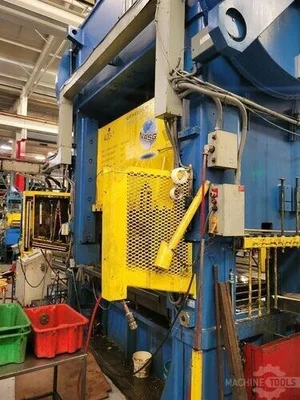

400 ton Niagara BP2-400-84-48 Used Straight Side Mechanical Metal Stamping Press, Year 1980

Tonnage: 400
Stroke: 8 inches
Shut Height: 31 inches
Adjustment: 12 inches
Bed Size: 84" LR x 48" FB
Ram Area: 84" LR x 48" FB
SPM: 35-70 VSPM

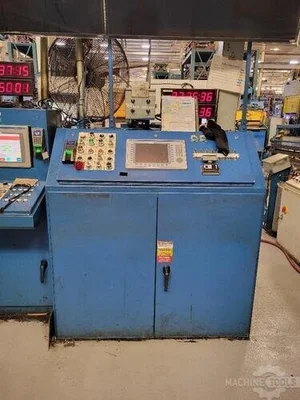

Standard Specifications400 ton Capacity Mechanical Metal Stamping PressNiagara Press Model BP2-400-84-48Full Mechanical Rebuild In Process 8" Stroke31" Shut Height25" Die Height on Bolster12" Motorized Adjustment84" LR x 48" FB Bed Area84" LR x 48" FB Slide Area35-70 VSPMEquipment and FeaturesAir Clutch and BrakesAir CounterbalancesRecirculating Lube SystemT-Slotted Ram and BolsterTwin End DriveLight Curtains35" Wide Windows Free Standing Console Controls - Allen Bradley8 Point Gibbing75 HP Main Drive MotorFloor Standing Design
This Rebuilt 400 ton Niagara press can be seen under power in the S&G Press Livonia MI Warehouse upon request! Price Includes:  Full Mechanical, Air and Lubrication Rebuild.  Upon completion press can be seen under power.This reconditioned 400-ton Niagara BP2-400-84-48 straight side mechanical press excels in progressive die stamping and high-speed blanking. Its sturdy design and high tonnage deliver the required force for these operations. The 84" x 48" bed area easily handles progressive dies, enabling efficient, multi-stage forming.  With an 8" stroke, variable speed and floor standing design make for this used press an economical high production press for any stamping facility.
