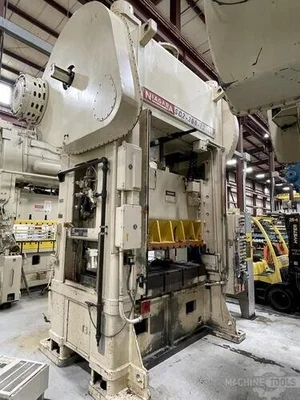

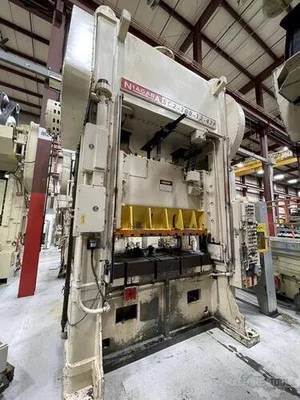

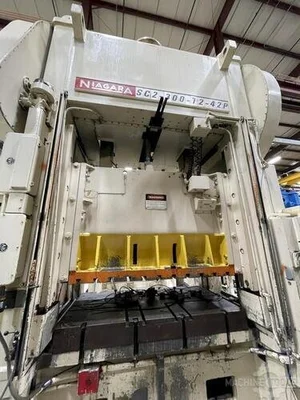

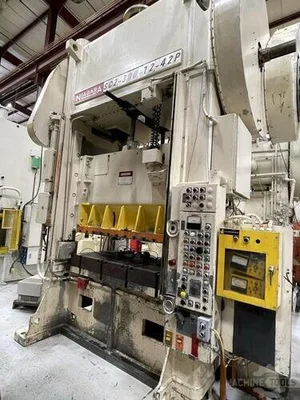

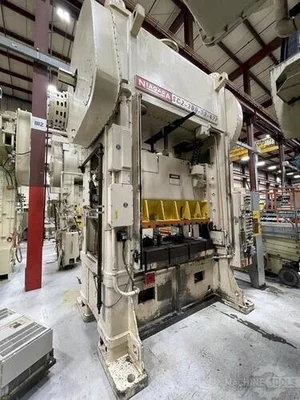

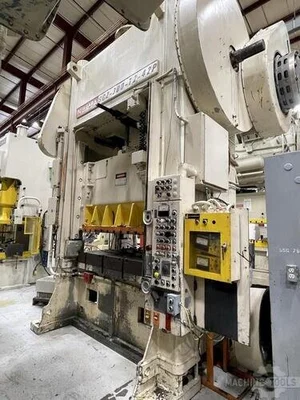

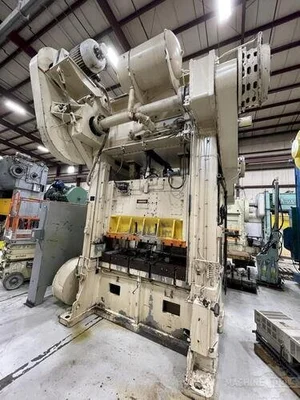

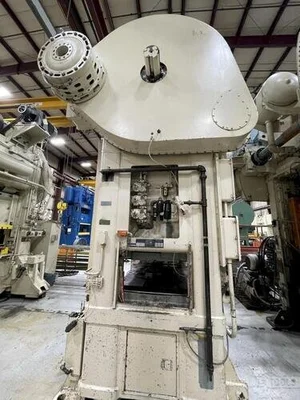

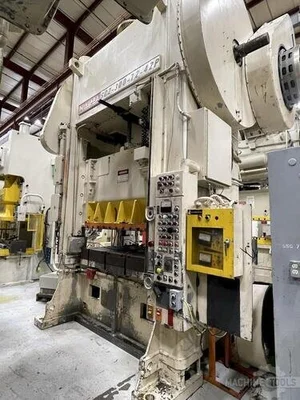

USED 1980 NIAGARA SC2-300-72-42

300 ton Niagara SC2-300-72-42P Used Straight Side Double Crank Mechanical Metal Stamping Press For Sale, Year 1980

Tonnage: 300
Stroke: 8 inches
Shut Height: 27 inches
Adjustment: 12 inches
Bed Size: 72" LR x 42" FB
Ram Area: 72" LR x 42" FB
SPM: 30 - 60 VSPM

Standard SpecificationsUsed Niagara Press Straight Side PressModel# SC2-300-72-42Mechanical Metal Stamping Press300 ton Capacity8" Stroke21" Die Height on Bolster27" Shut Height on Bed12" Adjustment72" LR x 42" FB Bed Area72" LR x 42" FB Slide Area30-60 VSPMEquipment and FeaturesAir Clutch and BrakeAir CounterbalancesTrabon Recirculating Lube SystemHydraulic Tie Rod NutsT-Slotted Ram and Bolster 6" thick Bolster Plate50 HP Adjustable Speed Drive7" Vibro Dynamic Floor Pads (not included in height)32" Wide WindowsFree Standing Console ControlFloor Standing Overall Press Height: 207.5"  Foot Print:  105.25" Wide x  85" DepthWeight:  90,000 lbs. This 300-ton Niagara Straight Side Mechanical Press can be seen under power in the S&G Press Livonia Michigan Warehouse!For sale: a used 300-ton Niagara SE2-300-72-42 Straight Side Mechanical Metal Stamping Press. This heavy-duty press offers 300 tons of force, an 8-inch stroke, and a 27-inch shut height. It also includes hydraulic tie-rod nuts and adjustable speeds from 30 to 60 strokes per minute, making it ideal for high-volume industrial applications.Click here for more quality used 300-ton Mechanical Press OptionsUsed 300-ton Straight Side Metal Stamping Press For Sale.  Straight Side Presses for Sale , Used stamping presses for sale, Niagara Press
