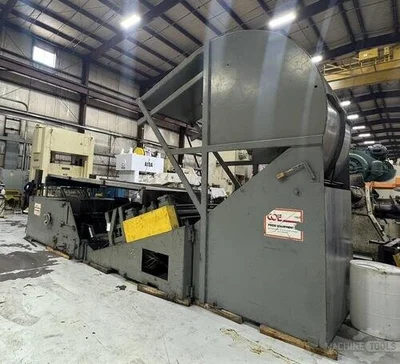

USED COE PRESS EQUIPMENT CPCC-20072

Coil Weight: 20000 pounds
Coil Width: 72 inches
Coil Thickness: .200 inches

Standard SpecificationsUsed Coe Press Model CPCC-20072
Coil weight capacity: 20,000 Lbs.
Coil width capacity: 72"
Stock thickness capacity: .200" x 72" Wide
Stock thickness capacity: .250" x 48" Wide
Coil OD capacity: 60"
Coe Press Coil Cradle Straightener Combination Uncoiler Equipment and Features:
Coil cradle straightener entry and exit pinch rolls
Air operated upper coil cradle straightener pinch roll adjustments
Seven coil cradle straightening rolls x 5" diameter
Hand crank upper coil cradle straightening roll adjustments via 5 ton screw jacks
Inline (Floor Mounted) coil cradle straightener powered straightener
Air operated stock peelerStock end-debender system
Dual adjustable side plates with side plate rollers
Reverse loop stock deflector
Over head guide chute (air operated)
Chute extension
Common operator's control consoleThis Used 72" Coil Width Coe Press Equipment Cradle Straightener can be inspected in the S&G Press Livonia Michigan Warehouse! Used Metal Stamping Coe Press Equipment Coil Cradle Straightener For Sale
More Heavy Capacity Coil Cradle-Straighteners For Sale at S&G PressCoe Heavy Duty Coil Cradle Straighteners are engineered for demanding environments, providing exceptional material handling for thick gauge coils. Their robust design ensures superior straightening, minimizing downtime and maximizing precision. This results in increased production efficiency and consistently high-quality output. Specifically, Reverse Loop Coil Cradle Straighteners enhance safety when processing thick, high-strength materials by managing coil tension and preventing uncontrolled material movement.Quality Used Coil Feed Equipment For Sale
