USED 1997 MINSTER E2-300-72-42 HEVISTAMPER

Rebuilt: 300 ton Minster Model E2-300-72-42 Hevi-Stamper Used Straight Side Mechanical Press For Sale, Year 1997

Tonnage: 300
Stroke: 8 inches
Shut Height: 26 inches
Adjustment: 6 inches
Bed Size: 72" LR x 42" FB
Ram Area: 72" LR x 42" FB
SPM: 0-100

Standard Specifications
Used Minster Straight Side Mechanical Stamping Press
Model E2-300-72-42 Hevi-Stamper Serial Number/ 29119Price includes a comprehensive mechanical rebuild, featuring all new bushings, bearings, seals, liners, and brake pads. For a complete scope of work, please inquire with your sales representative.
300 ton Capacity
8" Stroke
26" Shut Height on Bed
6" Motorized Adjustment
72" LR x 42" FB Bed Area
72" LR x 42" FB Slide Area
0-100 VSPM

Equipment and Features
Minster Combination Air Clutch and Brake
Air Counterbalances
Minster Monitor Flow Recirculating Lube SystemSingle Geared - Twin End Drive
T-Slotted Ram and Bolster 6" Thick Bolster Plate

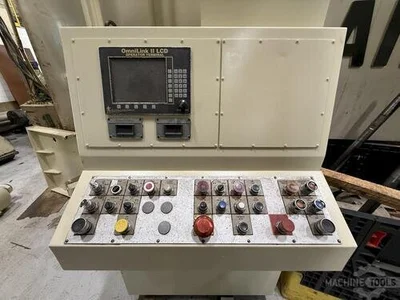

Free Standing Console ControlsOmniLink II LCD Operator TerminalOmniLink 5000 Press Controls-  Including: - 8 PLS Channels -105 Programmable Set Ups- OmniLink Die Protection Module- OmniLink 5000 4 Channel Tonnage Monitoring Module- Automatic Counterbalance Adjustment- Automatic Shut Height Adjustment50 HP, 1800 RPM Main Drive Motor
27" Wide Windows38" Floor to Top of Bed
Hydraulic Tie Rod NutsVibro Dynamic Floor Pads
Floor StandingWeight of Press:  93,000 lbs.

This rebuilt 300 ton Minster Hevi-stamper Press can be seen under power in the S & G Press Livonia Michigan Warehouse.Click for more 300-ton Press OptionsIn the realm of metalworking, Minster's 300-ton Hevi-stampers reign supreme. These mechanical workhorses pack a serious punch, delivering up to 300 tons of force to effortlessly form and shape even the thickest sheets of metal. Their secret lies in the double crank design, which guarantees balanced pressure throughout the forming process. No matter the project size, the Hevi-stamper's spacious bed ensures it can handle even the most demanding tasks.
At S&G Press, we are proud to feature an exceptional 300-ton Minster E2-300-72-42 Hevi-Stamper press for sale. This used mechanical stamping press represents the pinnacle of durability and precision for demanding metal forming operations. The Minster Hevi-Stamper series is renowned industry-wide for its rugged construction, built to withstand continuous, heavy-duty production cycles.
 This specific 300-ton Minster E2 model offers a substantial 72" x 42" bed area, providing ample space for large dies and complex parts. It features an 8" stroke and can operate up to 100 strokes per minute, ensuring high productivity. Its robust design minimizes deflection, leading to superior part quality and extended die life. Choosing this Minster press from S&G Press means investing in a reconditioned or thoroughly inspected machine that delivers reliable performance, offering significant value compared to new equipment. Contact us to learn more about this prime metal stamping press opportunity.
