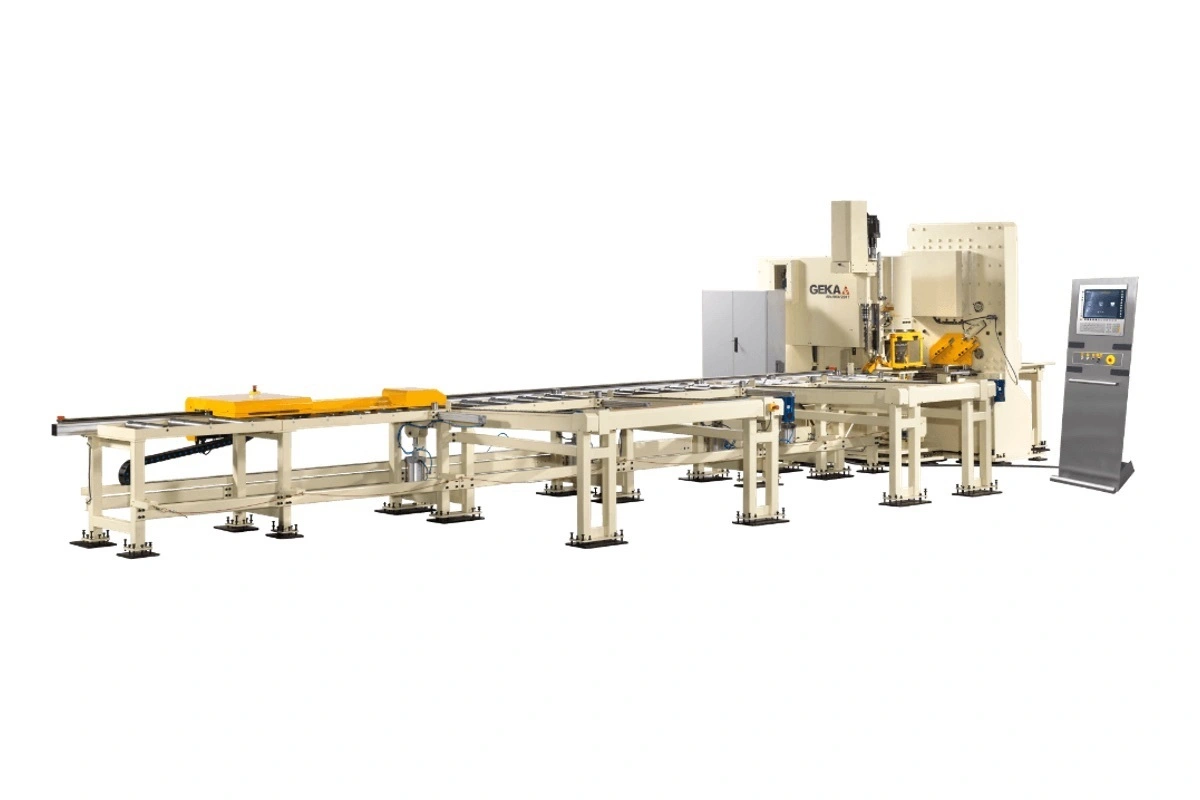

NEW GEKA ALFA 500 / 150 MC
Overview
Description
Geka Alfa 500/150 – CNC Structural Processing Angle/Flat
Specifications
| Capacity (L1) | 6" | 152.4 mm |
|---|---|---|
| Capacity (L2) | 6" | 152.4 mm |
Make: GEKA
Model: ALFA 500/150 - 220 Ton
Type: CNC Structural Processing
Year: 2024
Flat Bar Size (Min.) 2 x 3/16″
Flat Bar Size (Max.) 19-1/2″ x 3/4″
Horizontal-Wing Punches 3
Maximum Diameter on Horizontal Leg 1-1/4″ Optional 1-9/16″
Punching Force 120 US Tons
Marking Disc Optional Rotary
Number of characters 40
Vertical wing punches 1 Optional 2
Maximum Diameter 1 1/4″
Vertical Punching Force 65 US Tons
Angle Processing (Min. Size) 2″ x 2″ x 3/16″
Angle Processing (Max. Size) 6″ x 6″ x 1/2″
Main Features:
INPUT CONVEYOR UNIT
Rack & pinion servo-drive carriage. Flat Bars and Angles are pushed and clamped by the carriage.
HORIZONTAL-WING PUNCHING UNIT
Accommodates three different, independently-selectable punches. Optional Diameter up to 1 9/16″. Hydraulic hold-down. Servo motor and spindle-driven horizontal positioning along Y-Axis.
VERTICAL-WING PUNCHING UNIT
Single punch unit. Diameters up to 1 1/4″. Hydraulic hold-down. Hydraulic Servo Valve positioning.
SHEARING UNIT
Flat bar cutting. Angle cutting. Hydraulic clamping guides. One Station System for shearing flat bars and angles.
USER-INTERFACE
PC on Windows 10 platform. Network Connectivity. USB ports. Graphic interfaces. Remote Assistance via internet.
***Includes Installation and 1 Year Warranty***
Equipped With
Options Available:
Automatic Material Loader.
± 45º Miter Shearing Unit.
40 Character Rotary Marking Unit.
Line Pro Advance Software with Nesting and DSTV Importing.
Drilling Unit.
Optional Center Punch up to 1-9/16″.
