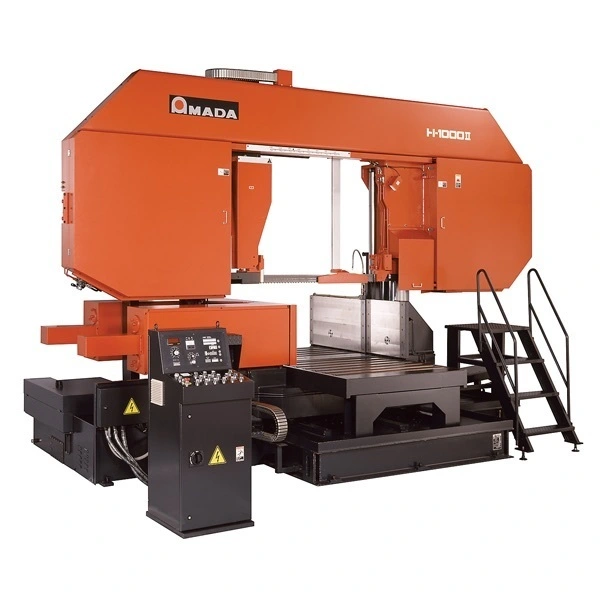

NEW AMADA H-1000II

Semi-Automatic Metal Cutting Band Saw

• 15 HP
• 3″ Blade
• Light Beam Marking
• Motion Detector
• Pressure Flow Valve
• Variable Speed Drive

FEATURES
• Hydraulic Vise
- Prevents material movement while sawing
- Easy set-up
- Positive clamping on the full range of capacity
• Dual Cut Control System
- Combines with fine feed roller for accurate material indexing
- Quick and easy set-up
- Blade feed controlled by both pressure and flow
- Maximum blade life in all cutting applications
- Easy set-up with reference cutting rate system
• Semi-Automatic Indexing
- Quick and easy indexing with fine feed roller

Cutting Capacity:
Round (Diameter) 15.7″ – 40″ 400 – 1000 mm
Rectangle (W x H) 15.7″ x 15.7″ – 44″ x 40″ 400 x 400 mm – 1100 x 1000 mm

Work Load Capacity 33,069 lbs. 15,000 kg

Saw Blade:
Blade Size (L x T x W) 36’5″ x 0.063″ x 3″ 11100 x 1.6 x 80 mm
Blade Speed 50-246 ft/min by Inverter 15-75 m/min by Inverter
Tension Control Hydraulic

Blade Control:
Top Limit Setting Automatic Setting with Quick Approach Feeler
Cutting Control CNC-Light, Hydraulic Flow Control Valve with Stepping Motor

Vise Operation:
Type Front and Rear Vises
Control Hydraulic Full-Stroke Cylinder

Motors:
Saw Blade 15 HP 11 kW
Hydraulic Pump 5 HP 3.7 kW
Cutting Fluid Pump 1/4 HP 0.2 kW
Wire Brush 1/8 HP 0.09 kW

Power Requirement:
Power Supply Voltage AC220V±10%, 3 PH, 60 Hz All Other Voltages Require Transformer
Power Requirement 20 kVA

Cutting Fluid:
Tank Capacity 66.1 gal 250 liters
Pump Type Electric

Hydraulic:
Tank Capacity 39.6 gal 150 liters
Pressure Setting 1110 psi 7.8 MPa (78 kgf/cm2)

Chip Disposal Chip Conveyor

Material Index:
Index Mechanism Outboard Vise, Manual Operation
Stroke 19.7″ 500 mm
Length N/A
Number of Input Station N/A
Number of Cut-Off Pieces N/A
Remnant Length N/A

Machine Dimensions (W x L x H):
Head-Up Position 213.3″ x 130.7″ x 150.6″ 5417 x 3321 x 3824 mm
Head Down Position 213.3″ x 130.7″ x 121.1″ 5417 x 3321 x 3075 mm

Table Height 33.5″ 850 mm
Machine Weight 30,800 lbs 14,000 kg
