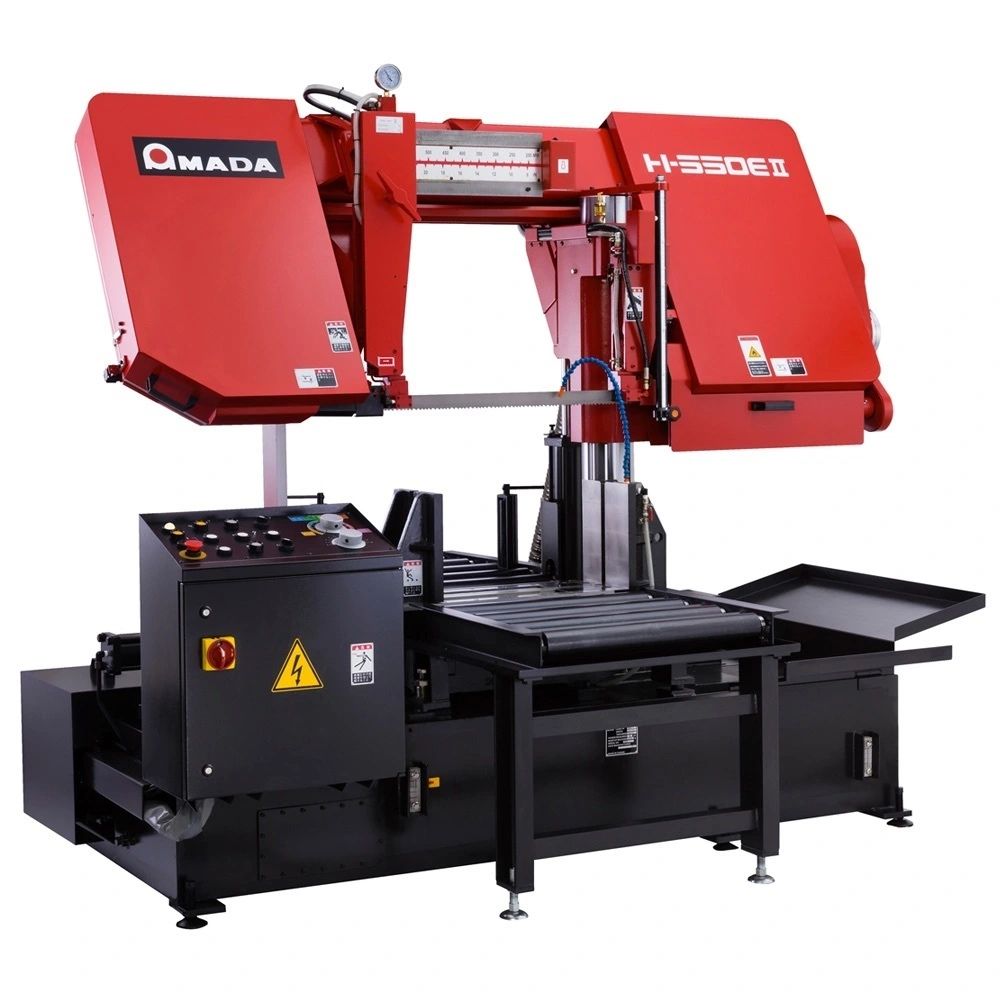

NEW AMADA H-550EII

Semi-Automatic Metal Cutting Band Saw

• 7.5 HP
• 1.5″ Blade
• Blade Hour Meter
• Chip Conveyor
• Light Beam Marking Unit
• Variable Blade Speed Drive
• Wheel Cover Limit Switch

Cutting Capacity:
Round (Diameter) 7.87″-18.90″ 200 – 480 mm
Rectangle (W x H) 21.65″ x 18.90″ 550 x 480 mm

Work Load Capacity 4,409 lbs. 2,000 kg

Saw Blade:
Blade Size (L x T x W) 16′ x 0.050″ x 1.5″ 4880 x 1.3 x 41 mm
Blade Speed 56, 82, 115, 148, 180, 213, 246 ft/min 17, 25, 35, 45, 55, 65, 75, m/min
Tension Control Hydraulic

Blade Control:
Top Limit Setting Manual Setting
Cutting Control Hydraulic Pressure & Flow Control Valve

Vise Operation:
Type Main Split Vise
Control Hydraulic Full-Stroke Cylinder

Motors:
Saw Blade 7.5 HP 5.5 kW
Hydraulic Pump 2 HP 1.5 kW
Cutting Fluid Pump 1/2 HP 0.4 kW

Power Requirement:
Power Supply Voltage AC220V±10%, 3 PH, 60 Hz All Other Voltages Require Transformer
Power Requirement 10 kVA

Cutting Fluid:
Tank Capacity 21.1 gal 80 liters
Pump Type Electric

Hydraulic:
Tank Capacity 18.5 gal 70 liters
Pressure Setting 498 psi 3.5 MPa (35 kgf/cm2)

Chip Disposal Chip Conveyor

Machine Dimensions (W x L x H):
Head-Up Position 107.2″ x 72.8″ x 80.9″ 2723 x 1850 x 2055 mm
Head Down Position 107.2″ x 72.8″ x 68.7″ 2723 x 1850 x 1745 mm

Table Height 26.7″ 675 mm

Machine Weight 4,629 lbs 2,100 kg
