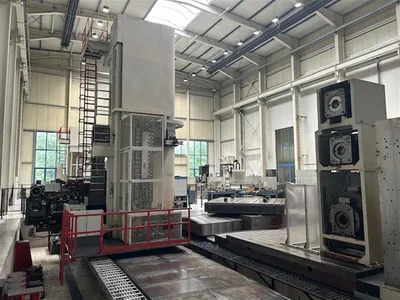

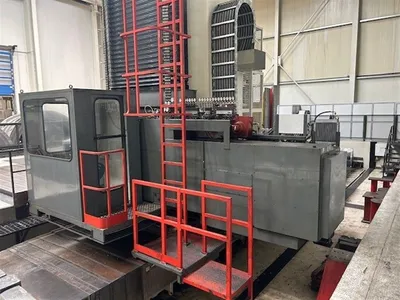

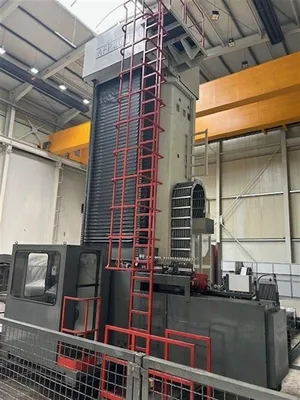

2008 TITAN (PAMA) Ram-Type Floor Boring & Milling HBM, Model AFP 200CNC, w/ SIEMENS 840D
PAMA is an Italian company that has been present on the machine tool market for over 90 years, known for building large and medium-large units, highly appreciated in all sectors where maximum rigidity and high precision are required.
PAMA has established itself worldwide thanks to the tradition, high quality and technological excellence of its products.
| Spindle Size | 7.87" | 199.9 mm |
| X-Horiz Tvl of Col | 254" | 6,451.6 mm |
| Y-Vert Tvl of Head | 157.5" | 4,000.5 mm |
| Power | 161 hp | 120.1 kW |
| Table-W | 118.11" | 3,000 mm |
| Table-L | 118.11" | 3,000 mm |
| Z-Spdl Tvl | 59.06" | 1,500.1 mm |

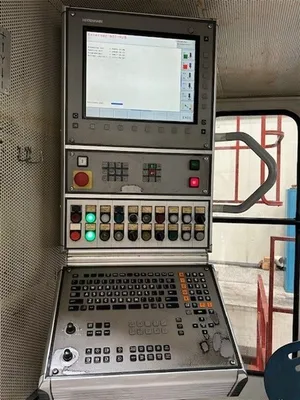

| Control | CNC (Siemens 840D) | CNC (Siemens 840D) |
| Dimensions | 52.5' x 16.4' x 32.8' | 52.5' x 16.4' x 32.8' |
| Weight | 135 Tons | 135 Tons |
spindle diameter 200 mm (7.87")
x-travel 10000 mm (393.7"
y-travel 4000 mm (157.5")
z-axis 1500 mm (59.06")
W-axis (spindle longitudinal) 1000 mm (39.37")
bore spindle turning speed range 1 - 2000 U/min
dimension of the ram 600 x 530 mm 23.6" x 20.87")
high speed spindle taper ISO 60/50
rapid motion - x-axis 8000 mm/min (26.25'/min)
rapid motion - y-axis 8000 mm/min (26.25'/min)
rapid traverse Z-axis 5 m/min
total power requirement 120 kW (161HP)
mweight on table 60 tons
weight of the machine ca. 135 tons
dimensions of the machine ca. 16,0 x 5,0 x 10,0 m (52.5' x 16.4' x 32.8')
with CNC Steuerung HEIDENHAIN iTNC 530
hydrostatic guideways x and Y- axis
autom. toolchanger 40-pockets

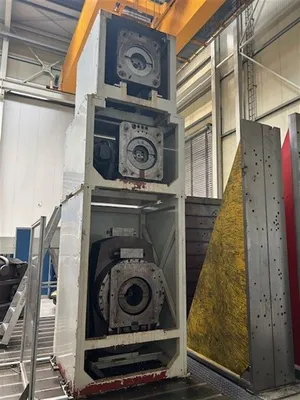

3 station head changer:
autom. Pickup Station for angular milling head,
universal milling head and facing head

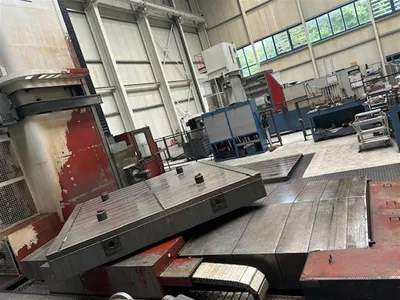

rotary table 3000 x 3000 mm , max load 60 tons.
v-axis 2500 mm
measuring probe, chip conveyor and coolant attachment
