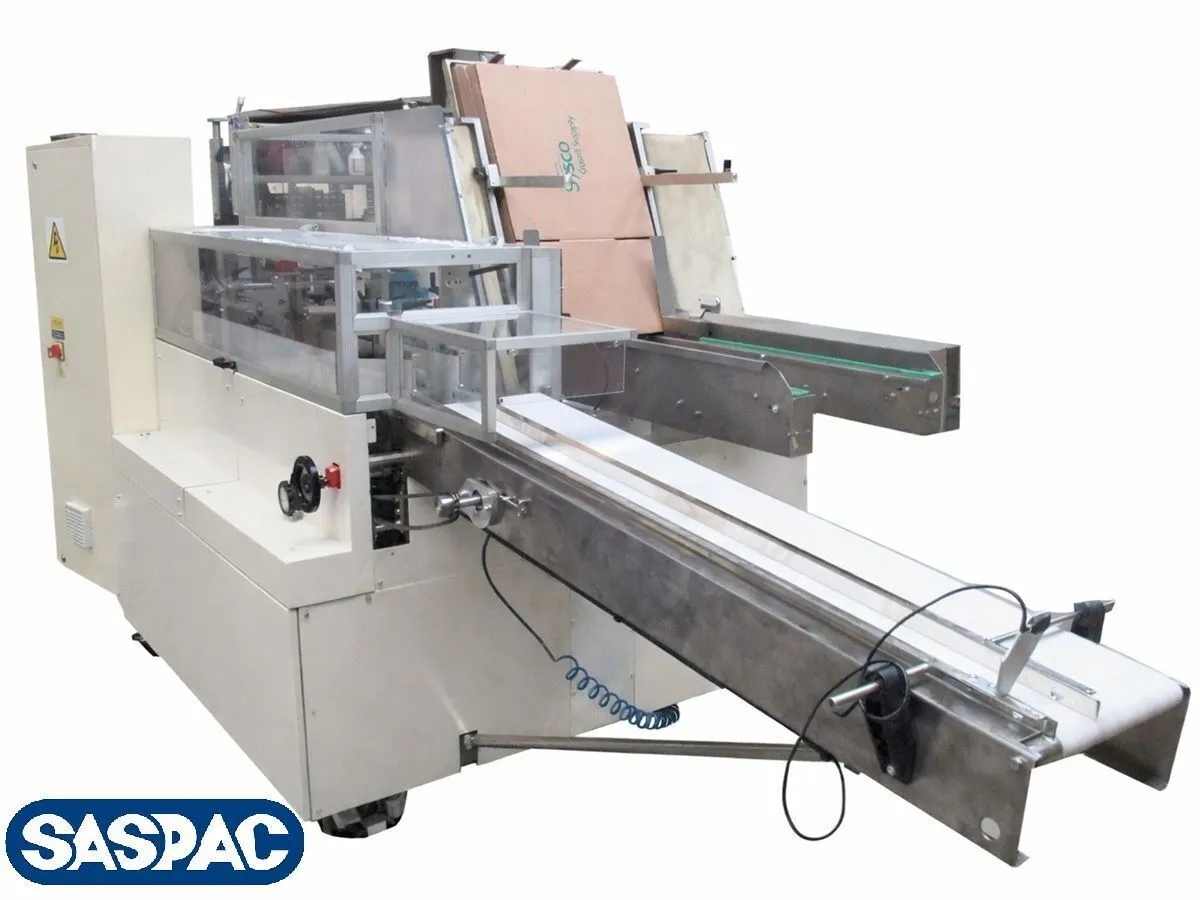

The BFB 3728 automatic case packer is designed for loading individual cartons or multipacks into cardboard cases. It fulfills modern industrial requirements in terms of compact design, quick format change, and dependable performance. The BFB 3728 case packer control is managed by a PLC system, supported by a display that assists the operator during use and changeover procedures. Case sealing can be performed using self-adhesive tape, hot-melt glue, or cold glue systems.
Format (size group) adjustments can be completed without tools, with settings guided by digital position indicators. A case magazine ensures convenient loading. Cases are positively opened by a dual-arm mechanism with suction cups, ensuring accurate squaring during product insertion—even when using lower-quality cardboard. The cases are then securely transferred to the closing section.
Technical specifications:
In-line infeed system
Staking Mechanism for formation of bundles
Pusher (Case Filler) with movable trough
Final folding

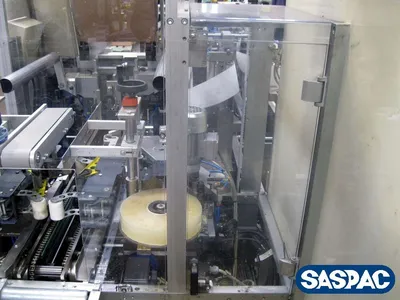

Case Taping section with adhesive tape
Interlocked Safety Covers
Brand New Electrical Panel
CASE ERECTOR
Case Magazine
Automatic opening and partial folding of Cases from magazine
Automatic positioning of Cases on feeding trough
Maximum Speed:
Up to 15 cartons per minute (depending on machine configuration).
Carton Sizes:
Length: from 200 to 550 mm.
Width: from 120 to 350 mm.
Thickness: from 120 to 350 mm.
Optional:
Hot melt system for carton closure
