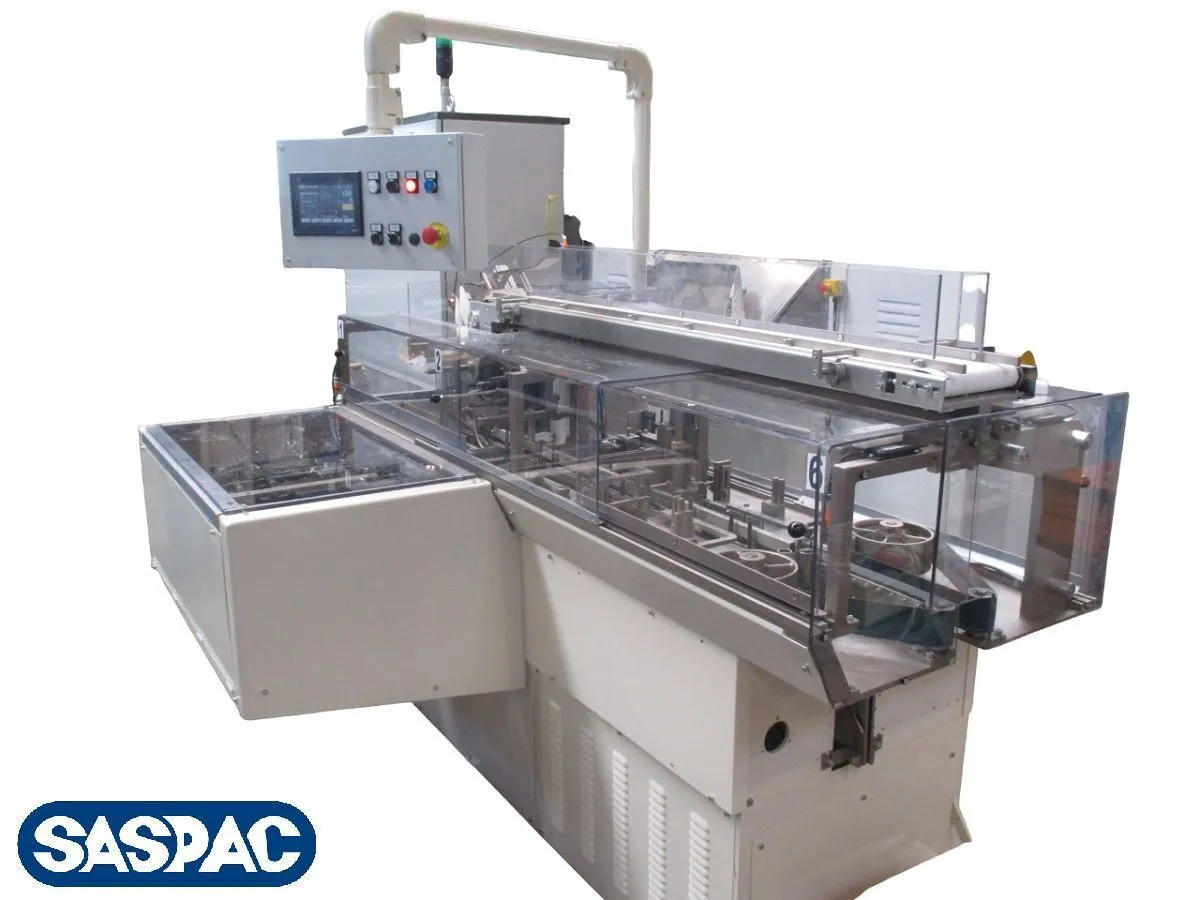

Developed from CAM the reconditioned HF cartoning machine combines advanced engineering with precise manufacturing to ensure consistently high production performance. Well suited for standalone operations, the CAM HF cartoning machine is also designed for seamless integration into fully automated lines, eliminating the need for complex synchronization. The machines are built for durability and dependable operation, minimizing wear on components and reducing costs thanks to limited mechanical stress on moving parts. The carton closure of the CAM HF cartoners is set for tuck-in (reverse tuck) flaps, both double-sided offset or equilateral, but on request we can supply an hot melt system.
Technical specifications:
Continuous motion cartoning machine
Conveyor with buckets.
Presence detection of product inside buckets.
Carton magazine, complete with level detection, with pre-alarm signal.

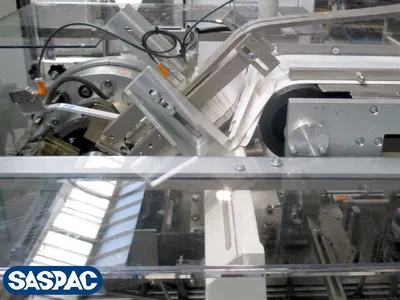

Carton pick-off and erection.
Carton pick-off control system.

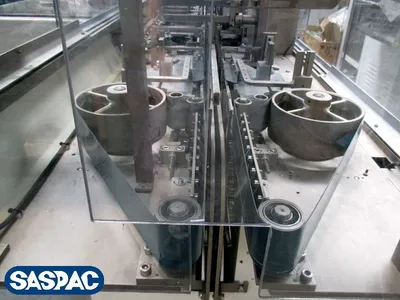

Set of pushers for continuous motion product introduction into carton
Control of correct product introduction.
Motorized carton outfeed belts.
Vacuum pump.
Brand New Electrical Panel
Maximum Speed:
CAM HF: up to 300 strokes per minute.
CAM HS: up to 230 strokes per minute.
HS Model Carton Sizes:
Length: from 55 to 200 mm.
Width: from 20 to 120 mm.
Thickness: from 12 to 70 mm.
HF Model Carton Sizes:
Length: from 55 to 200 mm.
Width: from 20 to 70 mm.
Thickness: from 12 to 70 mm.
Optional:
Automatic Feeder
Customized size group
Hot melt system
