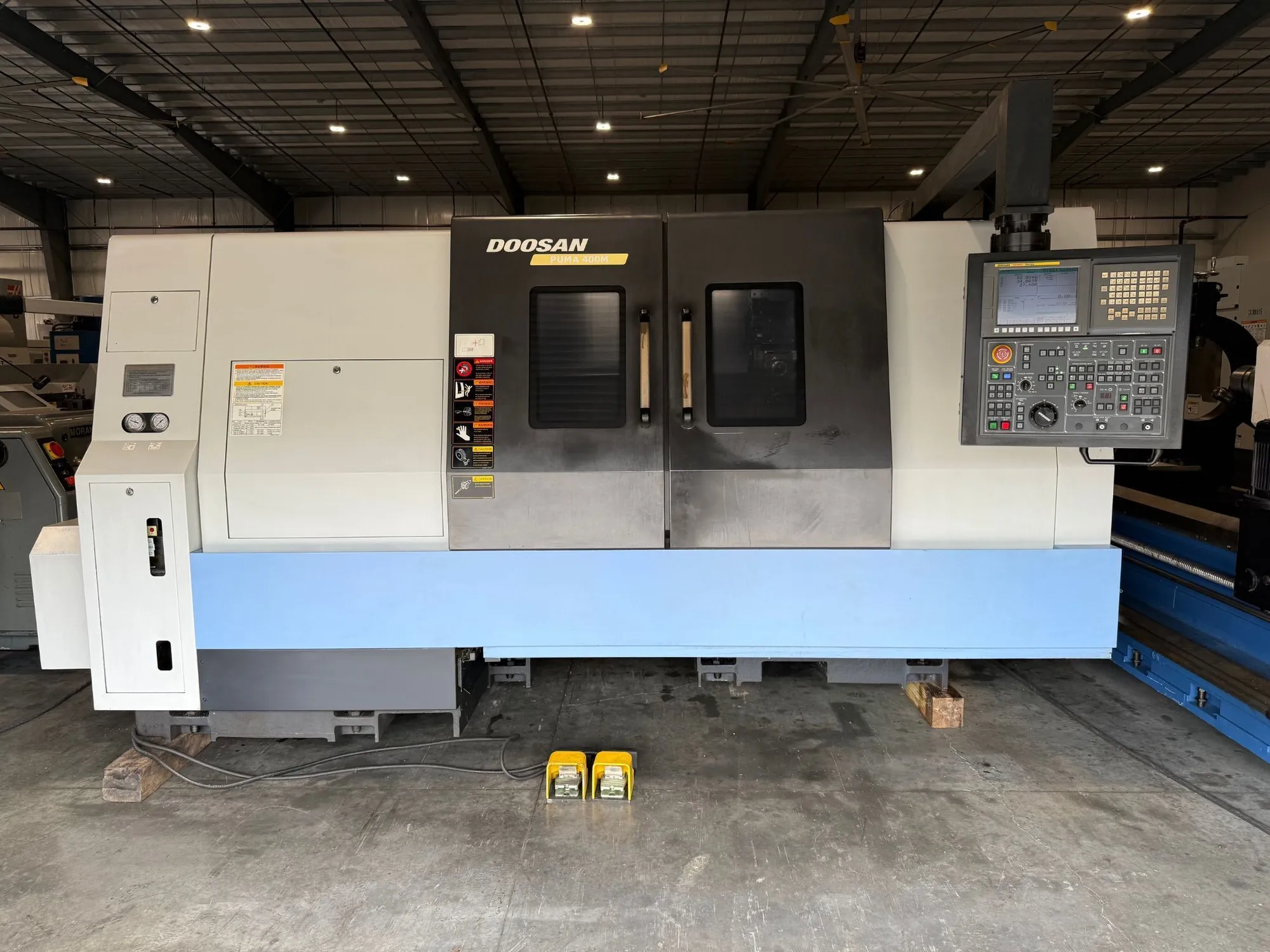

DOOSAN PUMA 400MB CNC Lathe Turning Center 2013’ #8173
| Swing | 30" | 762 mm |
| Machining Length | 38.9" | 988.06 mm |
| Chuck Size | 15" | 381 mm |
| Bar Capacity | 4.5" | 114.3 mm |
| Power | 50 hp | 37.3 kW |
| Max RPM | 2,000 RPM | 2,000 RPM |
| Turning Dia | 21" | 533.4 mm |
| Tailstock | Yes | Yes |
| Live Tooling | Yes | Yes |
| Sub Spindle | No | No |
| Dimensions | 170” x 86” x 92” | 170” x 86” x 92” |
| Weight | 24,500 Lbs. | 24,500 Lbs. |
DOOSAN PUMA 400MB CNC Lathe Turning Center 2013’ #8173
Reference #8173
Model # PUMA 400MB
Serial # ML0130-004520
Year of manufacture- 11/2012’
Swing over bed- 30.3”
Maximum turning diameter- 22”
Maximum turning length- 41.3”
X axis travel- 14.3”
Z axis travel- 43.5”
Spindle nose-A2-11
Spindle speeds- 2,000 R.P.M.
Spindle bore- 5.2”
FANUC I CNC Control
Machine hours- Power on time 11,637, Operating time- 4,119, Cutting time- 2,808
(3) Live tool holders
Assorted static tool holders
15” KITAGAWA 3 jaw chuck
Tool presetter
Programable Hydraulic tailstock
Chip conveyor & coolant pump & oil skimmer
LED work lights
Leveling pads
50 H.P. Spindle motor
Machine is wired for 220 volt / 3 phase / 60 H.Z.
Machine weight- 24,500 Lbs.
Machine dimensions- 170” x 86” x 92”
Machine location- F.O.B. Sarasota, Florida
