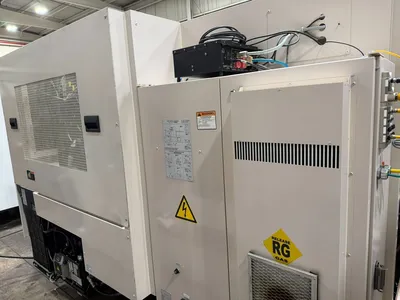

USED 2008 MORI SEIKI NL2500Y/700
Overview
Description

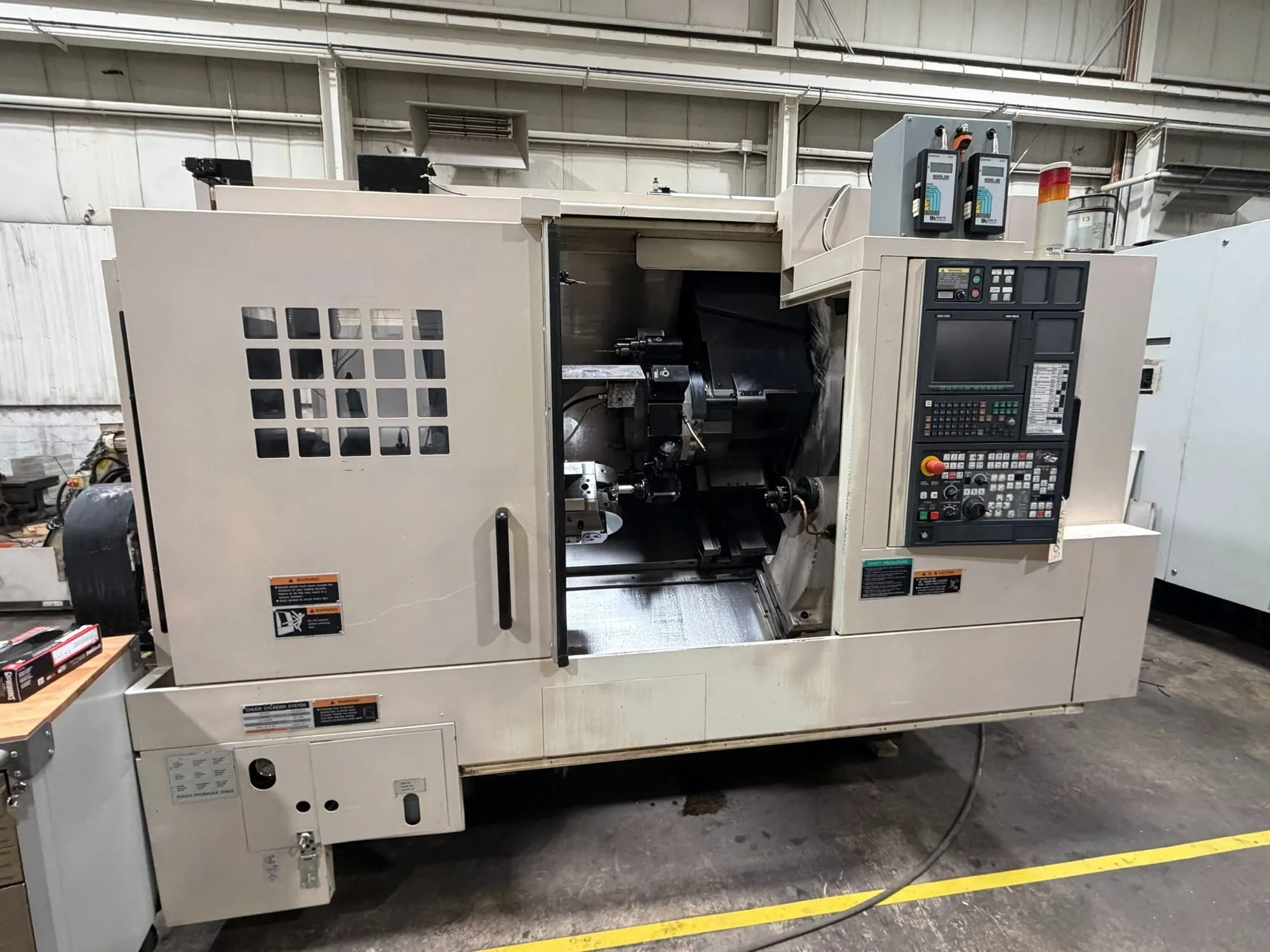

Mori Seiki NL2500Y/700 CNC Lathe Turning Center with Live Tooling and Y-Axis, Live tooling, Coolant, Chip Conveyor
Specifications
| Swing | 36.4" | 924.56 mm |
|---|---|---|
| Machining Length | 27.7" | 703.58 mm |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 3.1" | 78.74 mm |
| Power | 24.7 hp | 18.4 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 14" | 355.6 mm |
| Tailstock | Yes | Yes |
| Live Tooling | Yes | Yes |
MORI SEIKI NL2500Y/700

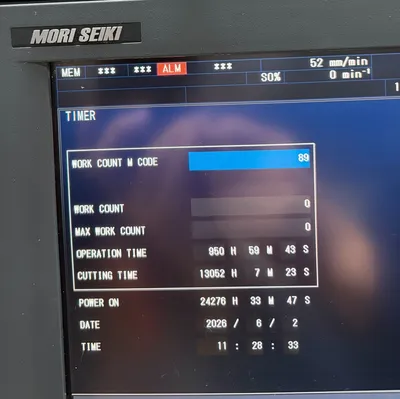

Control: MSX-850 lll
Built: 2008
Capacity
Max Turning Diameter: 14.5″
Max Turning Length: 27.55″
Max Bar Capacity: 3.1″
Swing Over Bed: 36.4″
Distance Between Centers: 34.6″
Travels:
X Axis Travel: 10.2″
Z Axis Travel: 31.3 “
Y Axis Travel: 3.9″
C Axis Travel: 0.001°
Rapid Traverse X Axis: 1181 IPM
Rapid Traverse Z Axis: 1181 IPM
Rapid Traverse Y Axis: 394 IPM
Spindle:
Spindle Nose: A2-8
Spindle Bore: 3.1″
Spindle Speed: 4000 RPM
Spindle Motor: 25 HP
Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.1 Second
Live Tool Speed: 6,000 RPM
Live Tool Motor: 7.5 HP
Tailstock:
Tailstock Taper: MT-4
Approx. Weight: 13,420
Dimensions: 122” x 72” x 83”
Equipped With
Control: MSX-850 lll
PC/MCIA Interface
MAPPS III Programming
C & Y-Axis Live Tooling Capability
Programable Tailstock

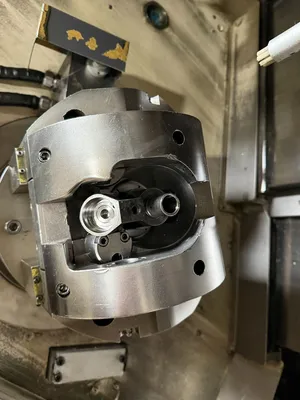

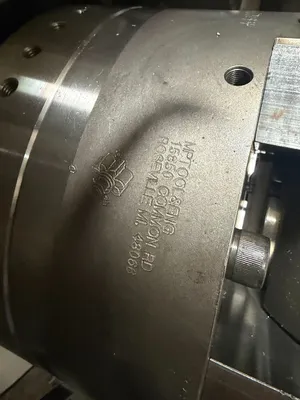

Hydraulic Index Chuck

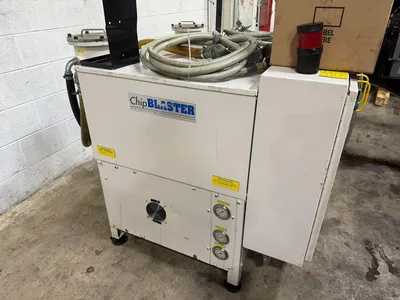

chip Blaster high pressure coolant pump
Tool Presetter
Integral Built-In Milling Spindle Motor
Servo Driven Turret

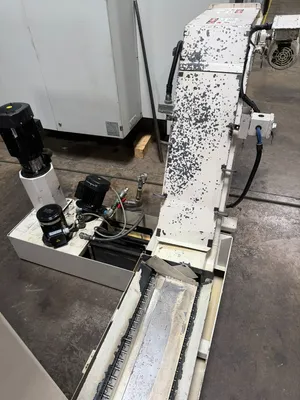

Chip Conveyor
Balmac Model 200 Spindle Vibration Meter
Renishaw Non-Contact Tool Breakage Detection Laser
