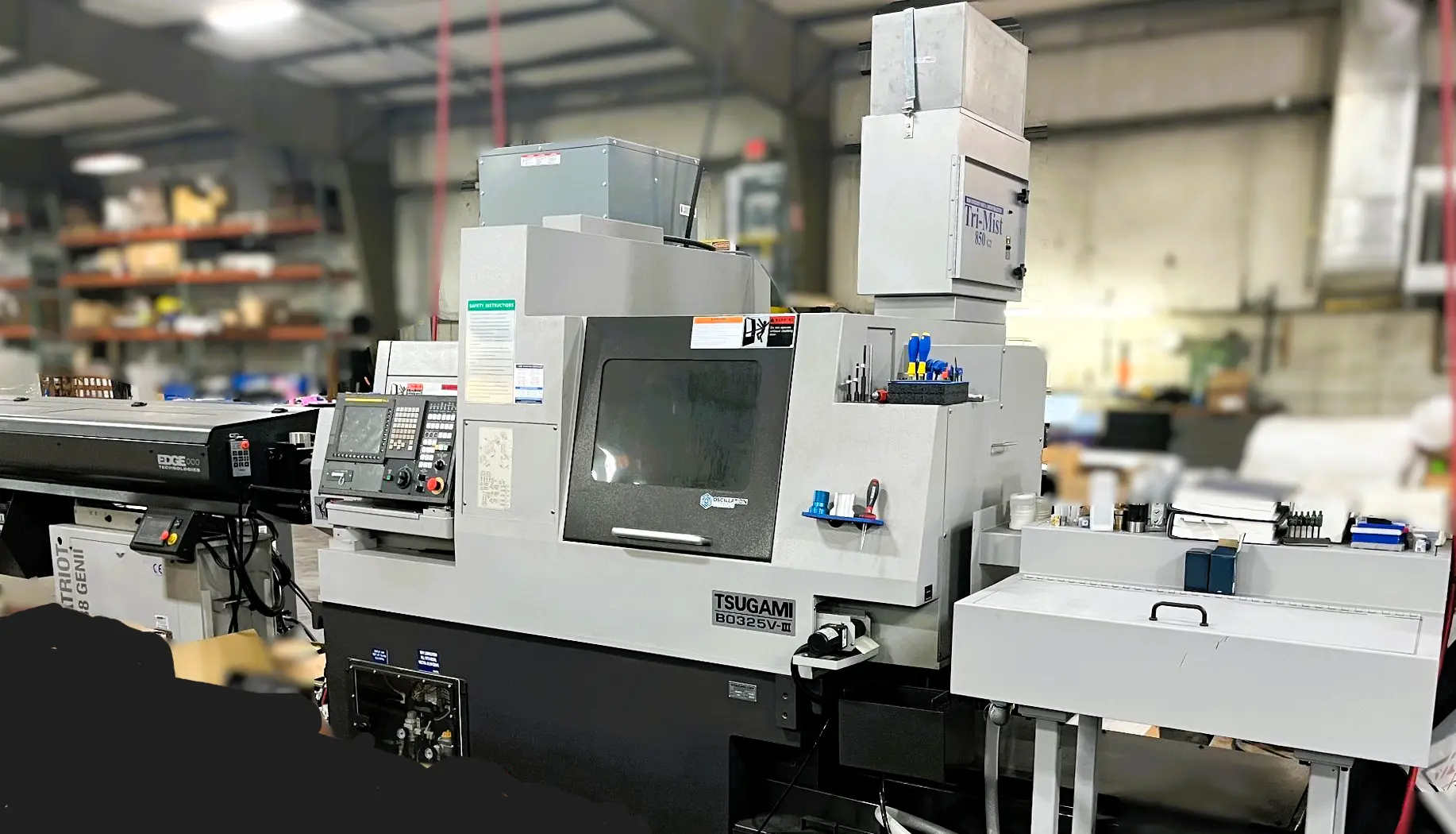

USED 2022 TSUGAMI BO325V-III

TSUGAMI BO325V-III CNC Swiss Lathe, New is 2022.
87 Cutting Hours!
Oscillation Cutting on X1 & Z1 Axes.
Edge Patriot 338.

General Specifications:
Number of Axes: 7 (X1,Y1,Z1,X2,Z2,C1,C2)

Chucking Bar stock Diameter: 8 - 32mm (0.31 - 1.25")
Max Machining Length: 330 mm (12.59" with Guide Bushing) 70mm (without Guide Bushing)
(w/ direct Drive Rotary GB)
Max Drilling Diameter: 12 mm (.47")
Max Tapping Diameter: M10
Max Back Spindle Chucking Diameter; 32mm (1.25")
Max Back Spindle Drilling Diameter: 10mm (.39")
Max Back Spindle Tapping Diameter: M10
Max Tool Spindle Drilling Diameter: 8mm (.31")
Max Tool Spindle Tapping Diameter: M6
Max Tool Spindle Slotting Diameter: 45mm (1.77")
Main Spindle Speed: 200 - 8000 rpm
Back Spindle Speed: 200 - 8000 rpm
Rapid Traverse Rate: 32 m/min (X1,Y1,Y2 24 m/min)

Tool Storage Capacity (std/max): 29
Stick Tool Size: 16 x 16 x 100mm
Tooling Configuration:
Live Cross Drills: 5
OD Turning Tools: 5
ID Tools (by sub spindle) 2 (op live tools)
ID/BW Tools: 8
BW Tools: 4 Fixed

Main Spindle: 3.7 / 5.5 kW
Back Spindle: 2.2 / 3.7 kW
Tool Spindle: 1.0 kW
Rotary Guide Bushing: 0.75 / 1.5 kW(direct drive GB)
X1: 0.5 kW
Y1, Z1, X2, Z2: 0.75 kW
Coolant Pump: 400 W
Lubricating Pump: 3 W

Power Requirements: 22.4 KVA
Air Requirements: 0.4 MPa or Above
Air Discharge rate: 100 NL/min
Coolant Tank Capacity: 190 L (47.5 gal)

Oscillation Cutting on X1 & Z1 Ax.es
Edge Patriot 338
Smart flex Guide Bushi11g System
Chucker Kit
Work Conveyor
Rear Work Ejection
Mist Pro 850 Mist Collection
Hepa Filter for Mist Collection
LNS Turbo MH Chip Conveyor
Patriot Light
MP 1 000psi High Pressure Water System Live Tool Besides Sub Spindle Polygon Turning Fu11dion
**87 Cutting Hours**
