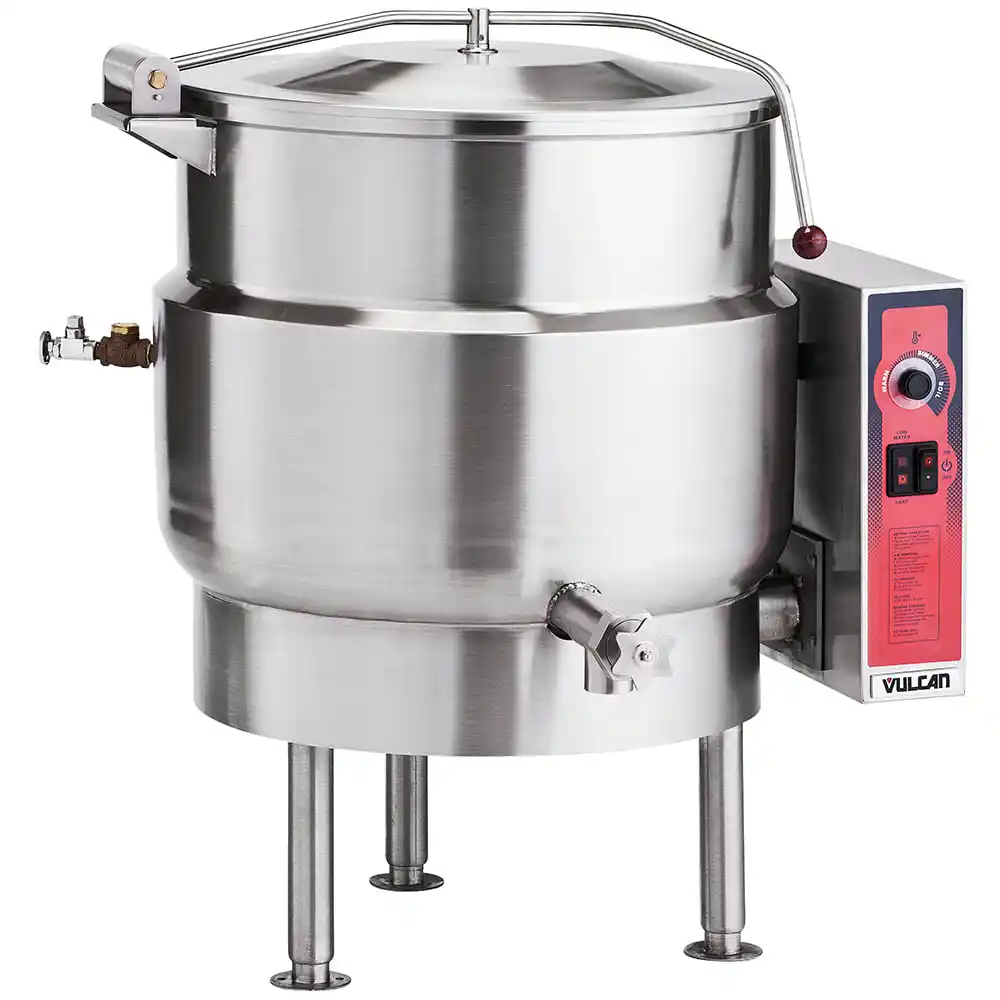

Vulcan K40EL 40 Gal Steam Kettle - Stationary, 2/3 Jacket, 208v/1ph
Overview
Description
The K40EL 2081 steam-jacketed stationary kettle from Vulcan features a 40-gallon capacity with both gallon and liter markings on the kettle's interior. The kettle is rated for 50 psi operation and includes a pressure relief valve and a vacuum/pressure gauge so operators can keep an eye on the kettle's conditions. Its solid-state temperature control dial and power switch are housed in a rugged, waterproof enclosure to protect vital electronic components.
Product Details
40-gal. capacity
2/3 jacketed
Formed, welded kettle liner features an ellipsoidal shape for strength
3/8 in. x 1 in. bar rim provides structural integrity
Gallon and liter marking on kettle interior operator convenience
Includes faucet bracket for conveniently-mounted faucet
Rated for up to 50 psi pressure
Stainless steel cover opens easily with spring-assist hinge and drop-down lift handle
Condensate ring around lid helps avoid potential messes
2-in. compression tangent draw-off valve with perforated strainer for easily emptying and cleaning kettle
Tubular, stainless steel legs and with flanged feet allow for stable installation and can be bolted down for safety
Low-water cutoff prevents damage from elements running while kettle is empty
Pressure relief valve prevents accidents from unsafe levels of pressure
Controls are sealed in watertight casing
208 V/60 Hz/1-ph, 18kW, must be hardwired by a qualified electrician
Overall Dimensions: 37 7/10 in. W x 35 1/4 in. D x 37 1/10 in. H
Easy-to-Use Controls
On/Off power switch
Power "On" Light
Solid-state temperature dial
Vacuum/Pressure gauge
"Low Water" light
Specifications
Manufacturer
Vulcan
Base
Tri Leg
Capacity (gallons)
40
Design
2/3 Jacket
Heat
Electric
Hertz
60
No. of Kettles
1
Phase
1
Product
Steam Kettles
Product Type
Cooking Equipment
Series
KEL Series
Tilt Mechanism
Stationary
Type
Floor Model
Voltage
208
Warranty
1-year Limited
Weight
255.00
Specifications
Manufacturer: Vulcan
Base: Tri Leg
Capacity (gallons): 40
Design: 2/3 Jacket
Heat: Electric
Hertz: 60
No. of Kettles: 1
Phase: 1
Product: Steam Kettles
Product Type: Cooking Equipment
Series: KEL Series
Tilt Mechanism: Stationary
Type: Floor Model
Voltage: 208
Warranty: 1-year Limited
Weight: 255.00
