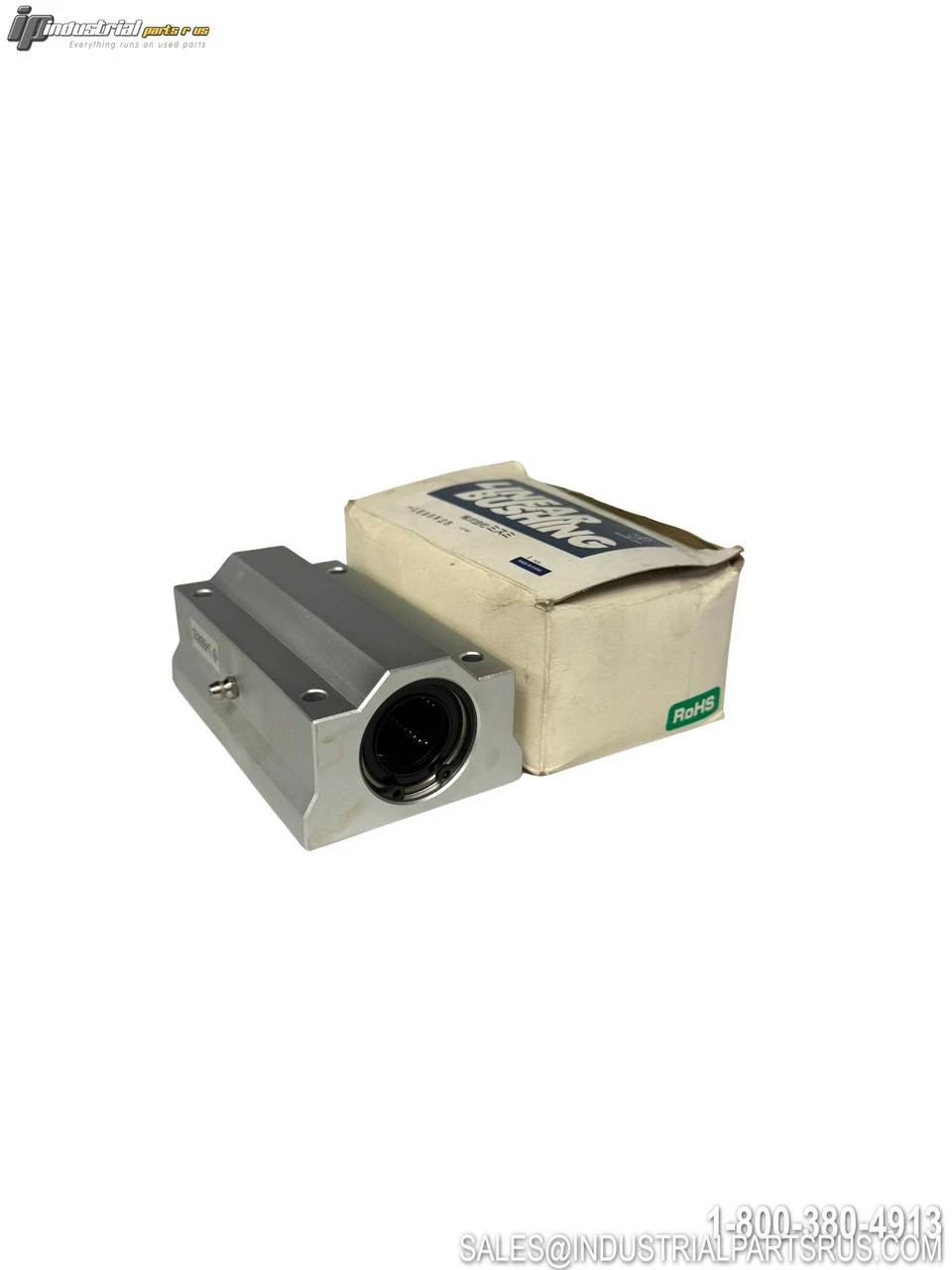

The Misumi LHBBW25 is a double, long, wide pillow block linear ball bearing designed for precision linear motion applications. This bearing block features four mounting holes for secure workpiece attachment and eliminates the need for custom housing fabrication, providing ready-to-install linear motion capability.
Specification
Value
Brand
Misumi
Model/Part Number
LHBBW25
Type
Pillow Block
Configuration
Double, Long, Wide
Shaft Diameter
25mm
Outer Diameter
40mm
Overall Length
130mm
Block Width
75mm
Outer Cylinder Material
52100 Bearing Steel Equivalent
Ball Material
52100 Bearing Steel Equivalent
Retainer Material
Plastic (Duracon M90 Equivalent)
Lubrication Type
No Grease (Rust Preventive Oil)
Mounting
4 Mounting Holes
We warranty all items for 30 days from date of purchase.
| Weight | 5.00 LBS | 5.00 LBS |
SKU: AI0374
UPC: 679523686185
Condition: New
Availability: In Stock
Weight: 5.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686185
Material: 52100 Bearing Steel Equivalent
Manufacturer: Misumi
Part Number: LHBBW25
Shelf: K-42
Bore Diameter: 25 mm
Model: LHBBW25
MPN: LHBBW25
Type: Pillow Block
