Robot and System Integration Package| 2 Zone IR preheat oven 142' Conveyor Length|

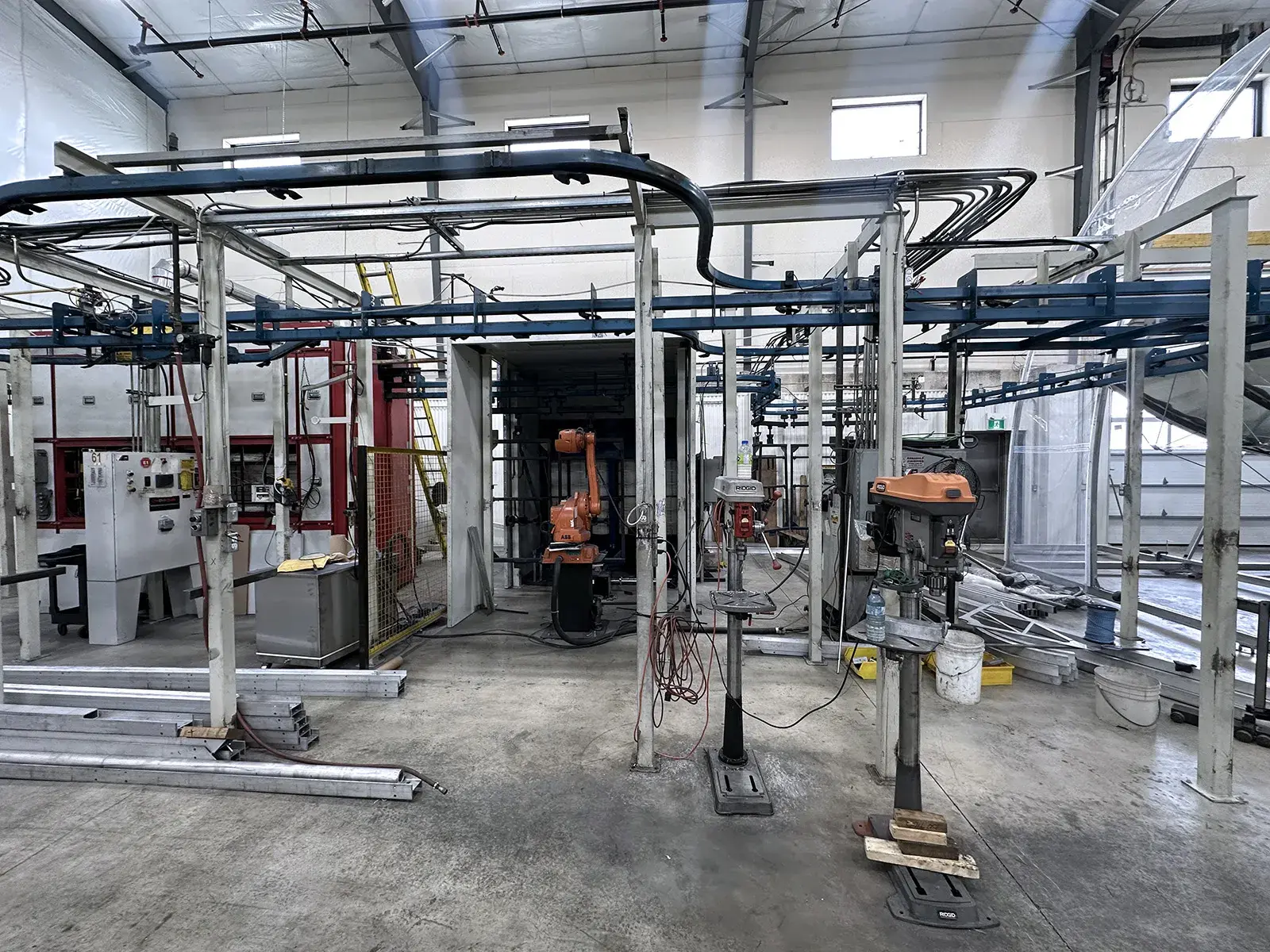

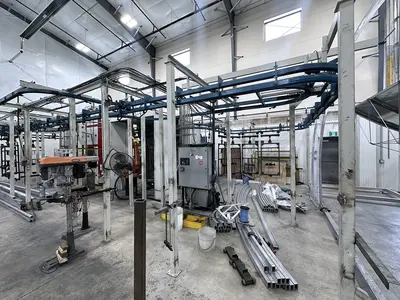

AFS Powder Coat Line with integrated ABB robot and QuikCommand PLC Type G-3 control is a fully automated finishing system designed for high-precision, uniform powder application. Ideal for automotive, furniture, and agricultural components, it delivers consistent coating thickness on complex parts. This system enhances durability, corrosion resistance, and production efficiency while reducing labor costs and improving overall finish quality.

Powder Spray Booth Dimensions: 8' x 8' x 11' (W x H x D)
Total Conveyor Length: 142'
CONVEYOR SPEED: 15 FPM
Oven Dimensions: 8'6" x 4'6" x 13' (H x W x L)
Product Opening Dimensions: 2' x 4' (W x H)
Thermal Input Capacity: 144,000 Btuh maximum input for each of two stations
Cata-Dyne catalytic gas infrared thermo-reactor emitter dimensions: 12" x 48" x 3.1" (T x L x D)
Voltage: 600 Volt, 3 phase, 60hz

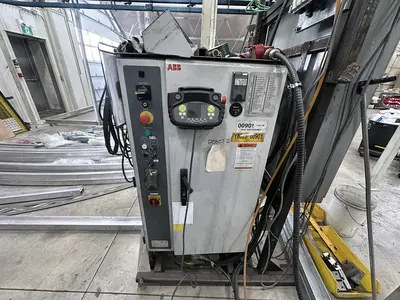

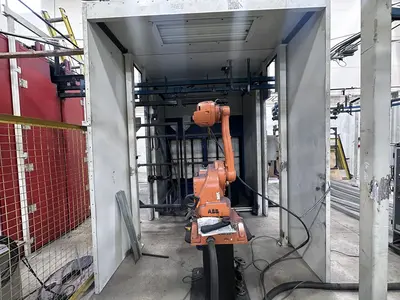

ABB Robot & System Integration Package
(2) non sparking Collector modules w/ (6) high efficiency air cartridges
(4) Final filters for reciruclating air
(1) 4' 4 tube light fixture
(10) part carriers (load bars) with part indexers
(6) Conveyor stops with integrated controls
Floor mounted conveyor support steel
(12) 12x48 Series G
high performance catalytic gas emitters

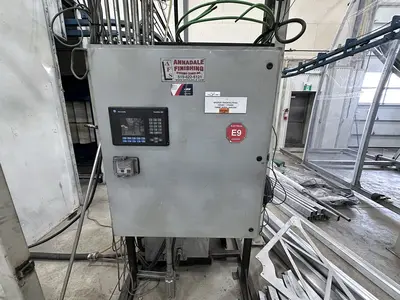

QuikCommand PLC Type G-3 Electronical Panel
Allen Bradley 1400 PLC
Manifold Gas Train Components
Zone Gas Train Components
Blowers and Ducting
