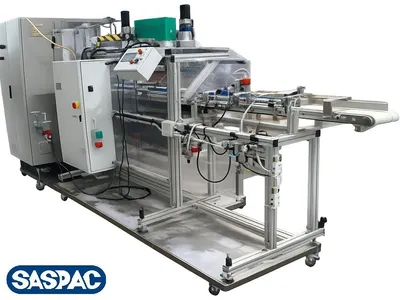

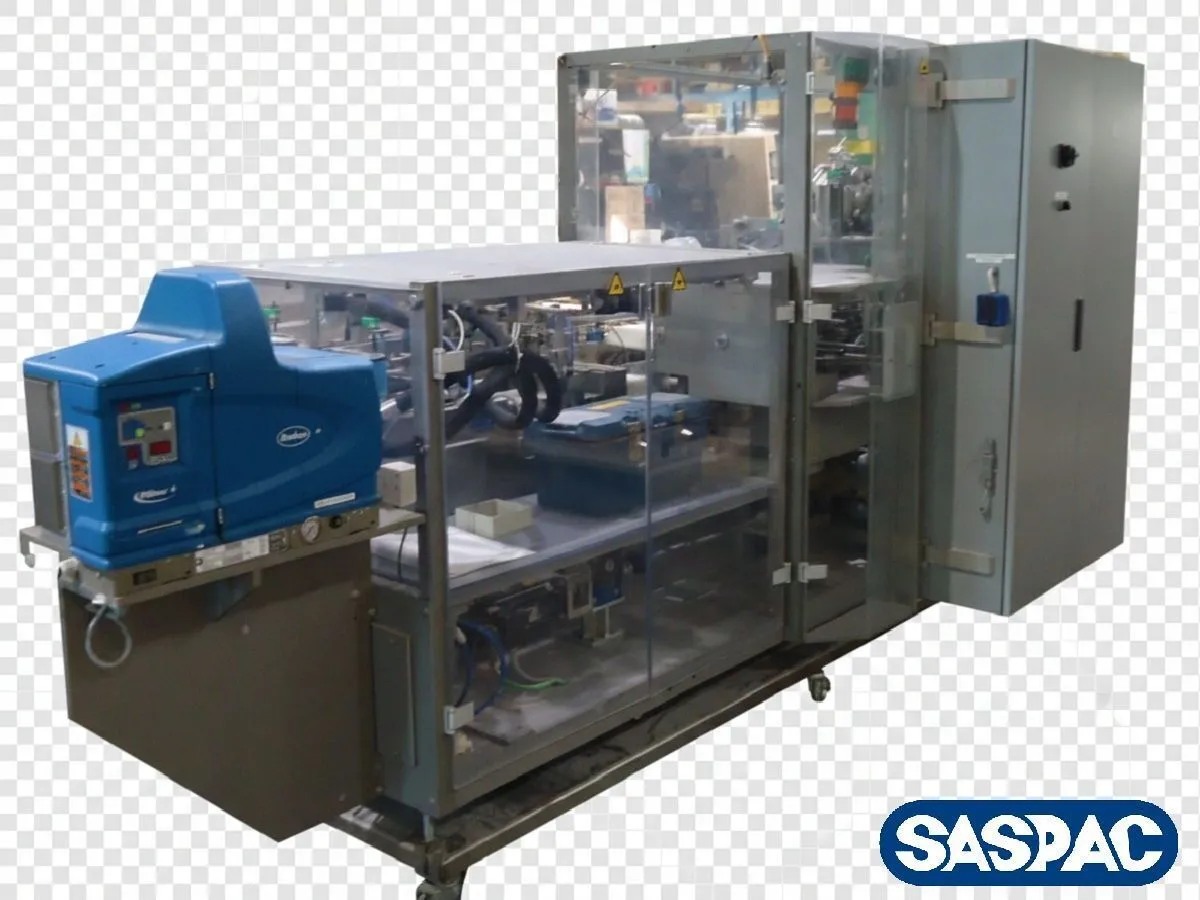

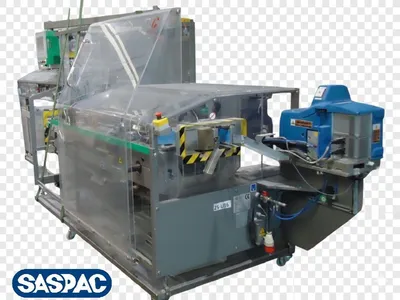

The refurbished MARCHESINI MA 255 is a continuous-motion horizontal cartoning machine built with a full balcony-style structure. Its design is based on three main principles: flexibility, operator comfort, and high performance within a compact overall size. Owing to these features, it is particularly well suited for packaging cosmetic and pharmaceutical products, as well as a wide range of similar items.The carton closure of the MARCHESINI MA 255 cartoning machine is set for tuck-in (reverse tuck) flaps, both double-sided offset or equilateral, but on request we can supply an hot melt system.
Technical specifications:
Continuous motion cartoning machines
Automatic operating cycle with carton pick-up only in the presence of the product.
Cross control of the presence of product-carton-leaflet.
Main mechanisms in oil bath, to reducing maintenance and noise level
Minimum load sensors for product-carton.
Correct carton opening checking device.
Mechanical pusher safety device
Mechanical overload control unit for the machine.
Complete safety guards with wide doors for easy access.
Vacuum pump.
Electronically interlocked safety covers.
Brand New Electrical Panel
Maximum Speed:
Up to 240 strokes per minute.
Product Sizes:
Length: from 65 to 150 mm.
Width: from 25 to 100 mm.
Thickness: from 15 to 85 mm.
Optional:
Automatic Feeder
Customized size group
Hot melt system
