USED 2013 KOMATSU PRESS OBS 110-61

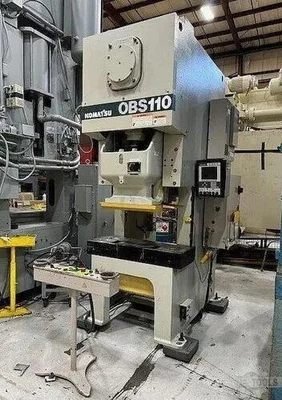

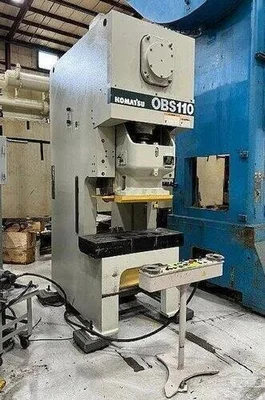

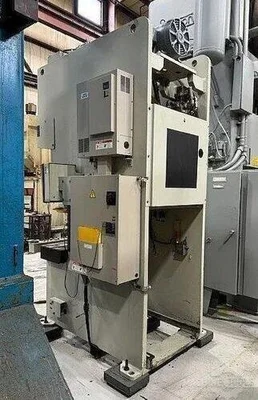

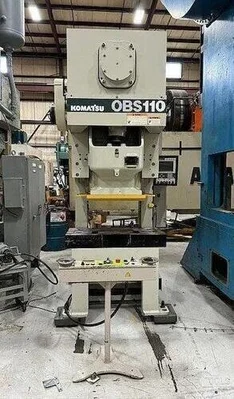

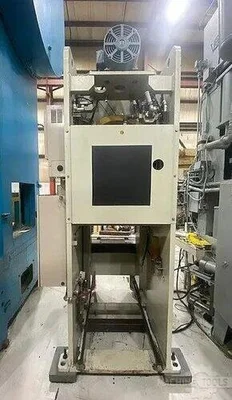

110 ton Komatsu Single Crank Gap Frame Press Model OBS-110-61, Year 2013

Tonnage: 110
Stroke: 5.91 inches
Shut Height: 20.9 inches
Adjustment: 3.94 inches
Bed Size: 43.3" LR x 16.1" FB
Ram Area: 24.4" LR x 15.9
SPM: 36-72 VSPM

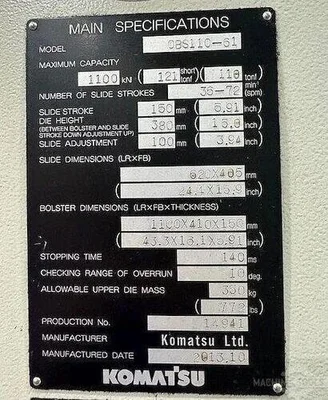

Standard SpecificationsKomatsu OBS Mechanical PressSingle Point Gap Model OBS110-61Serial Number: 14941, Year New 2013110 ton Metric Capacity121 ton US Capacity5.9" Stroke15" Die Height Over Bolster20.9" Shut Height Over Bed3.94" Motorized Adjustment43.3" LR x 16.1" FB Bed Area24.4" LR x 15.9" FB Slide Area36-72 VSPMEquipment and Features
Air Clutch and Brake (Wet Type)
Keyless Splined Eccentric Main Shafts
Air CounterbalancesHydraulic Overload Protection

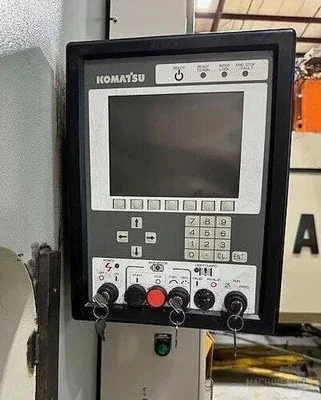

SIT-IV Press Conrol System- Komatsu Controls
Includes Job Memory
Pre Designed Expansion Capability for On Board Automation
Precision Helical Gearing
Plunger Guided Slide
Trabon Recirculating Lube System
Motorized Slide Adjustment
AC Inverter DriveThis Late Model Komatsu OBS Mechanical Press is an industrial workhorse and CAN BE SEEN UNDER POWER IN THE S&G PRESS WAREHOUSE.With a capacity of 110 Metric tons, this press can handle a wide range of metalworking tasks, from stamping simple parts to forming complex components. Its robust construction and advanced features ensure precision, reliability, and efficiency in all manufacturing environments.Komatsu Presses For Sale, OBS / Gap Frame Single Crank Mechanical Metal Stamping Press For Sale, 110-ton Presses For Sale
