NEW STAUFF SE-070H10B/4
Overview
Description

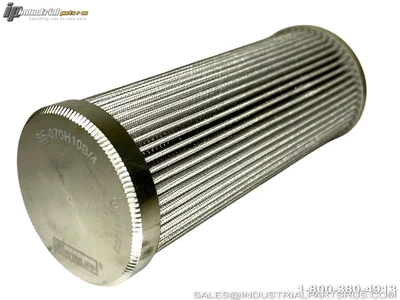

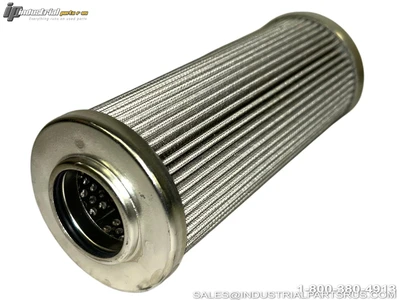

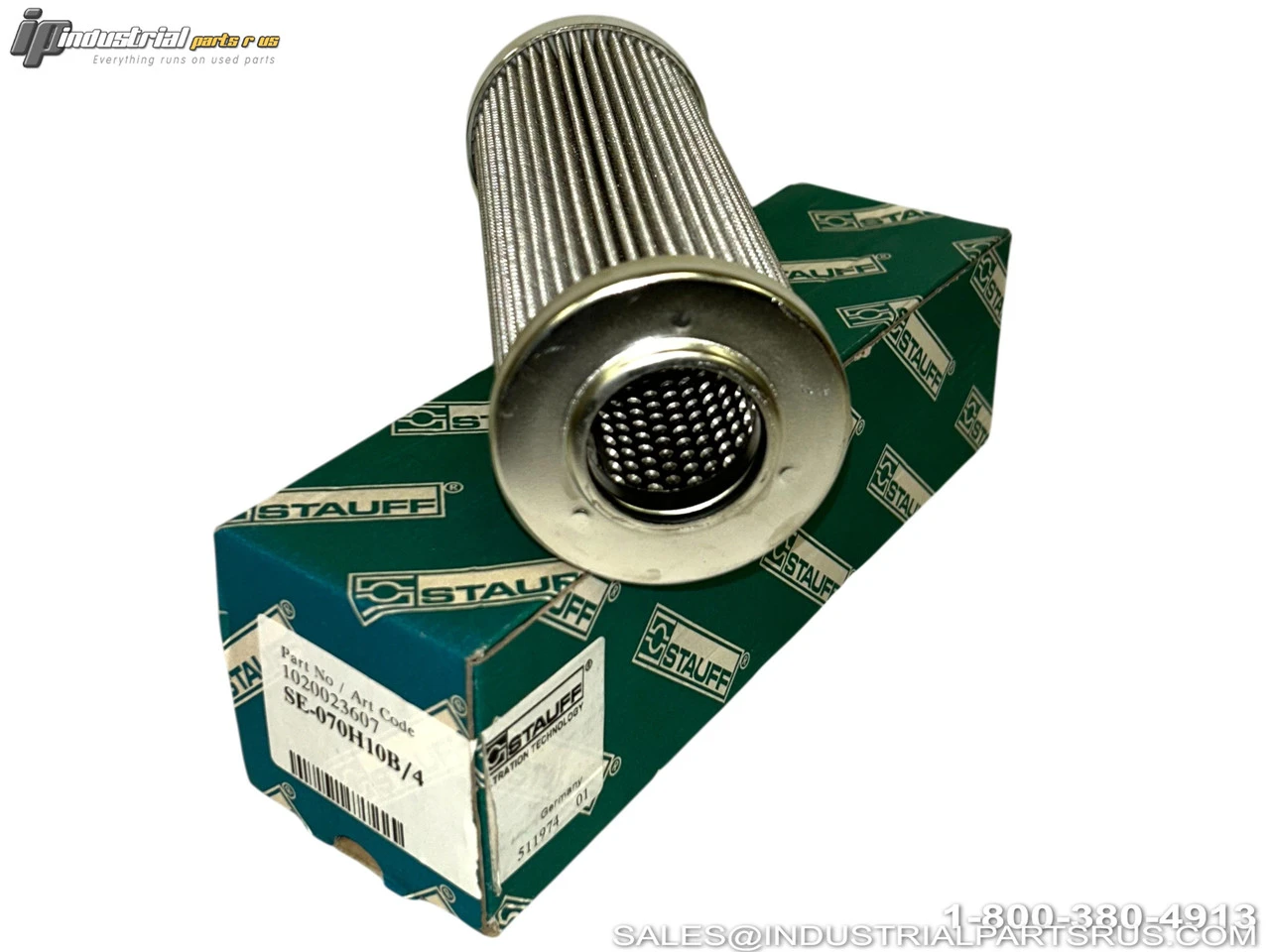

The Stauff SE-070-H-10-B/4 is a high-performance replacement hydraulic filter element designed for pressure filter applications. This element features inorganic glass fiber media for superior contaminant removal and is compatible with SF series filter housings including SF, SF-TM, SF-SM, SFZ, and SFA models.
Specification
Value
Brand
Stauff
Model/Part Number
SE-070H10B/4
Application
Hydraulic Pressure Filters
Micron Rating
10 µm
Filter Material
Inorganic Glass Fiber
Outer Diameter
69 mm
Inner Diameter
34.2 mm
Length
175 mm
Sealing Material
NBR (Buna-N)
Beta Ratio
>200
Group Size
070
Flow Rate
240 L/min (70 GPM)
Max Operating Pressure
420 bar (6000 PSI)
Collapse Differential
210 bar (3045 PSI)
Stauff Material Number
1020023607
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 3.00 LBS | 3.00 LBS |
|---|
SKU: AI0326
UPC: 679523686185
Condition: New
Availability: In Stock
Weight: 3.00 LBS
Width: 10.00
(in)
Height: 8.00
(in)
Depth: 12.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686185
Manufacturer: Stauff
Part Number: SE-070H10B/4
Shelf: K-49
Model: SE-070H10B/4
MPN: SE-070H10B/4
Type: Hydraulic Filter Element
