USED 2000 AIDA-AMERICA NC2-160 (1) DOUBLE CRANK GAP PRESS
Overview
160 Ton Aida NC2-160-1 Used Double Crank Gap Mechanical Press For Sale
Specs
Tonnage: 160
Stroke: 5.12 inches
Shut Height: 17.72 inches
Adjustment: 3.9 inches
Bed Size: 80.3" LR x 23.6" FB
Ram Area: 59" LR x 22.8" FB
SPM: 40-85 VSPM

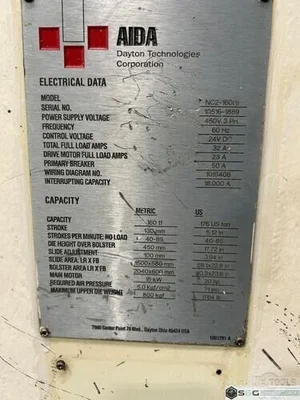

Standard SpecificationsUsed Aida Press Model NC2-160 (1)Double Crank Gap Mechanical PressSerial Number/ 10516-1889160 ton Capacity (Metric)176 - ton Capacity US5.12" Stroke22.9" Shut Height on Bed17.72" Die Height on Bolster3.94" Motorized Adjustment80.2" LR x 23.6" Bed Area59" LR x 22.8" FB Slide Area40-85 VSPMEquipment and FeaturesCrank Motion 2 Point PressAir CounterbalancesRecirculating Lube SystemAida Wet Clutch and Brake6-Point Full Length Bronze Hydraulic OverloadsT-Slotted Ram and Bolster PlateBlack Max Link Lite Light CurtainsAida Press Controls with Panel View Touch Screen6.5" Bolster PlateVibro Dynamic Floor Pads1764 Max Upped Die Weight20 HP Main Motor460v / 3PH / 60 HzFlush Floor Mount
Max. Overall Height 10' 2" Tall
Used Metal Stamping 160 ton Aida Double Crank Gap Press can be inspected in the S&G Press Livonia Michigan Warehouse!!This used 160 ton Aida double crank gap mechanical metal stamping press for sale is a robust and reliable machine, model NC2-160-1. Known for its precision and durability, this Aida press is a cost-effective solution for a variety of metal stamping applications. The double crank gap press design offers stability and even distribution of force across the die area. This specific used Aida 160 ton press has been inspected and is ready to enhance your production capabilities. Contact us today for a detailed specification sheet and a competitive quote on this used Aida press for sale.
Used Double Crank Gap Mechanical Metal Stamping Press / Aida Stamping Press For Sale / 150 & 160-ton Presses For Sale / Used Presses For Sale
