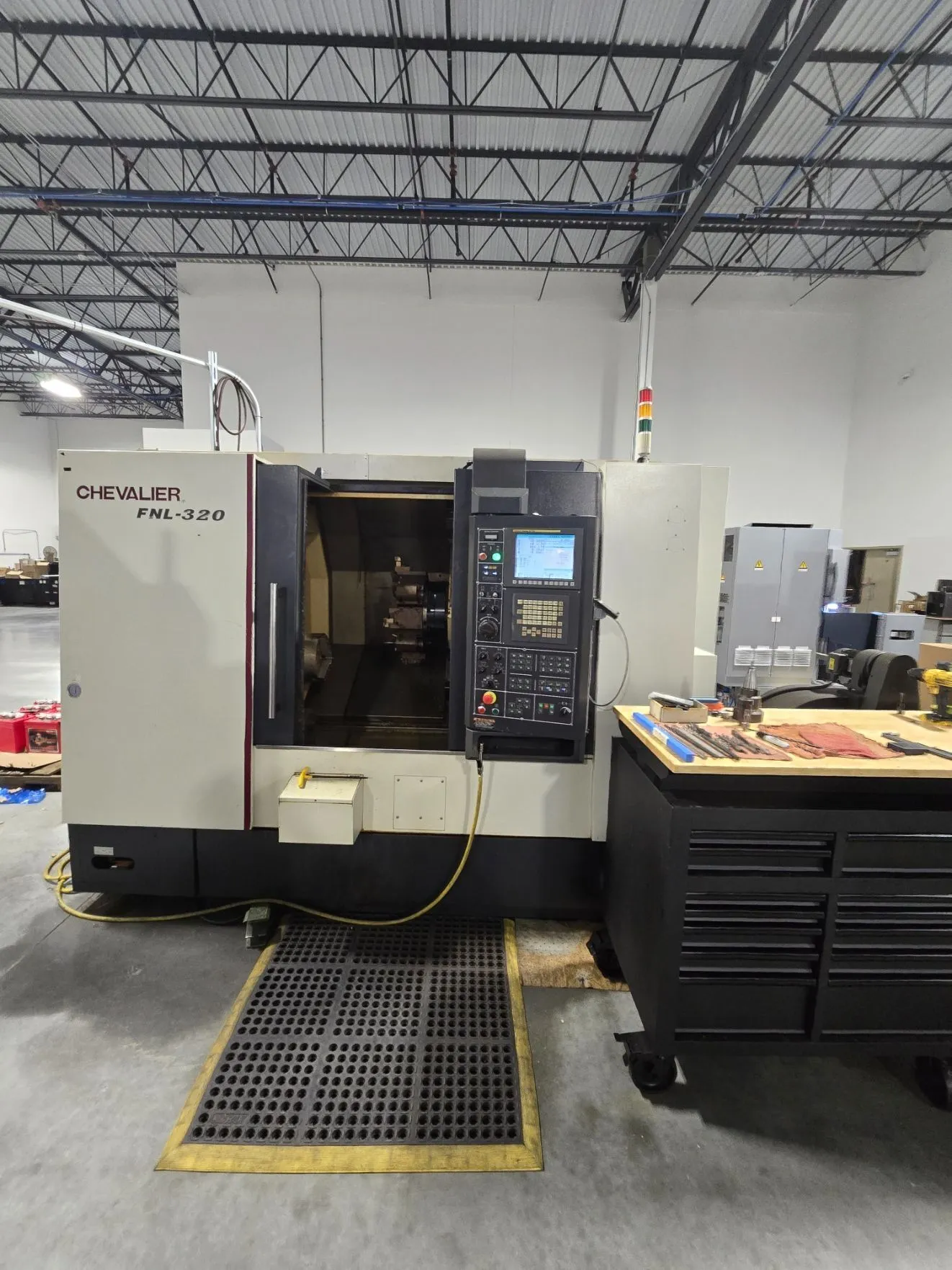

USED 2011 CHEVALIER FNL-320Y
Overview
Description
In plant and under power!
Specifications
| # Axis | 5 | 5 |
|---|---|---|
| Swing | 23.6" | 599.44 mm |
| Machining Length | 21.9" | 556.26 mm |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 2.5" | 63.5 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 3,500 RPM | 3,500 RPM |
| Turning Dia | 23.6" | 599.44 mm |
| Tailstock (Yes/No) | Yes | Yes |
| Control | CNC | CNC |
| Dimensions | 3800mm x 1800MM x 2200mm high | 3800mm x 1800MM x 2200mm high |
| Weight | 5,800 kgs. | 5,800 kgs. |
ONE USED CHEVALIER 5-AXIS CNC LATHE
Model: FNL-320Y
Swing: 600mm
Max. cutting diameter: 460mm
Max. cutting length: 280mm
Max. bar capacity: 77mm
Spindle nose: A2-8
Chuck size: 10”
Spindle RPM: 3500
Spindle HP: 11/15kw
Spindle hole diameter: 88mm
Travels: X,Z,Y: 24mm xx 30mm x 110mm (+/-55mm)
Turret: 12 stations, all live mill capable
Live milling rpm: 4,000
Dimensions: 3800mm x 1800mm x 2200mm high
Weight: 5,800 kgs
Equipped with:
Fanuc Oi-TD controls
10” 3-jaw chuck
Tool setter
Tail stock
Coolant
Chip conveyor
Live tools
Static tools
Parts catcher
Manuals
Location: In Southern, WI plant and under power.
SN: G1110401, New July 2011
Hours: ON: 16,233 $38,500.00
