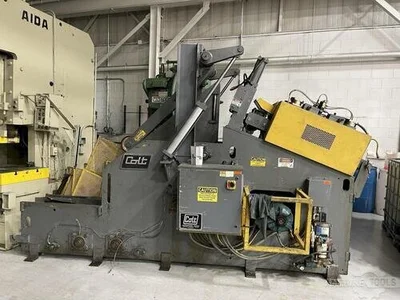

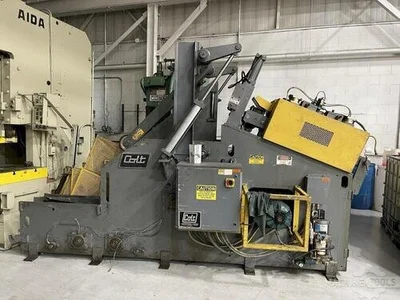

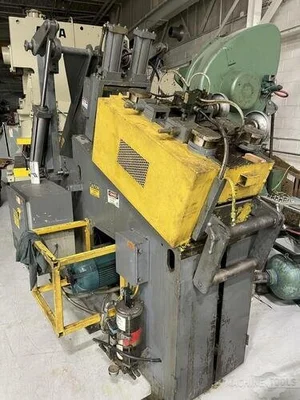

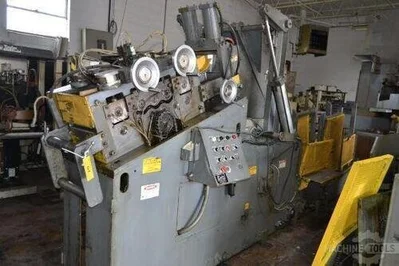

USED 2004 COLT AUTOMATION CSHCE-80-12

8,000 lbs. x 12" Wide Colt Used Coil Cradle Straightener For Sale, Model# CSHCE-80-12

Coil Weight: 8000 pounds
Coil Width: 12 inches
Coil Thickness: .190 inches

Standard Specifications:Used Colt Coil Cradle Straightener Model CSHCE-80-12
Coil weight capacity: 8,000 Lbs.
Coil width capacity: 12"
Stock thickness capacity: .190" x 12" Wide
Stock thickness capacity: .250" x 06" Wide Minimum Material Thickness: .080"
Coil O.D. capacity: 60"

Colt Coil Cradle Straightener Combination Uncoiler Equipment and Features:
Entry and exit coil cradle straightener pinch rolls x 5" diameter
Air operated upper entry and exit pinch roll adjustment

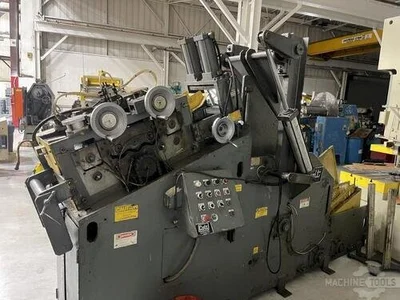

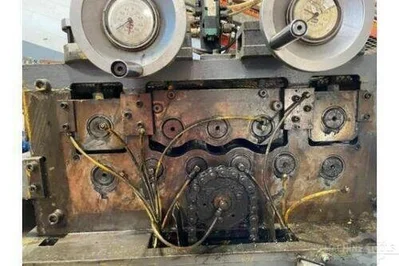

Seven coil cradle straightening rolls x 4" diameter
Bank type upper straightening roll adjustments
Inclined coil cradle straightening head
Adjustable stock width edge guides
Air operated entry coil end-debender
Air operated coil hold down arm
Exit cascade loop support rollers
Adjustable coil side plates
Coil storage rack
Outboard air pressure regulators and gauges
Operator's control console60' Per Minute Maximum Line Speed
Jog forward and reverse
Auto / Run cycle
Loop controlThis Used Metal Stamping Colt Coil Feed Equipment Coil Cradle Straightener can be seen under power in the S&G Press Livonia Michigan Warehouse! Colt Automation Top-mounted coil cradle straighteners save floor space and streamline material flow. They offer precise straightening for heavy-gauge materials, enhancing part quality. Their elevated design improves safety by reducing ground-level obstructions and simplifies coil loading and threading, boosting overall production efficiency. Used Coil Cradle Straightener For Sale, Quality Used Coil Feed Equipment For Sale, Used Presses and Coil Feed Equipment
