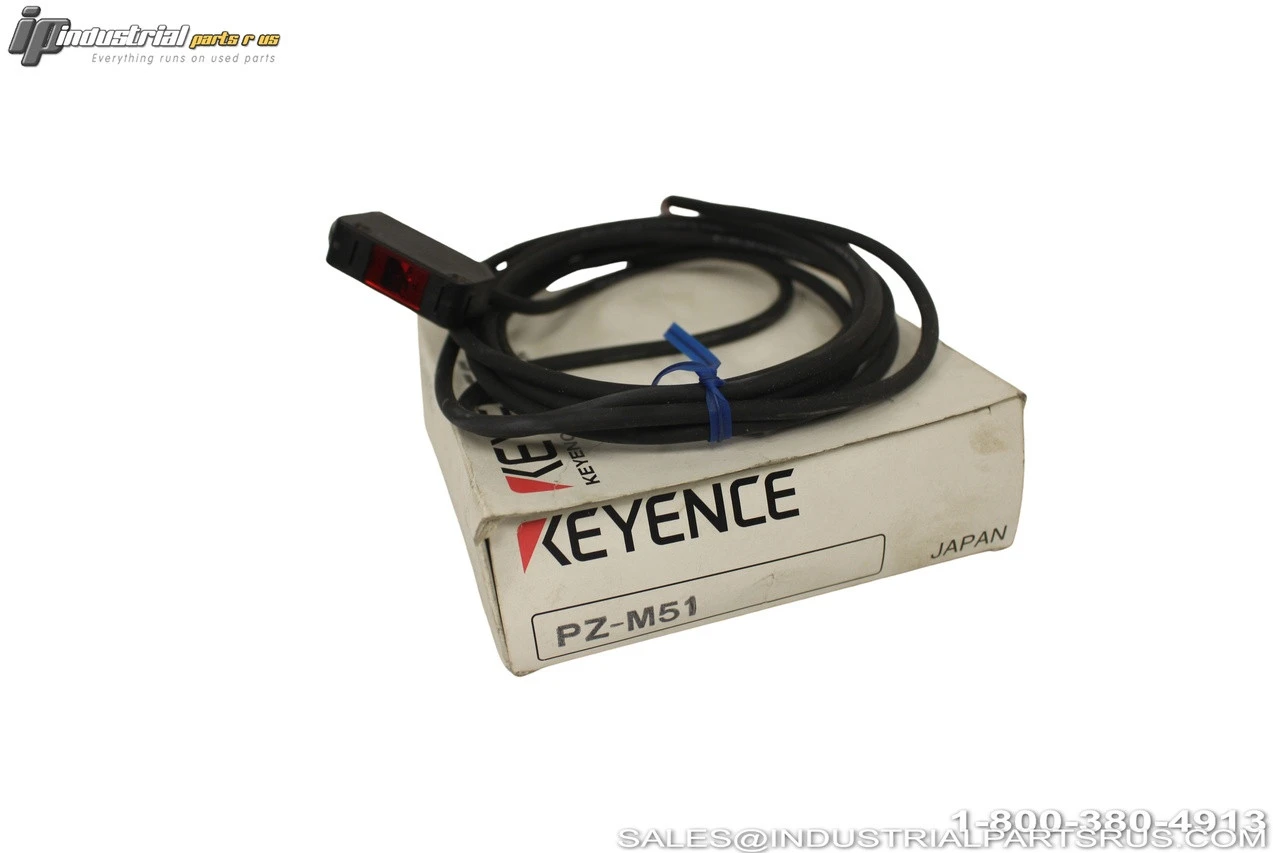

NEW KEYENCE PZ-M51

This listing is for the RECEIVER ONLY. The emitter is NOT included.
The KEYENCE PZ-M51 is a built-in amplifier photoelectric sensor featuring square transmissive cable type design with NPN output configuration. This through-beam sensor is designed for industrial automation applications requiring reliable object detection with high performance and easy installation.
Specification
Value
Brand
KEYENCE
Model/Part Number
PZ-M51
Product Type
Through Beam Sensor
Series
PZ-V/M
Sensor Type
Photoelectric
Configuration
Square Transmissive Cable Type
Output Type
NPN
Power Voltage
12-24VDC ±10%
Cable Length
2M
Response Time
1.5 ms max
Control Output
100 mA (24V) max
Residual Voltage
1V max
Power Consumption (Transmitter)
24 mA max
Power Consumption (Receiver)
27 mA max
Operating Temperature Range
-20 to +55°C (-4 to 131°F)
Connection Type
Cable
Operating Mode
Light-ON/Dark-ON (Switch-Selectable)
Protection Circuit
Reverse Polarity, Overcurrent Protection, Surge Absorber
Weight
0.26 lbs
We warranty all items for 30 days from date of purchase.

SKU: AI0314
UPC: 679523686185
Condition: New
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
Country/Region of Manufacture: Japan
GTIN: 679523686185
Output Type: NPN
Sensor Type: Photoelectric
Manufacturer: Keyence
Part Number: PZ-M51
Shelf: K44
Model: PZ-M51
MPN: PZ-M51
Type: Through Beam Sensor
