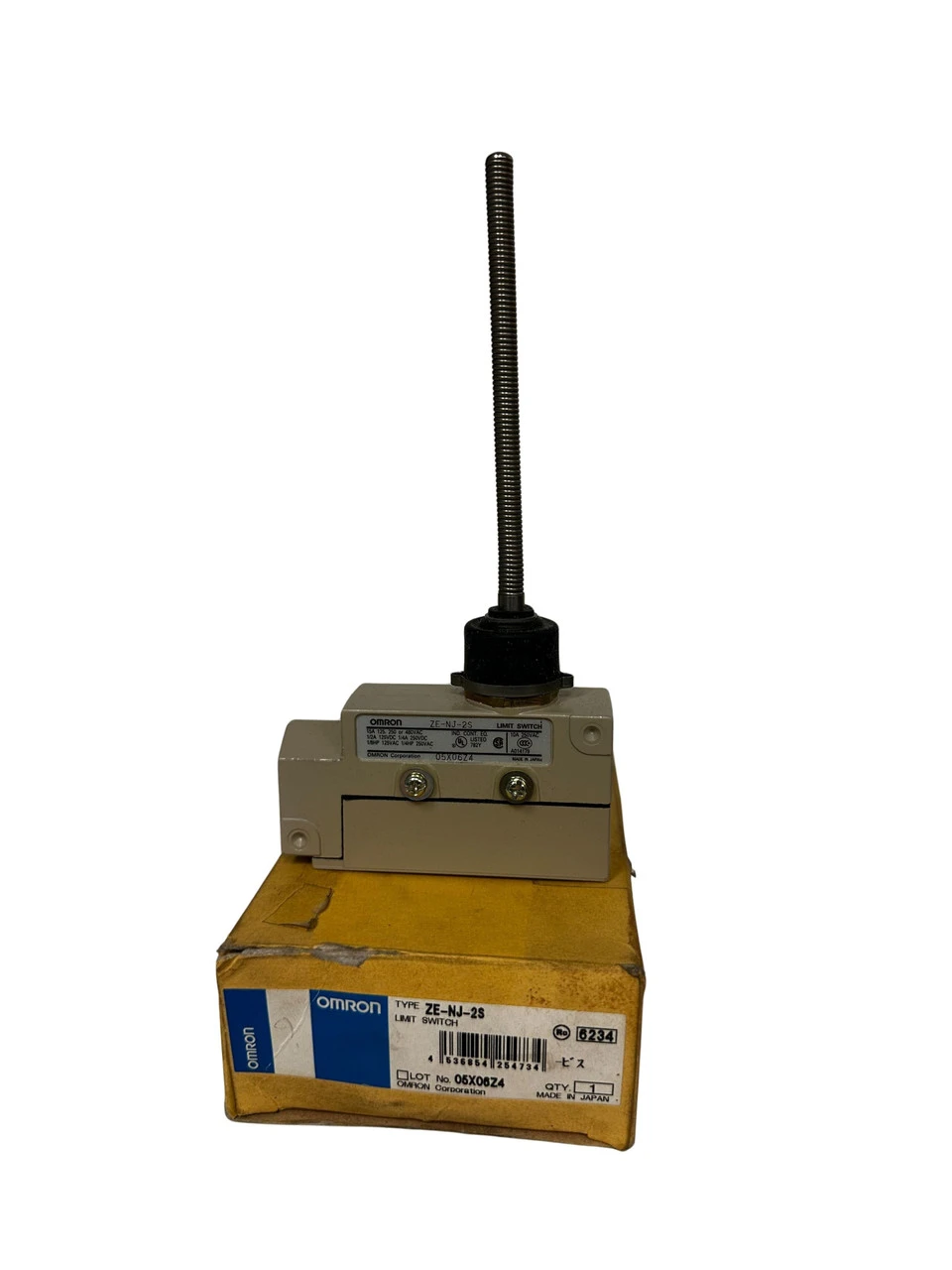

NEW OMRON ZE-NJ-2S

The OMRON ZE-NJ-2S is a heavy-duty enclosed limit switch from the ZE series, designed for industrial applications requiring reliable switching performance. This single-pole double-throw (SPDT) side-mount sealed limit switch features a coil spring actuator and rugged die-cast housing. The ZE series offers large breaking capacity and long service-life with a minimum mechanical life of 10 million operations.
Specification
Value
Brand
OMRON
Model/Part Number
ZE-NJ-2S
Series
ZE Series
Contact Configuration
SPDT (1NO 1NC)
Current Rating AC
15A
Voltage Rating AC
125-480VAC
Voltage Rating DC
125-250VDC
Actuator Type
Sealed Coil Spring (Wobble Stick)
Actuator Location
Top
Operating Force
1.47N (0.31 lbf)
Contact Resistance
15 Milliohms Max
Mechanical Life
10 Million Operations
Operating Temperature
-10°C to +80°C
NEMA Rating
1, 2, 3, 4, 5
IP Rating
IP65
Connection Type
1/2-14 NPSM
Mounting Type
Side Mount
Housing Material
Die-Cast Zinc
Mounting Hole Pattern
25.4mm
Actuator Length
4.55 inches
Body Dimensions
3.39" W x 1.75" H x 1.01" D
Pre-Travel
15 degrees
Certifications
UL, CSA, RoHS
We warranty all items for 30 days from date of purchase.

SKU: AI0319
UPC: 679523686185
Condition: New
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
Country/Region of Manufacture: Japan
GTIN: 679523686185
Manufacturer: Omron
Enclosure Type: 1, 2, 3, 4, 5
Part Number: ZE-NJ-2S
Shelf: K-45
Model: ZE-NJ-2S
MPN: ZE-NJ-2S
Type: Limit Switch
