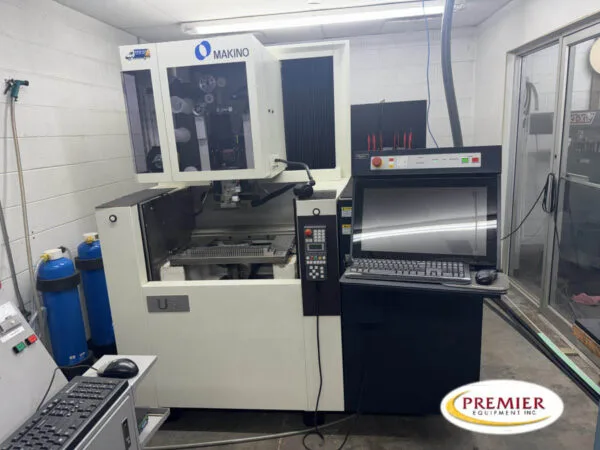

Makino U3 Wire EDM – 2018

The Makino U3 Wire EDM provides an ideal mix of speed, accuracy, and surface finish capability to tackle the most demanding applications.  The machine utilizes a stationary work table design that delivers repeatable accuracy regardless of work piece size or weight.  Excellent access to the work tank is provided through the pneumatic raise and fall front door, and the operator can access the underside of the work piece or lower machine head even with a large work piece on the table.

Table: 4-Sided 630 × 450 mm   / 24.8” x 17.71”
X: 370 mm  / 14.56”
Y: 270 mm  / 10.6”
Z: 220 mm / 8.66”
U-Axis: ±50 mm
V-Axis: ±50 mm
Maximum Workpiece: 770 × 590 × 220 mm / 30.3” x 23.22” x 8.66”
Maximum Workpiece Weight:   600 kg / 1322 lbs
Tank Size:  790 × 611 mm / 31.1” x 24.06”
Available Wire Size: 0.100mm, 0.150mm, 0.200mm, 0.250mm, 0.300mm ø
