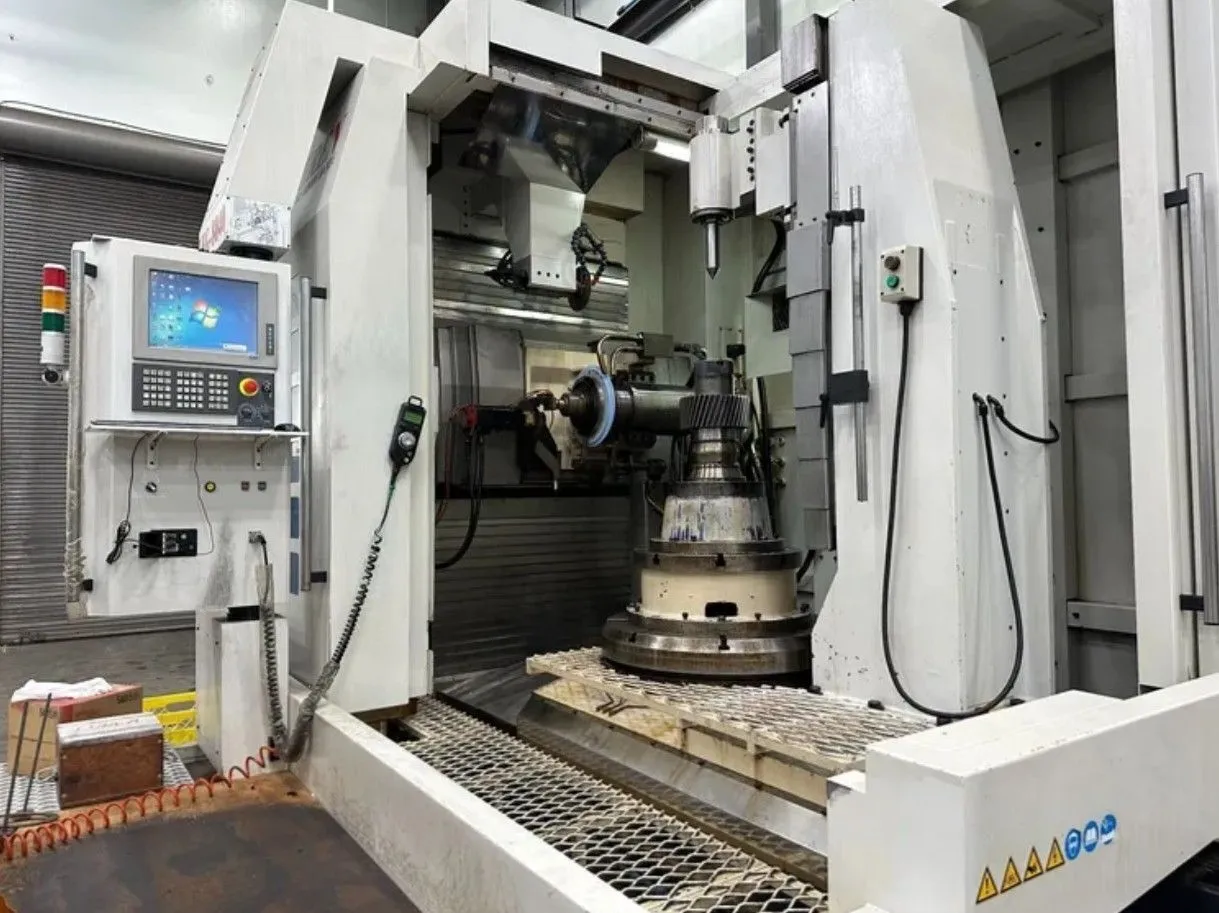

Luren Vetical CNC Profile Form wheel Gear grinding Machine
| Spindle Orientation | Vertical | Vertical |
| Max Gear Dia. | 31.4" | 797.56 mm |
| Max Module | 1.27 DP | 1.27 DP |
| Max Diametral Pitch | 20 | 20 |
| Grinding Slide Travel | 22 in | |
| Table Diameter | 29.1 in | |
| Max Table Load | 5500 lb | |
| Tailstock Center Height | 49 in | |
| Max Wheel Diameter | 15.7 in | |
| Grinding Wheel Speed | 4000 rpm | 4,000 RPM |
| Control | CNC (Fanuc 31) | CNC (Fanuc 31) |
| Weight | 37,000 lbs | 37,000 lbs |
Fanuc 31 cnc controls for 8 axis
CNC dressing unit
On-Board inspection
Wheel flanges
Tailstock , with swing away center
Probe unit
Full retractable guarding
Filtration unit
Chart recording unit
Manuals
