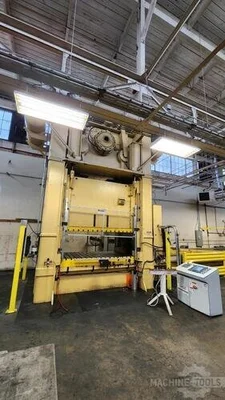

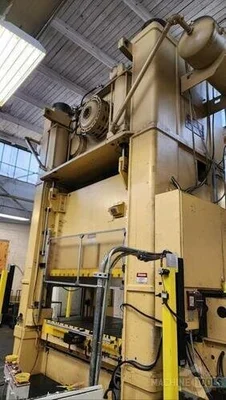

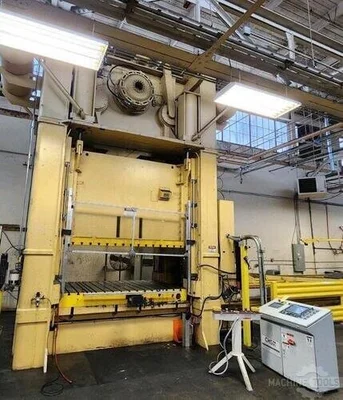

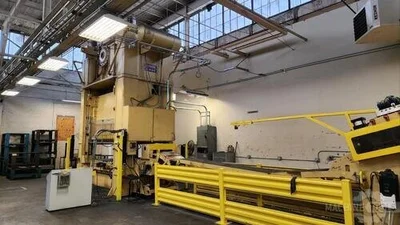

USED 1990 NIAGARA SE2-800-96-60

800 ton Niagara Model# SE2-800-96-60, Straight Side Mechanical Metal Stamping Press For Sale, Rebuilt 2020

Bed Size: 96 x 60
Tonnage: 800
Stroke: 12 inches
Shut Height: 35 inches
Adjustment: 18 inches
Ram Area: 96 x 60
SPM: 15-30 VSPM

Standard SpecificationsUsed Niagara Press Model SE2-800-96-60
800 Metric Tons
880 US Tons @ 1/2" off Bottom
12" Stroke
35" Shut Height
18" Motorized Adjustment
96" LR x 60" FB Bed Area
96" LR x 60" FB Slide Area
15-30 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster
9" Thick BolsterFree Standing Console Control StandUpdated Wintriss Palm Button StationUpdated Wintriss Press ControlsUpdated Wintriss Die ProtectionBlack Max Light Curtains Front and BackUpdated Graco Lube Pump and MotorAir Cushion
Set of Vibration Isolation Levelers (RFM-1265-90)
Hydraulic Tie Rods nuts
Allen Bradley AC Variable Speed Drive Model 1336
43" Wide Windows
Flush Floor Standing Design

** All of the following work was performed with the last 32 Months: Clutch/Brake Assembly Rebuilt, Rebuilt Slide, Replaced Main Bushings and Air CounterbalancesThis Used 880 ton Niagara Press can be seen under power upon request at S&G Press.Click here to see 800-ton Mechanical Press options.

This 800-ton Niagara press is excellent for various metal stamping tasks due to its rigid straight side frame ensuring accuracy. Its high tonnage capacity handles demanding jobs, while the 96" bed accommodates bigger dies. 8 Point Gibbing and air counterbalances enable smooth, high-speed operation. Niagara's versatility and reliable performance make this a strong choice for any stamping operation.

Used Straight Side Mechanical Metal Stamping Press For Sale. Used Press, Niagara Presses
This used 880-ton Niagara press is a powerful and versatile machine for serious metal stamping operations. Its robust construction and modern features, including an updated Wintriss press control system, Wintriss Die Protection, and Black Max light curtains, ensure both safety and precision. The 96" x 60" bed accommodates large dies, while the Allen Bradley AC Variable Speed Drive provides flexibility for various applications. When you buy from S&G Press, you're not just getting a machine—you're getting a fully inspected, high-quality asset. Our expert reconditioning and transparent process, including the ability to see the press under power, give you complete confidence in your investment. Choose S&G Press for reliable, cost-effective machinery that boosts your production.
